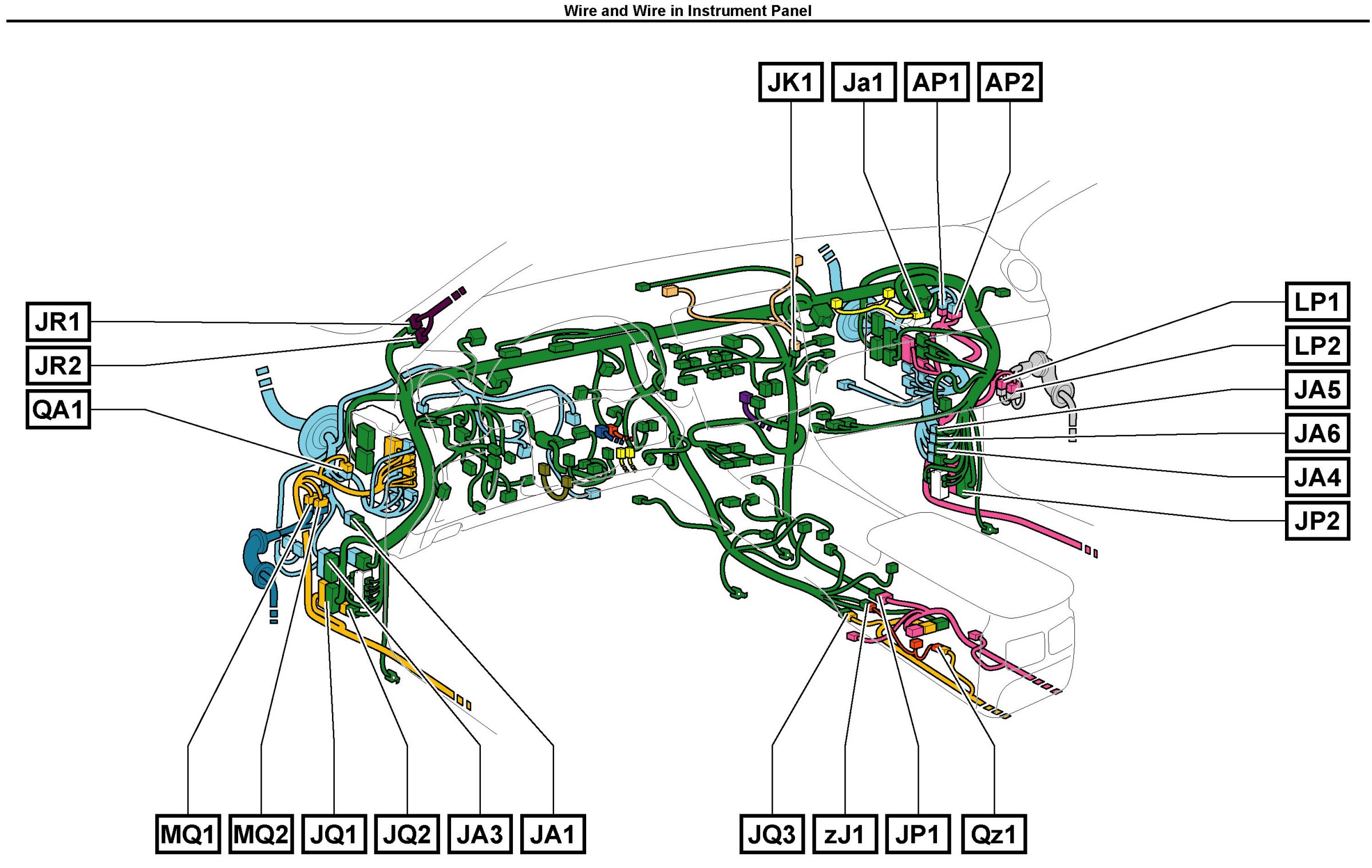

Wire and Wire In Instrument Panel
Wire and Wire In Instrument Panel
AP1-zJ1:
AP1-JK1:

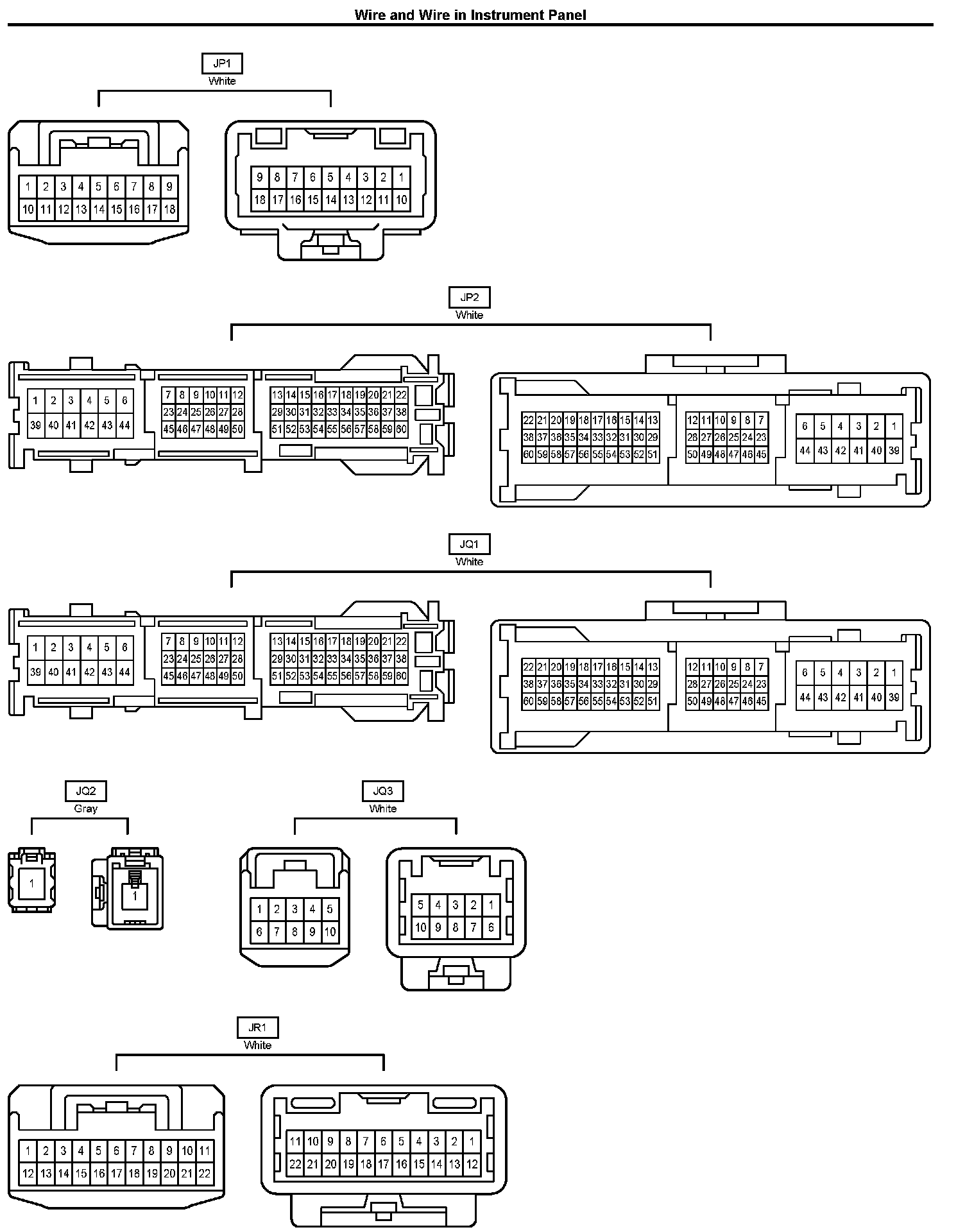

JP1-JR1:

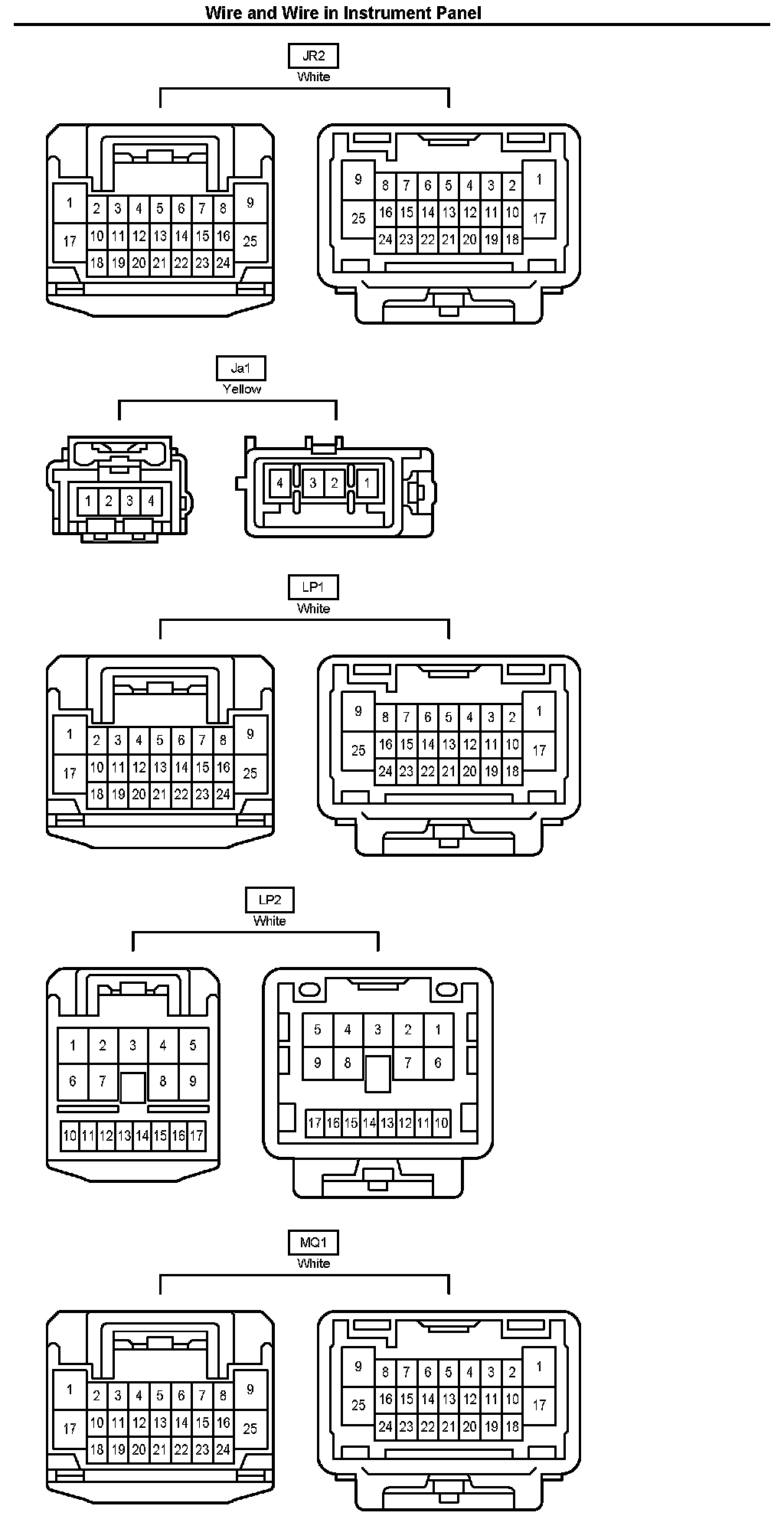

Ja1-MQ1:
MQ2-zJ1:
