Pinout Values and Diagnostic Parameters

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: TERMINALS OF ECU

1. COMBINATION METER

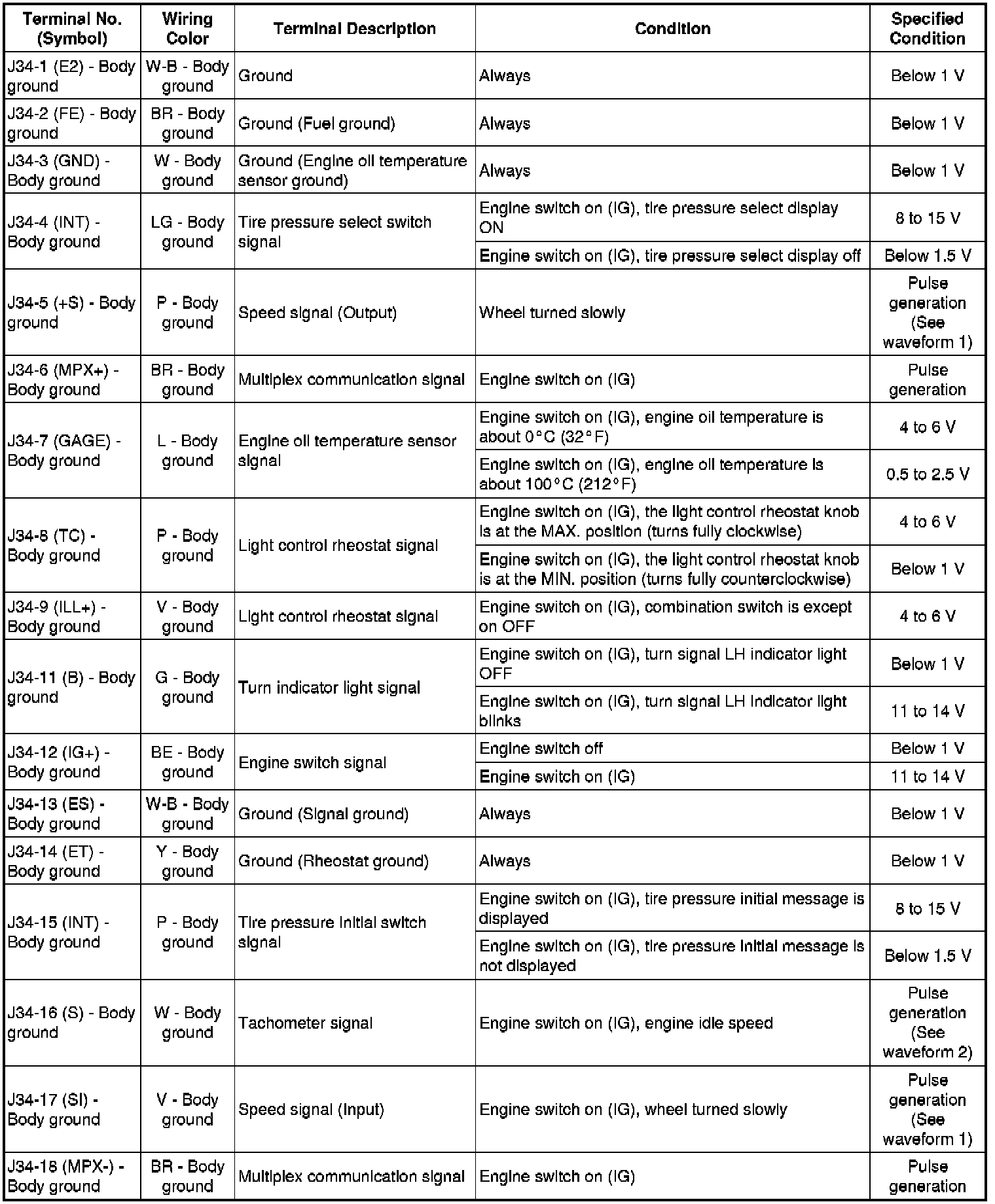

(a) Measure the voltage according to the value(s) in the table below.

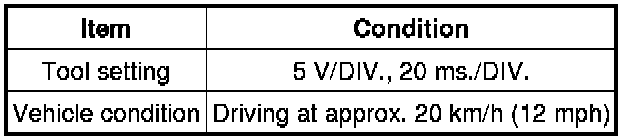

(b) Waveform 1 (Reference) : Using an oscilloscope:









HINT
When the system is functioning normally, one drive wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

(c) Waveform 2 (Reference) : Using an oscilloscope:









2. INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Navigation System)

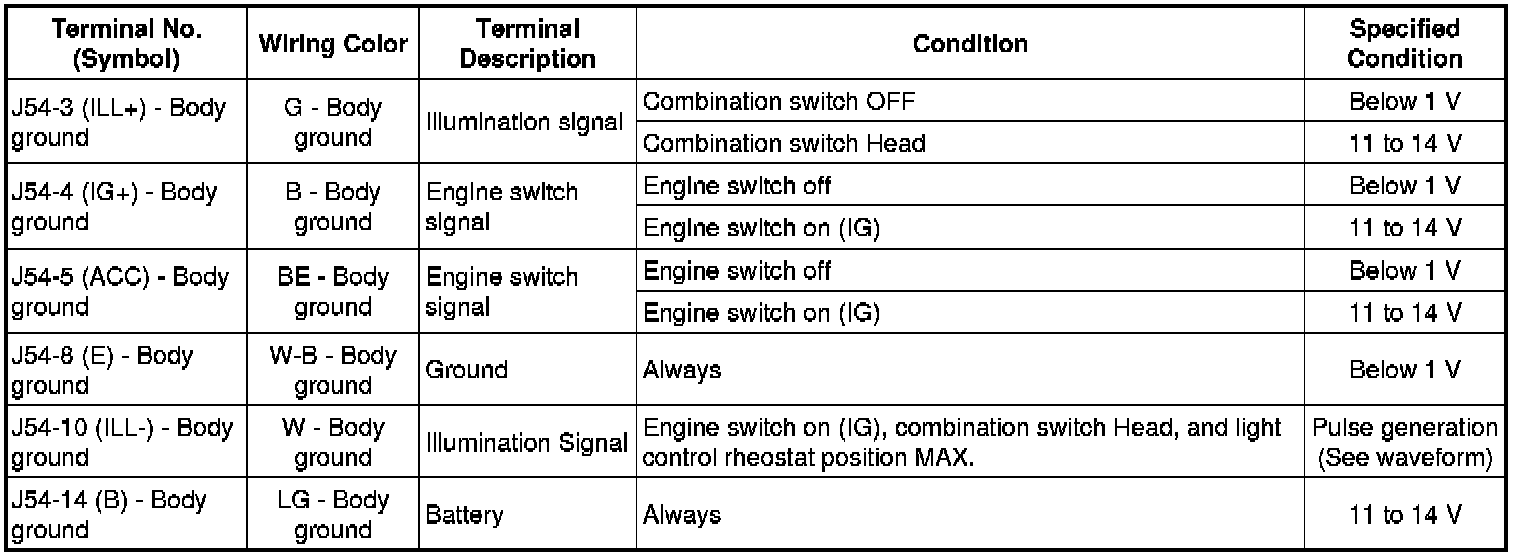

(a) Measure the voltage according to the value(s) in the table below.





(b) Waveform (Reference) : Using an oscilloscope:

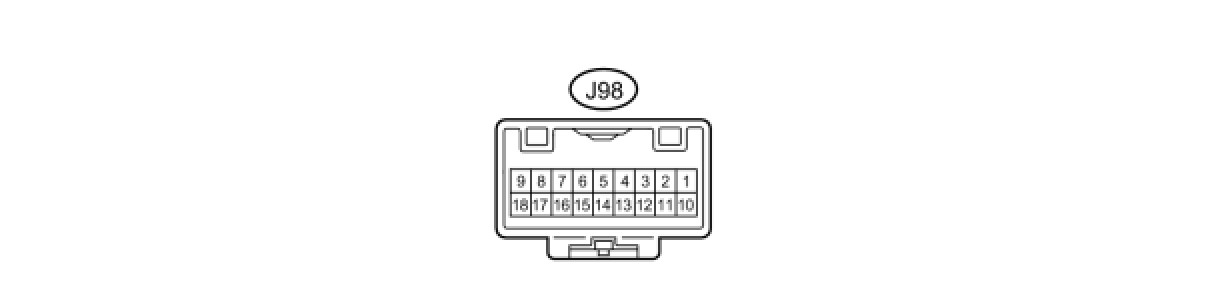

3. CLOCK ASSEMBLY (w/ Navigation System)

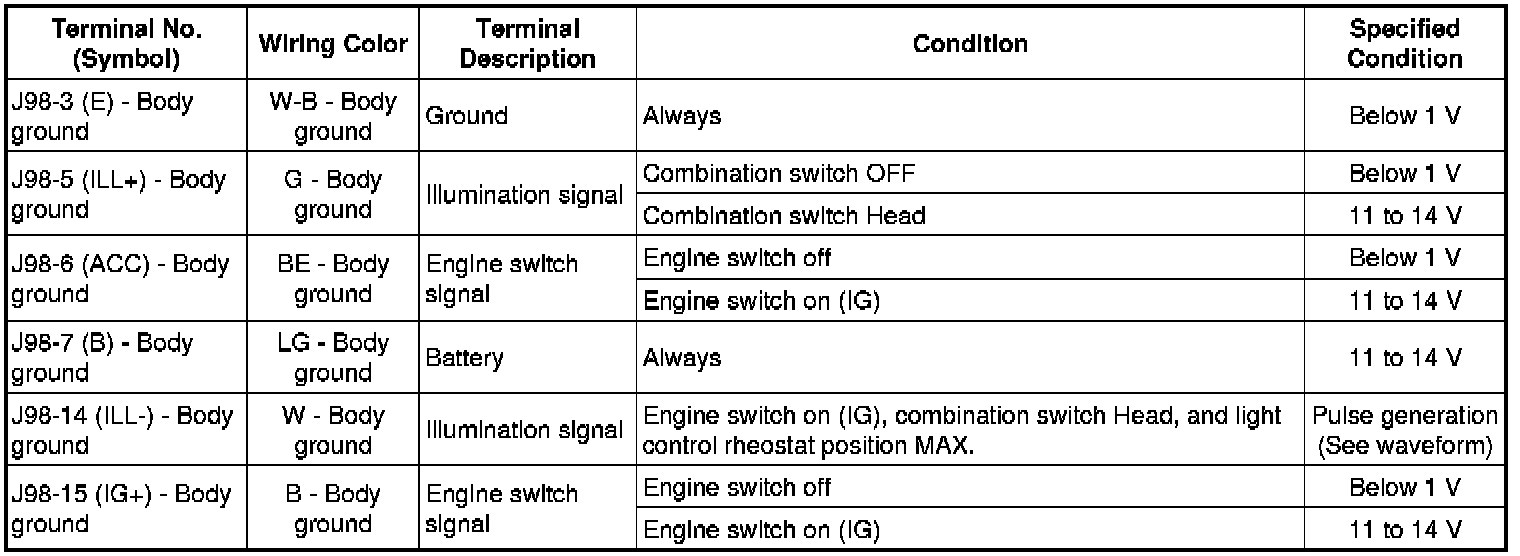

(a) Measure the voltage according to the value(s) in the table below.





(b) Waveform (Reference) : Using an oscilloscope:

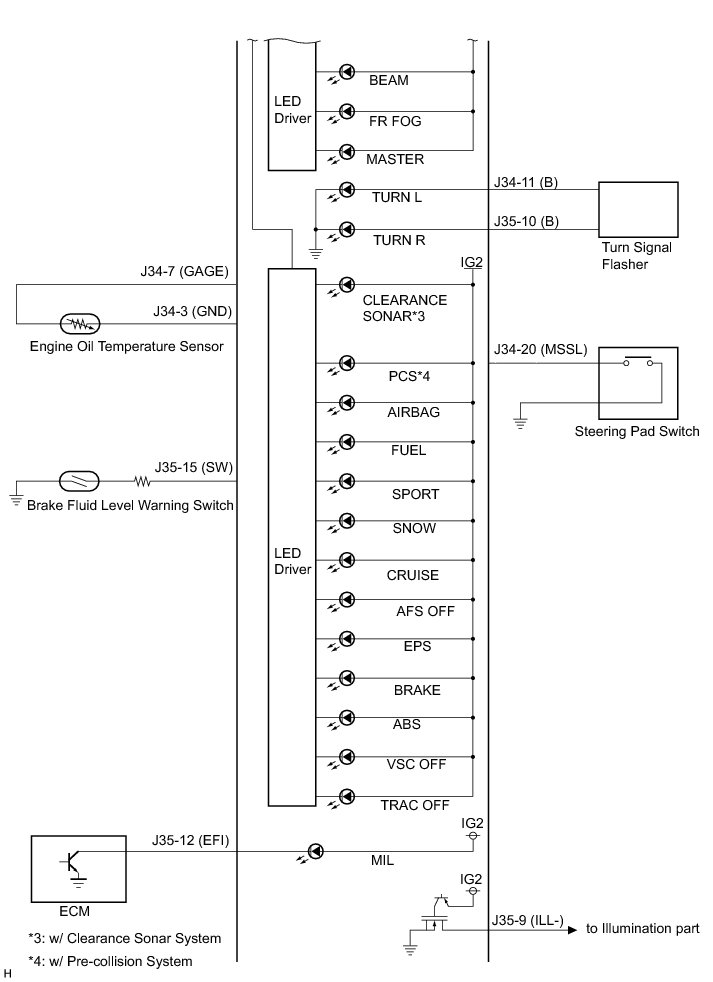

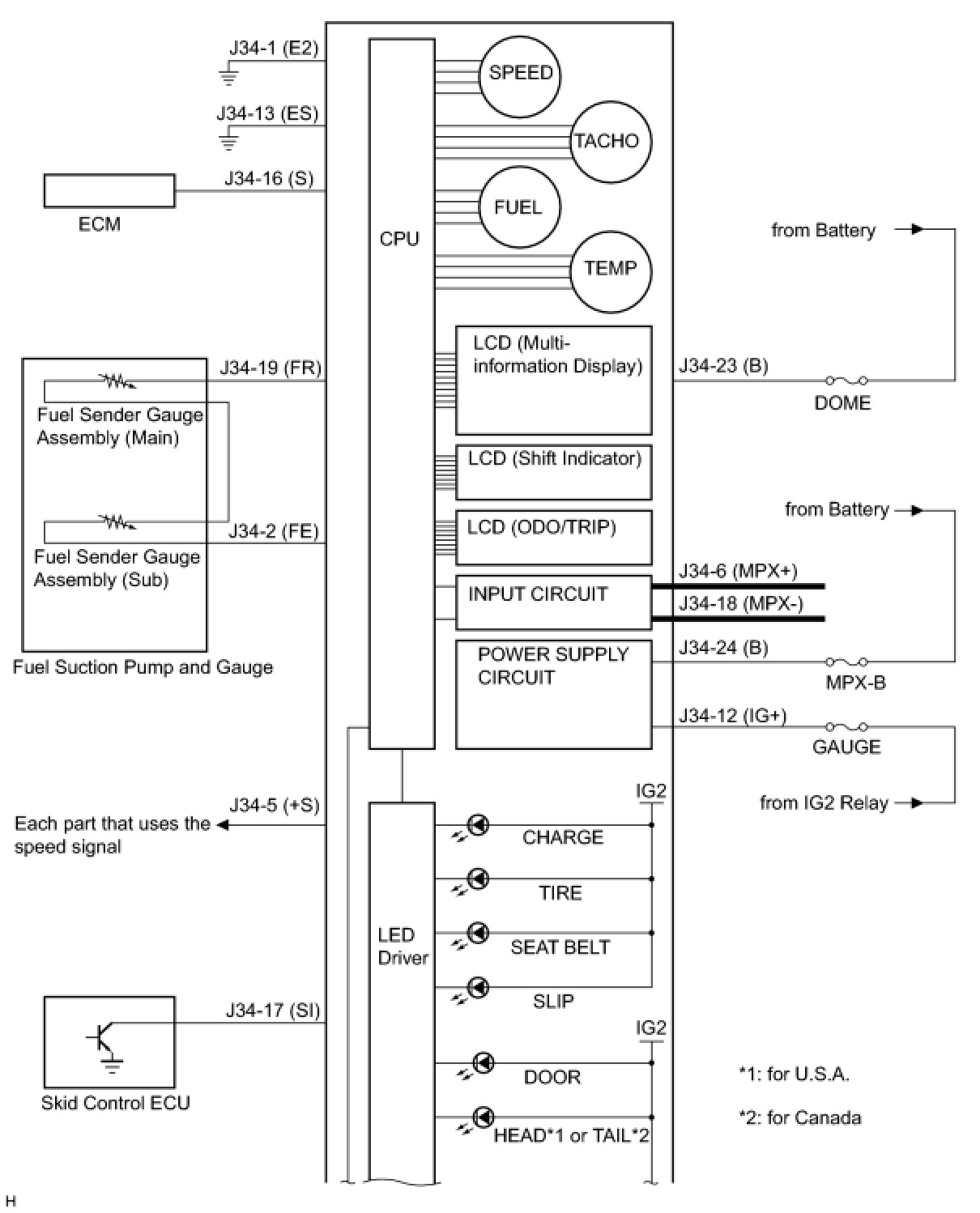

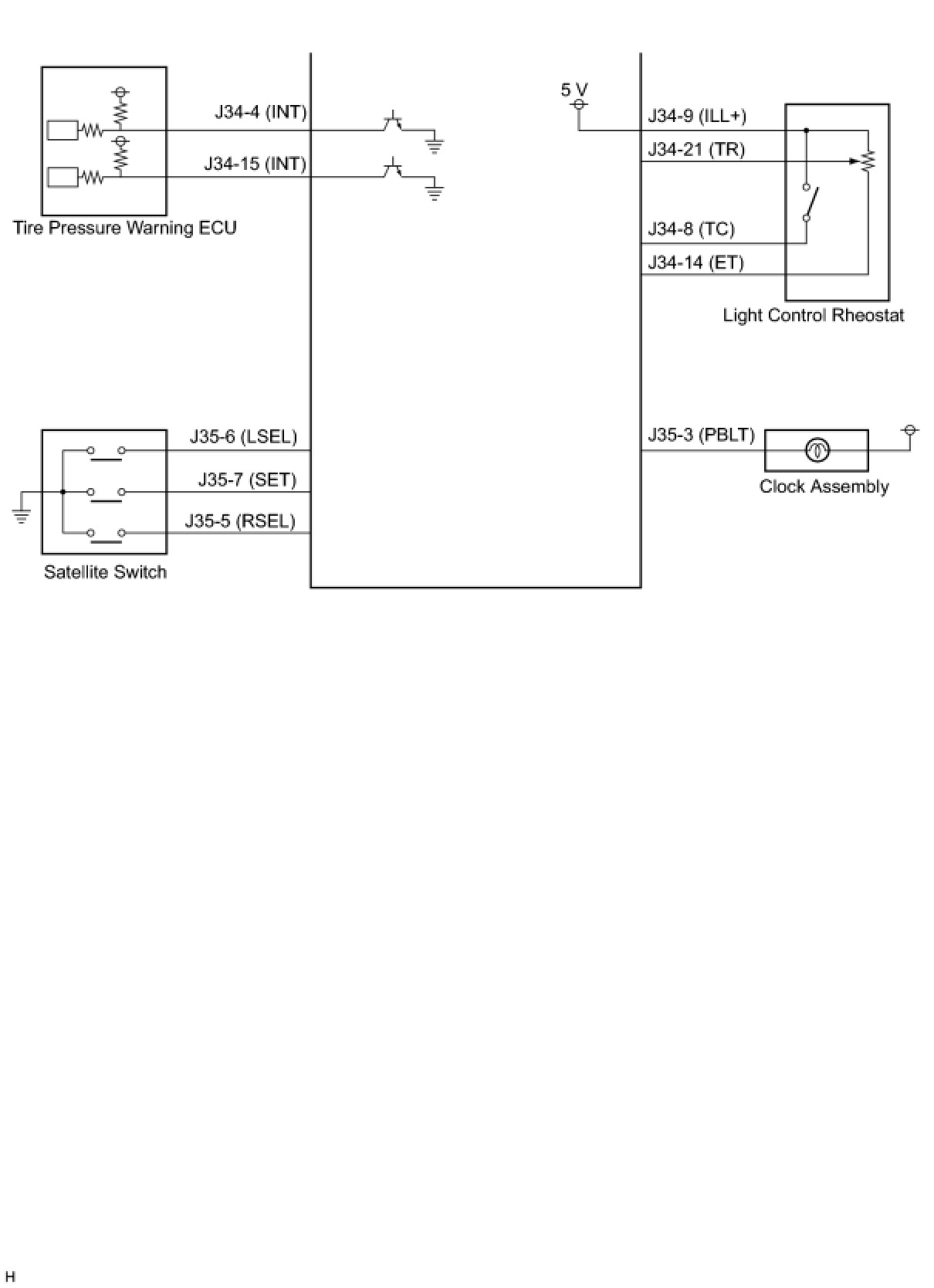

4. COMBINATION METER INNER CIRCUIT

(a) Combination Meter Inner Circuit
