Alignment

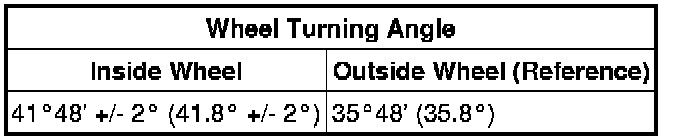

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

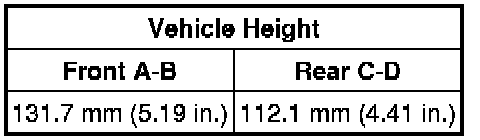

Measuring points:

A
Ground clearance of front wheel center.

B
Ground clearance of front center position of front suspension lower arm assembly front bushing installation bolt head.

C
Ground clearance of rear center position of rear No. 2 suspension arm bushing installation bolt threads.

D
Ground clearance of rear center position of rear suspension lower arm assembly rear bushing installation bolt head.
