Repair Instruction - Initialization

INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION

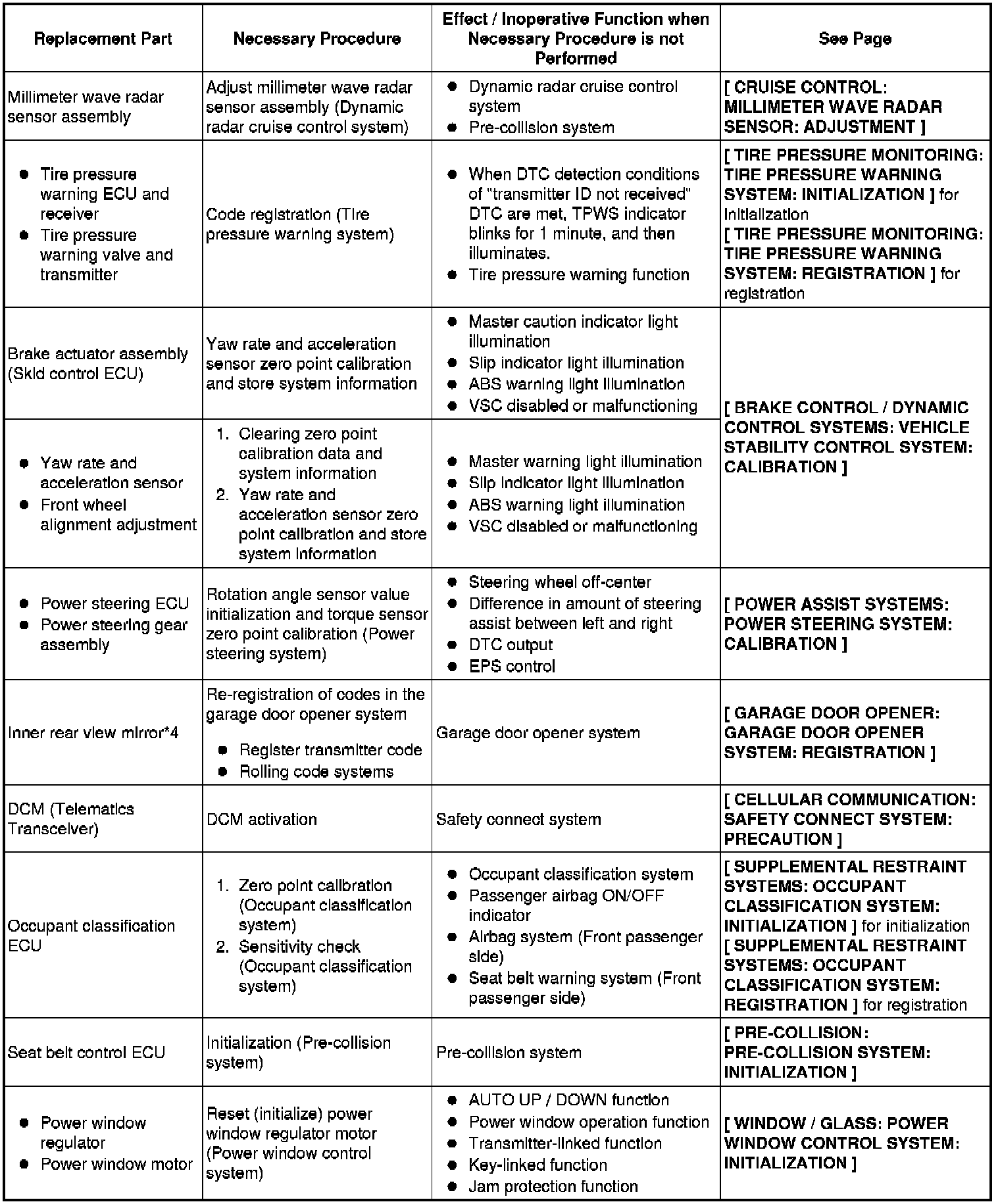

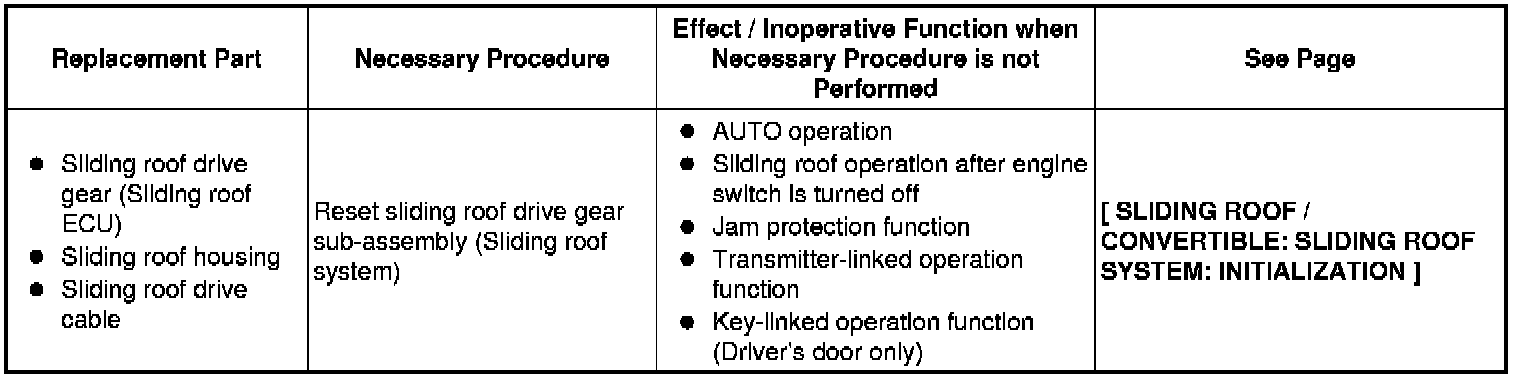

1. PROCEDURES NECESSARY WHEN ECU OR OTHER PARTS ARE REPLACED













* *1: New automatic transmission's compensation code.

* *2: Read the compensation code from the previous TCM, then transfer it to the new TCM.

* *3: Set the transmission compensation code of the current automatic transmission.

* *4: Garage Door Opener System
