Windshield Washer Spray Nozzle: Adjustments

WIPER / WASHER: WASHER NOZZLE: ADJUSTMENT

1. REMOVE WASHER NOZZLE SUB-ASSEMBLY Removal

2. ADJUST WASHER NOZZLE SUB-ASSEMBLY

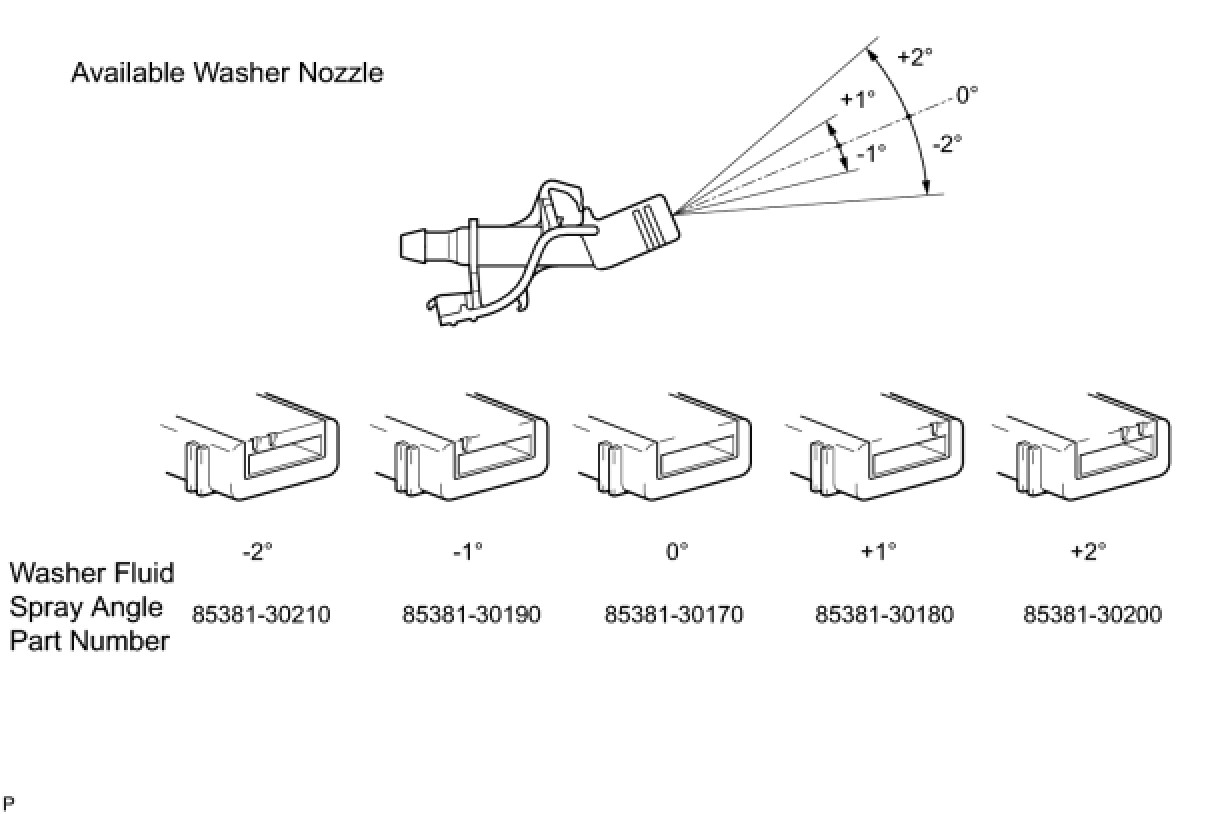

(a) Select a washer nozzle so that the contact area is within the standard. Replace the washer nozzle with the selected one.





3. INSTALL WASHER NOZZLE SUB-ASSEMBLY Installation
