Position of Parts In Seat [5-Seater w/o Power Seat]
Position of Parts In Seat [5-Seater w/o Power Seat]

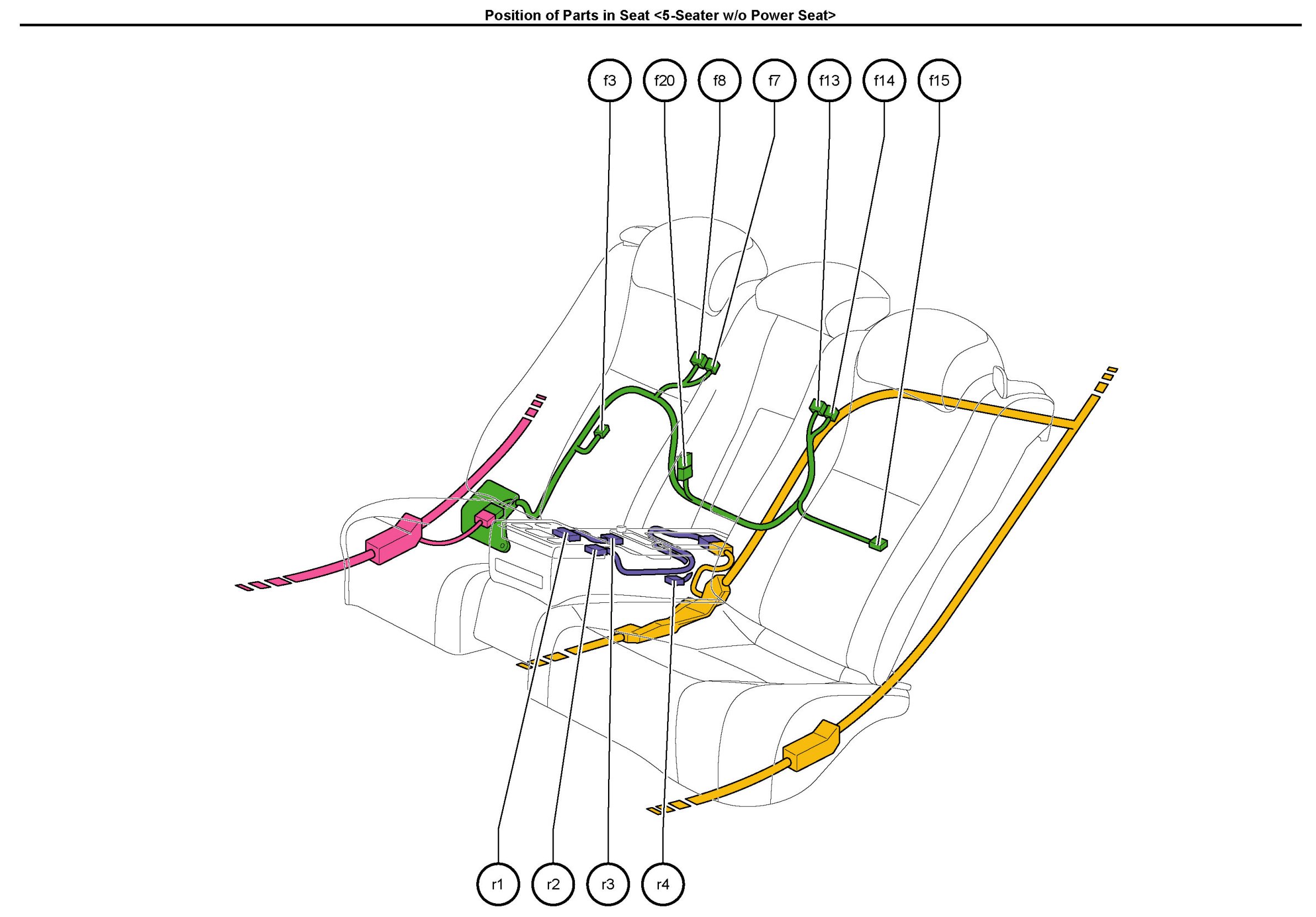

Position Of Parts In Seat [5-seater w/o Power Seat]:
Legend:

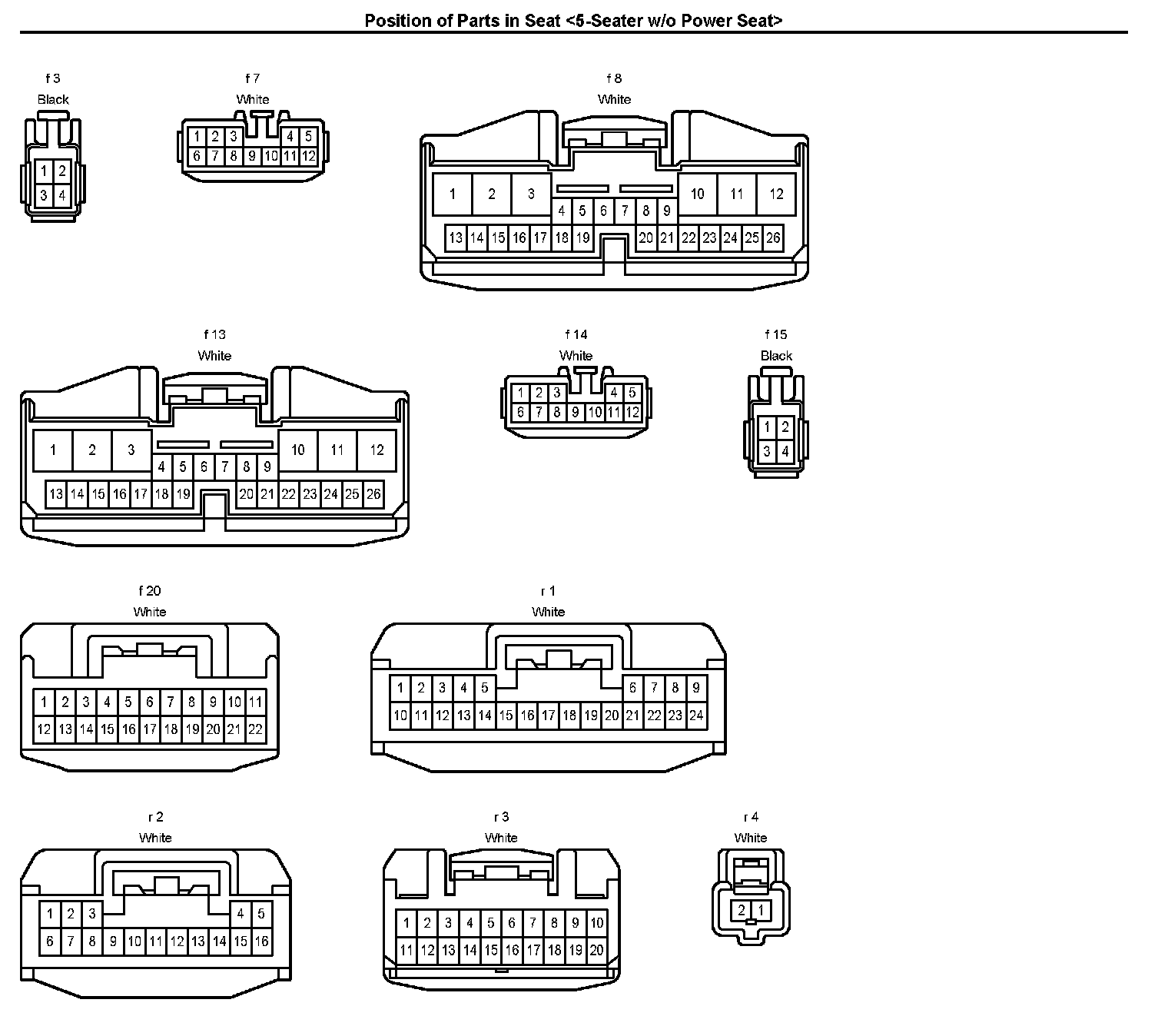

Connector Views:
