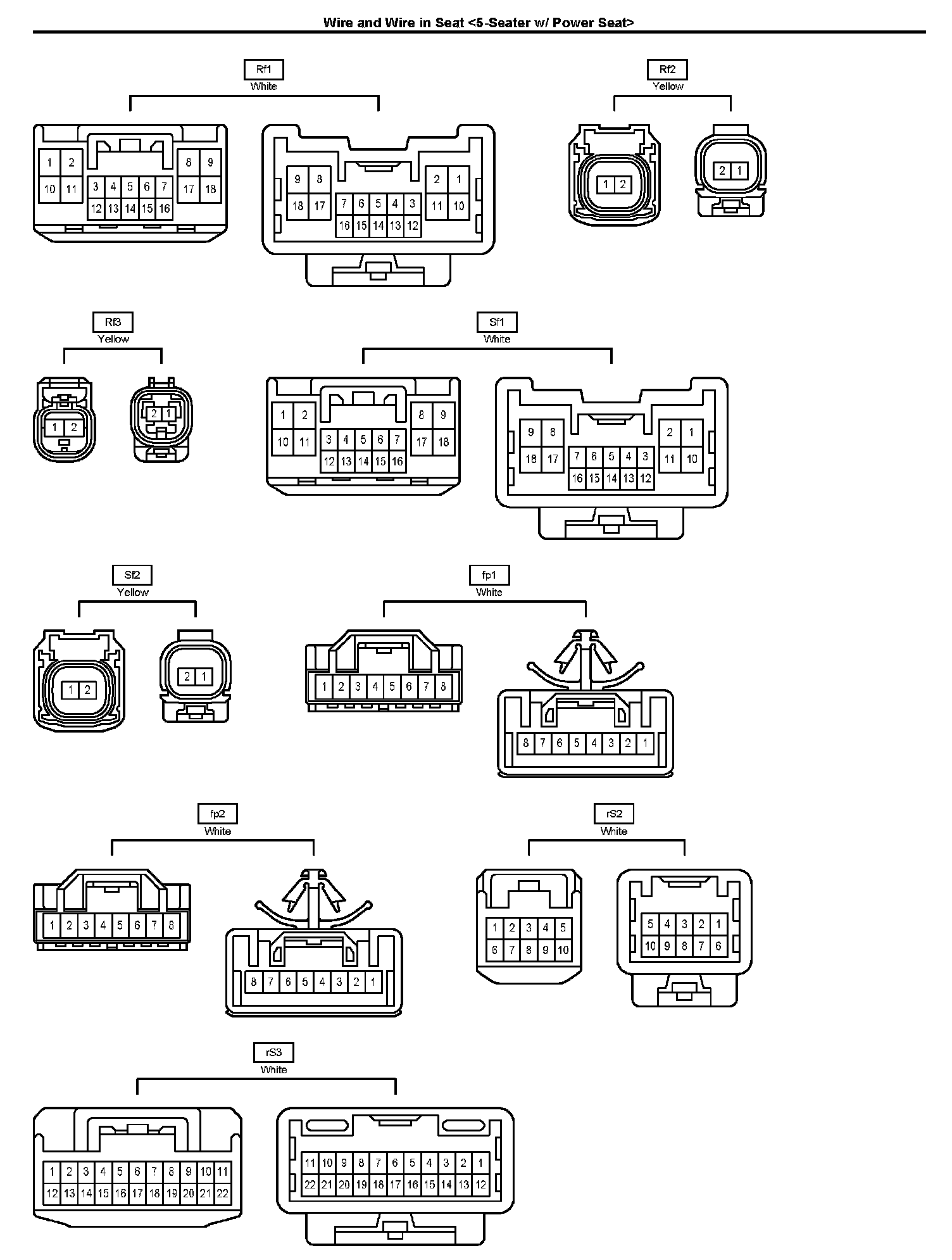

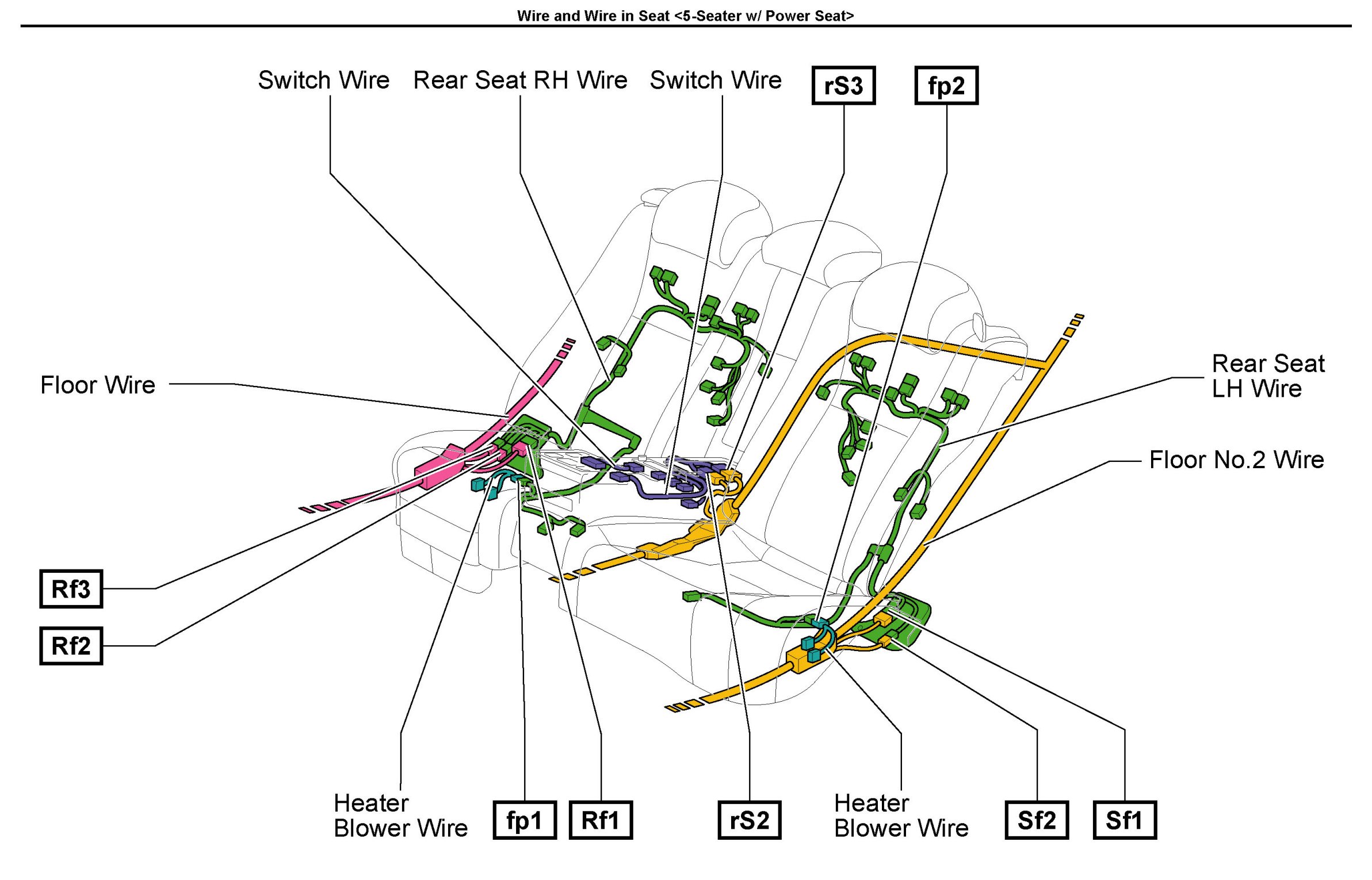

Wire and Wire In Seat [5-Seater w/ Power Seat]
Wire and Wire In Seat [5-Seater w/ Power Seat]
fp1-Sf2:
fp1-Sf2:
