Locations
>>
Connector Locations
>>

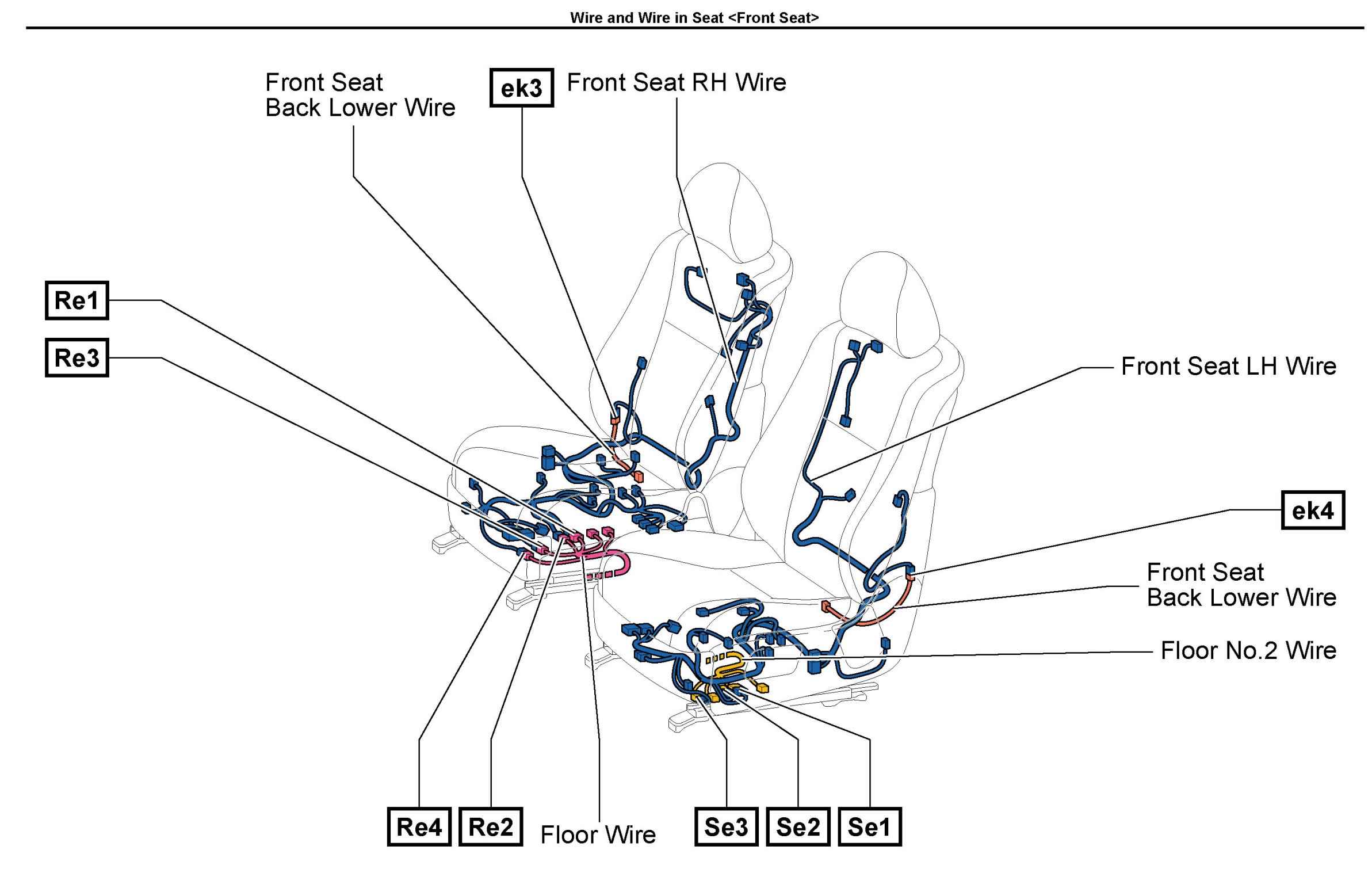

Wire and Wire In Seat [Front Seat]
Wire and Wire In Seat [Front Seat]

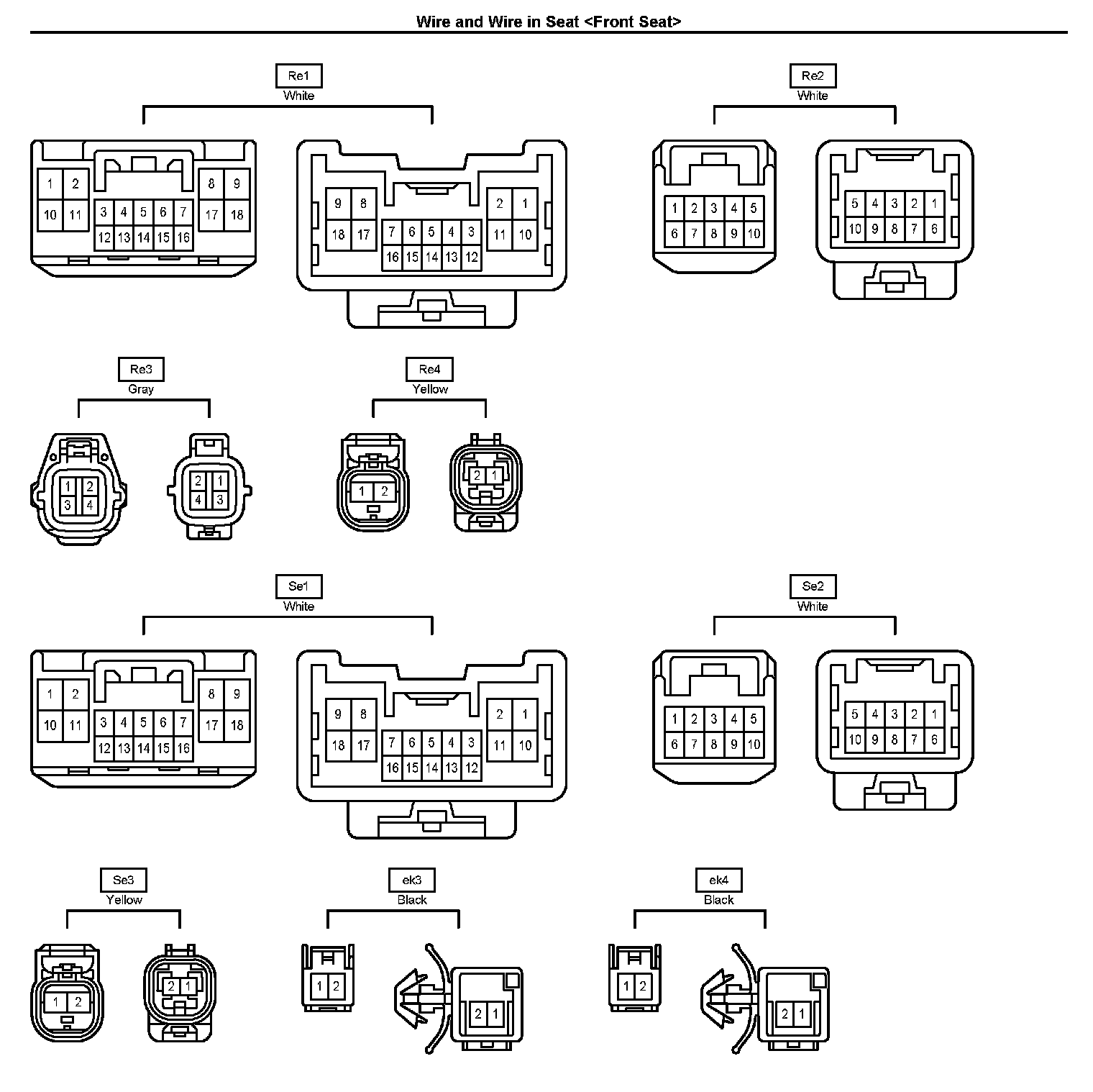

Ek3-Se3:
ek3-Se3:
