Removal

AUDIO / VISUAL: HARD DISK DRIVE: REMOVAL

1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

Removal

2. REMOVE DECK TRIM SIDE BOARD LH (w/o Spare Tire) Removal

3. REMOVE BATTERY SERVICE HOLE COVER LH Removal

4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System (for HDD):
* After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

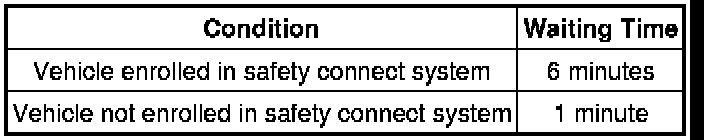

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
5. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY

(a) Remove the display and navigation module display Removal.

6. REMOVE HARD DISC

(a) Remove the 3 screws.





(b) Remove the hard disc in the direction of the arrow shown in the illustration.
