Steering Mounted Controls Transmitter
>>

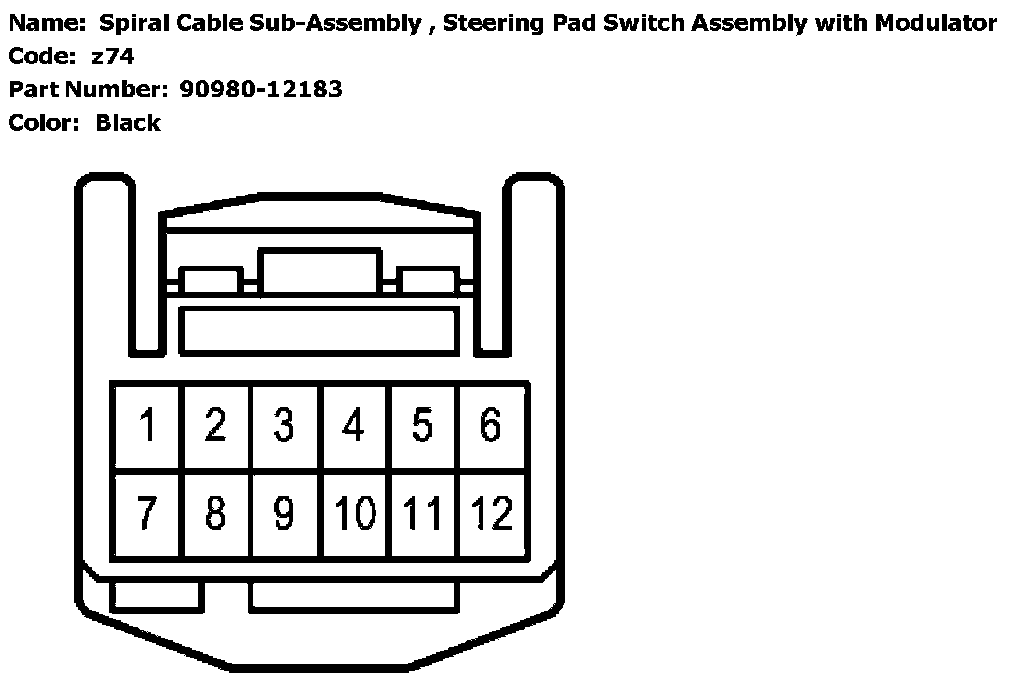

Spiral Cable Sub-Assembly, Steering Pad Switch Assembly With Modulator
Spiral Cable Sub-Assembly, Steering Pad Switch Assembly With Modulator
