Audible Warning Device: Testing and Inspection

BRAKE CONTROL: SKID CONTROL BUZZER (w/ Dynamic Radar Cruise Control System): INSPECTION

1. INSPECT SKID CONTROL BUZZER

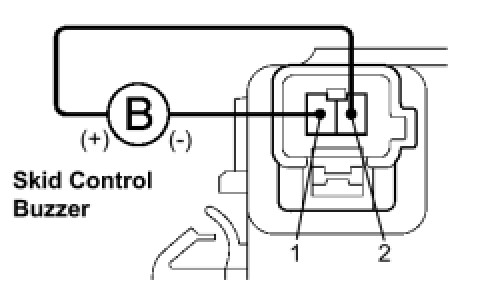

(a) Apply battery negative voltage to terminal 1, and battery positive voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.





OK:

The skid control buzzer sounds.

If the skid control buzzer does not sound, replace the skid control buzzer.
