Canada - Instruments - Calibration of Compass

Bulletin
TSB2872

Issue Date
September 8, 2010

Title
INITIAL CALIBRATION OF COMPASS DURING PDS

Component
GENERAL INFORMATION

Models
'11 ES350

INTRODUCTION:

Some 2011 model year ES350 vehicles are equipped with a compass in the rear view mirror. Use the following procedure to perform initial calibration during Pre-Delivery Service (PDS).






APPLICABILITY:

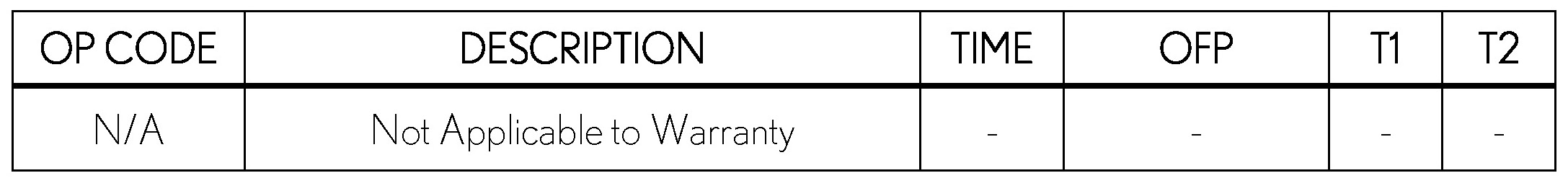

WARRANTY INFORMATION:







CALIBRATION PROCEDURE:






1. Cycle the ignition switch to the "IG-ON" position and hold the "AUTO" switch for 6 seconds until the zone number appears on the display.

HINT
Pushing the "AUTO" switch for 3 seconds turns ON or OFF the compass display.

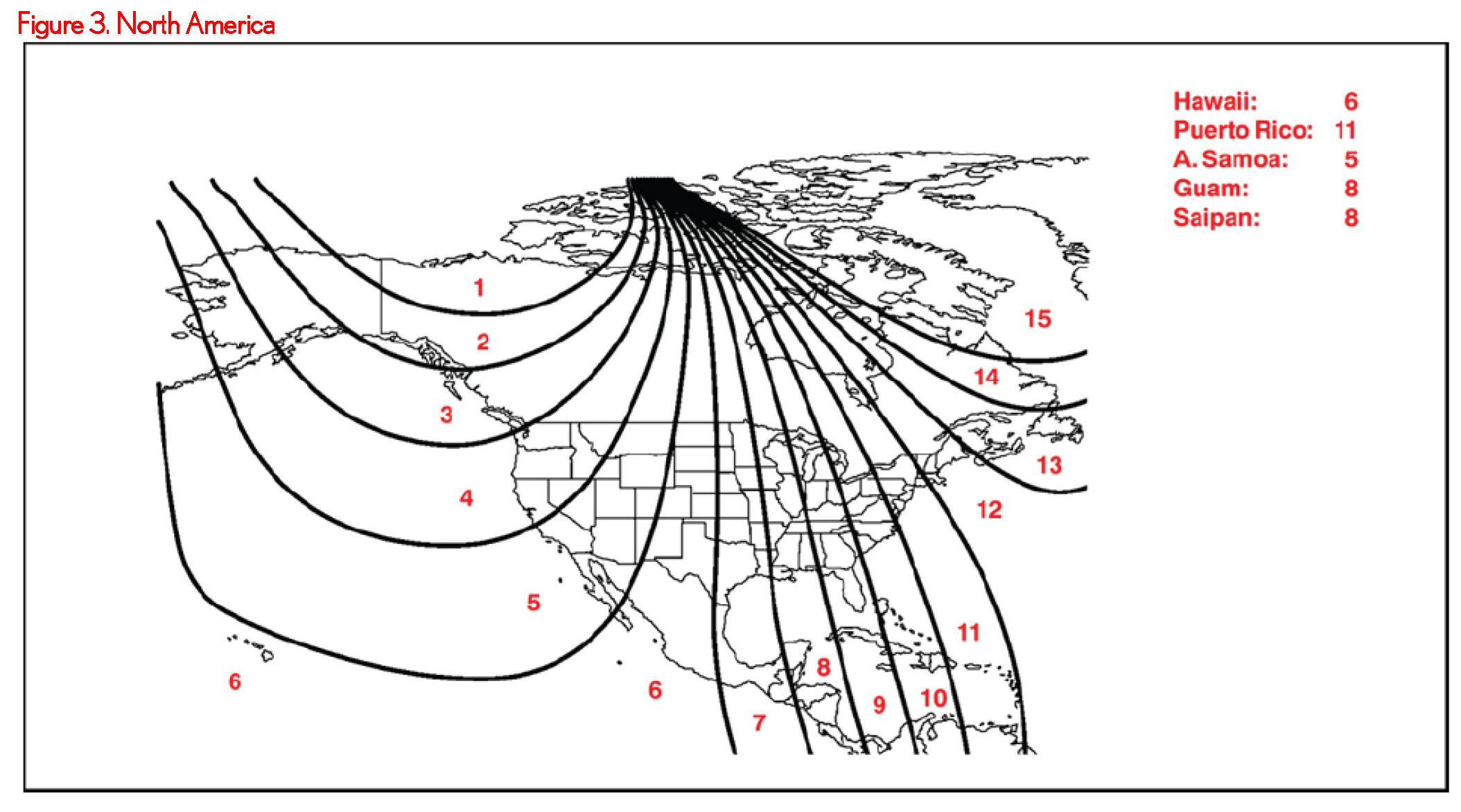

2. Push the "AUTO" switch to select the number of the zone where the vehicle is located. See the map in figure 3 for zone reference.

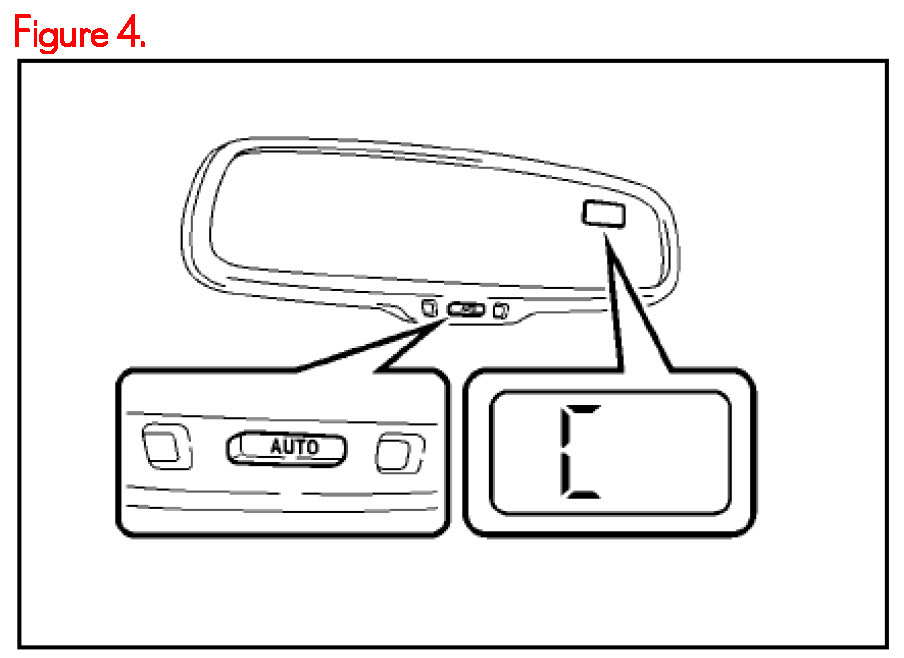

3. Start the engine and push the "AUTO" switch for about 9 seconds until "C" appears on the display.

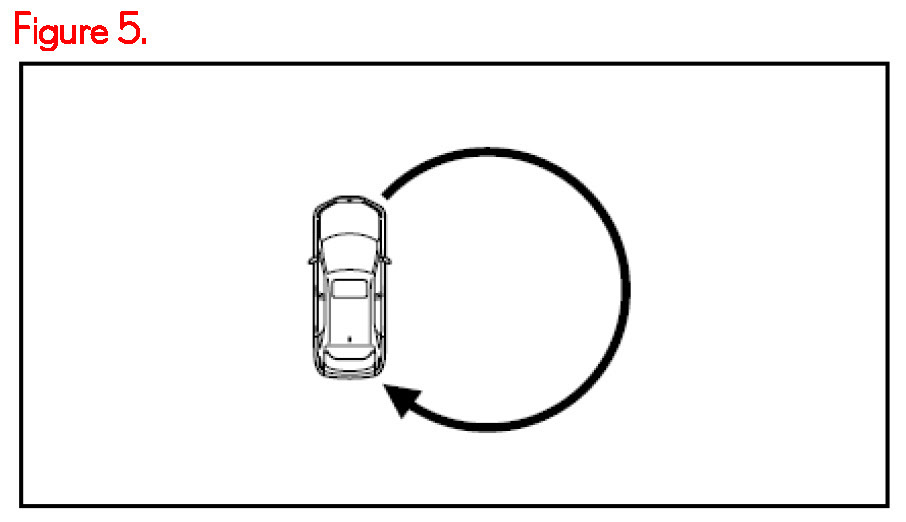

4. Drive the vehicle slowly at 8 km/h (5 mph), or less, in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, drive around the block until the direction is displayed.

Once the direction is displayed, the calibration is complete.

NOTE
- Do NOT perform calibration of the compass in a place where the Earth's magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.)
- During calibration, do NOT operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
