Fuse: Locations

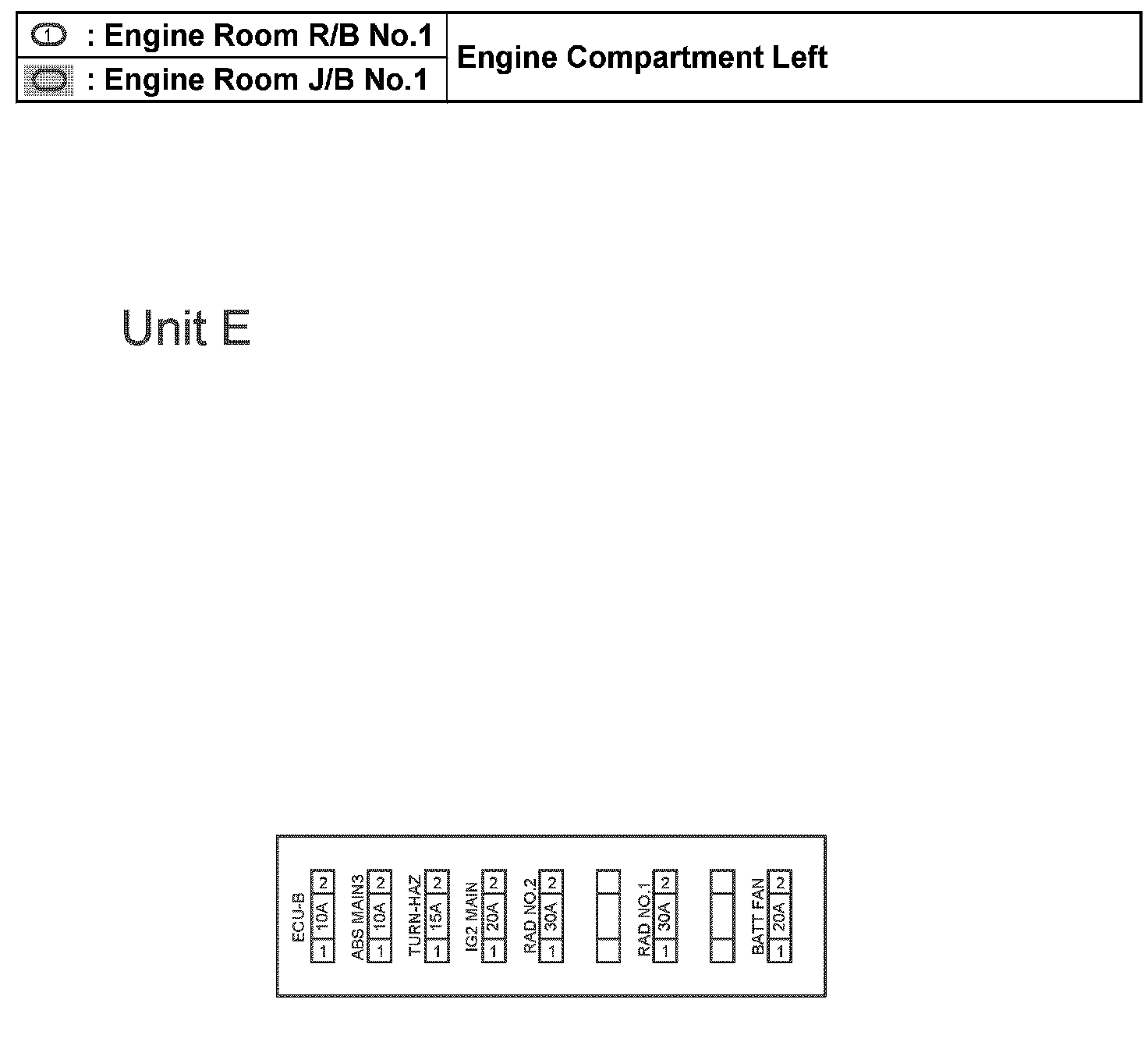

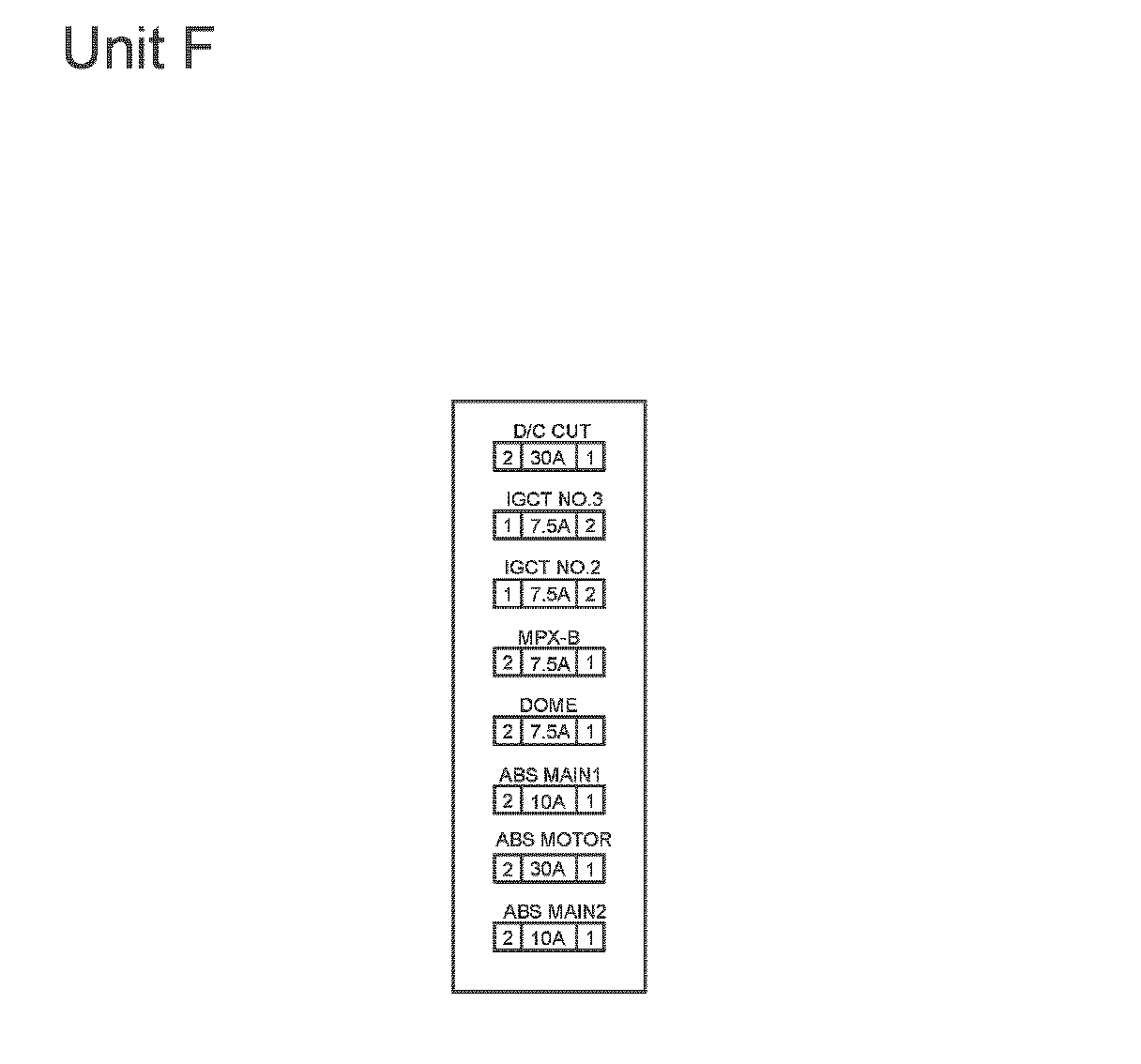

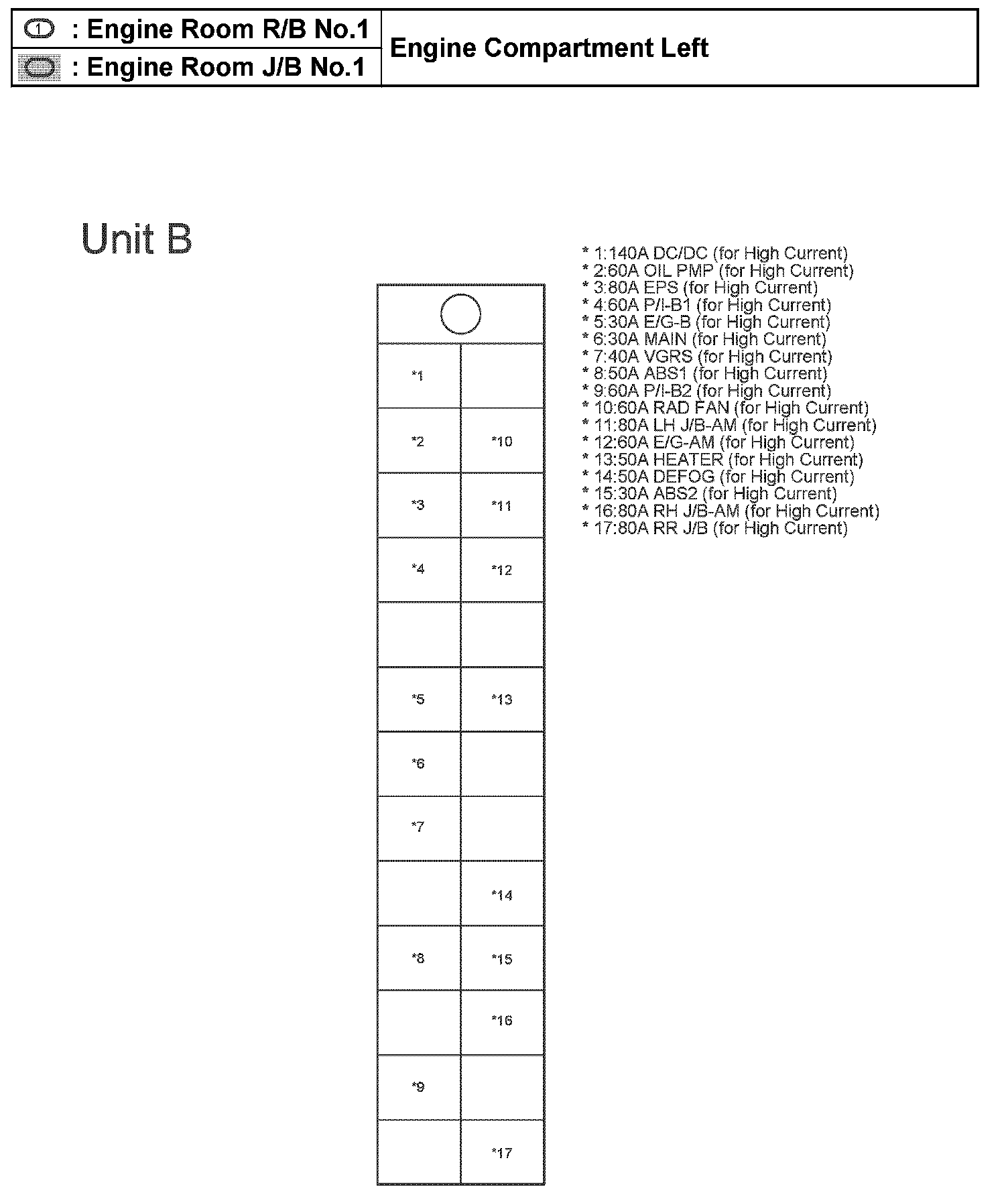

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, Engine Room J/B No.1 - Engine Compartment Left:

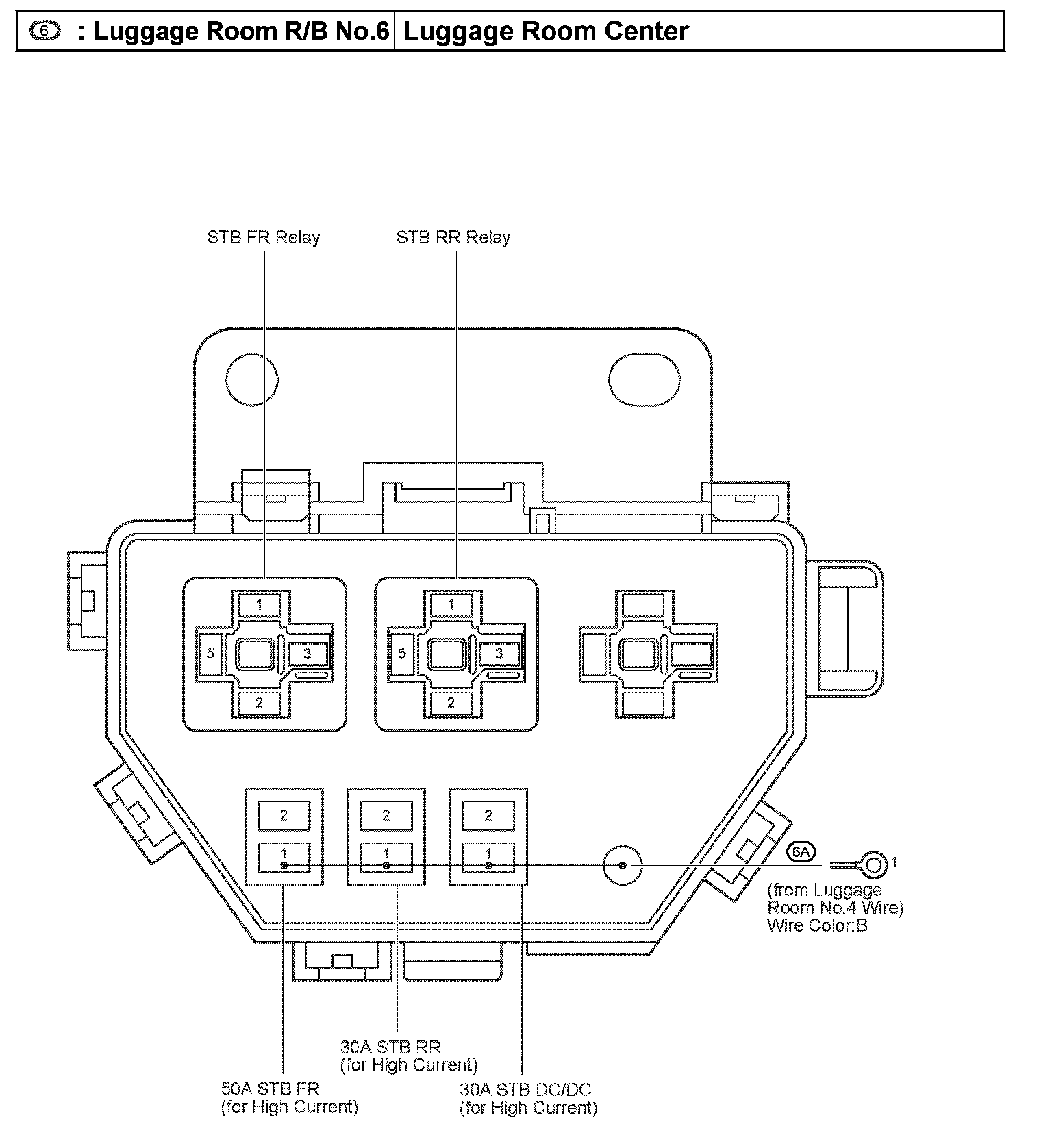

Luggage Room R/B No.6 - Luggage Room Center:

Fuse Block - Luggage Room Left:

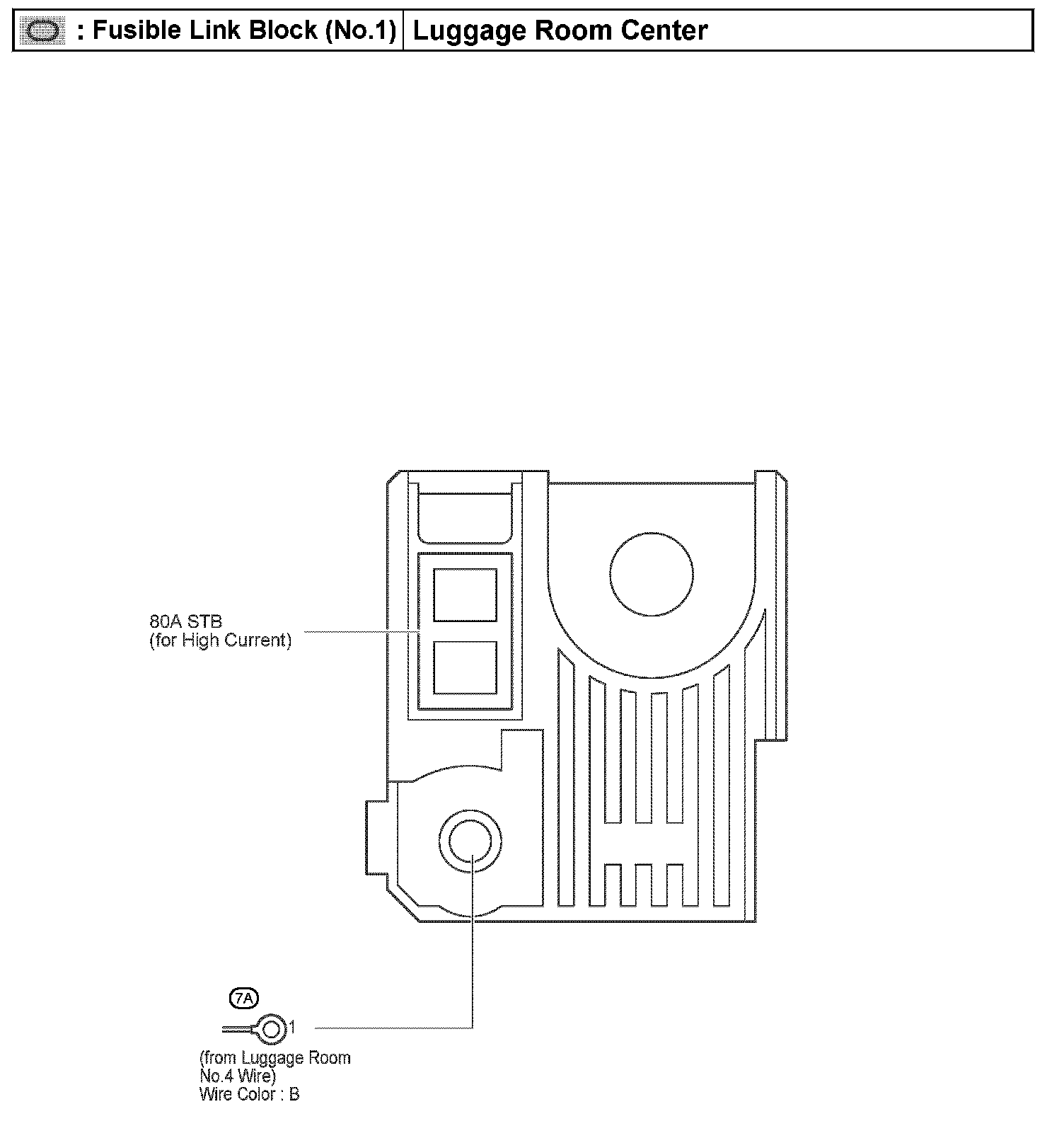

Fusible Link Block (No.1) - Luggage Room Center:

Fusible Link Block (No.2) - Luggage Room Left:

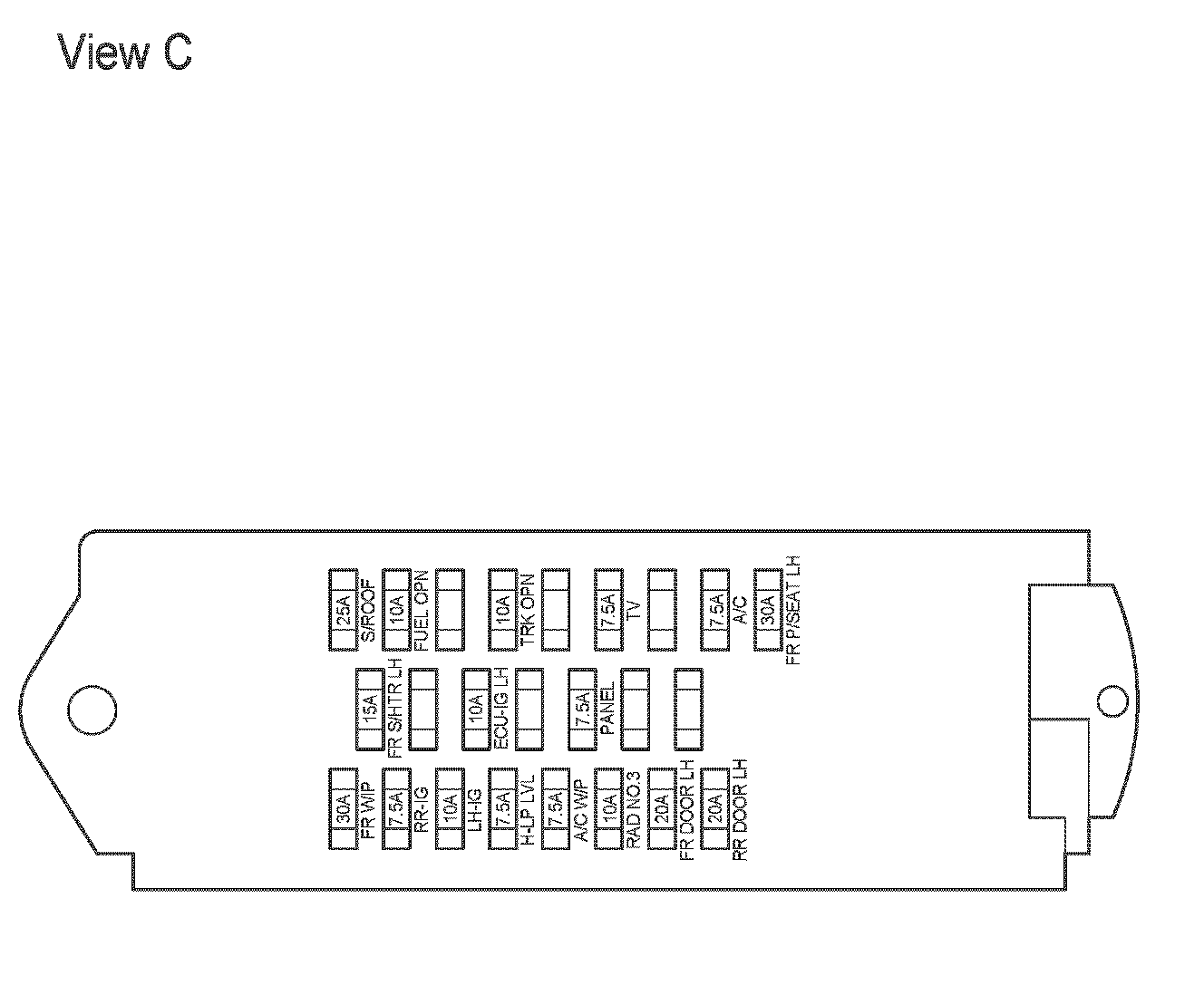

Cowl Side J/B LH - Lower Finish Panel:

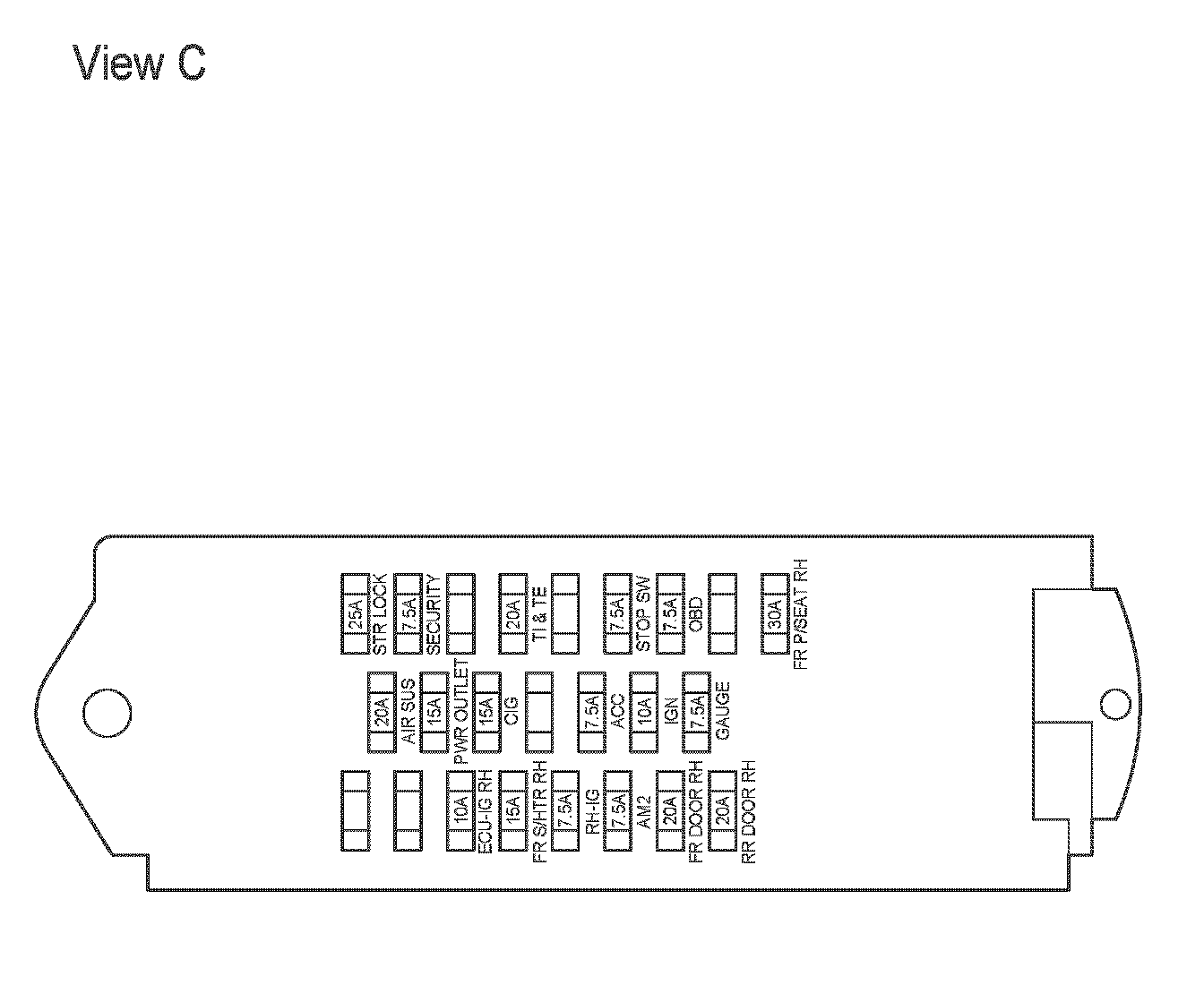

Cowl Side J/B RH - Behind the Glove Box:

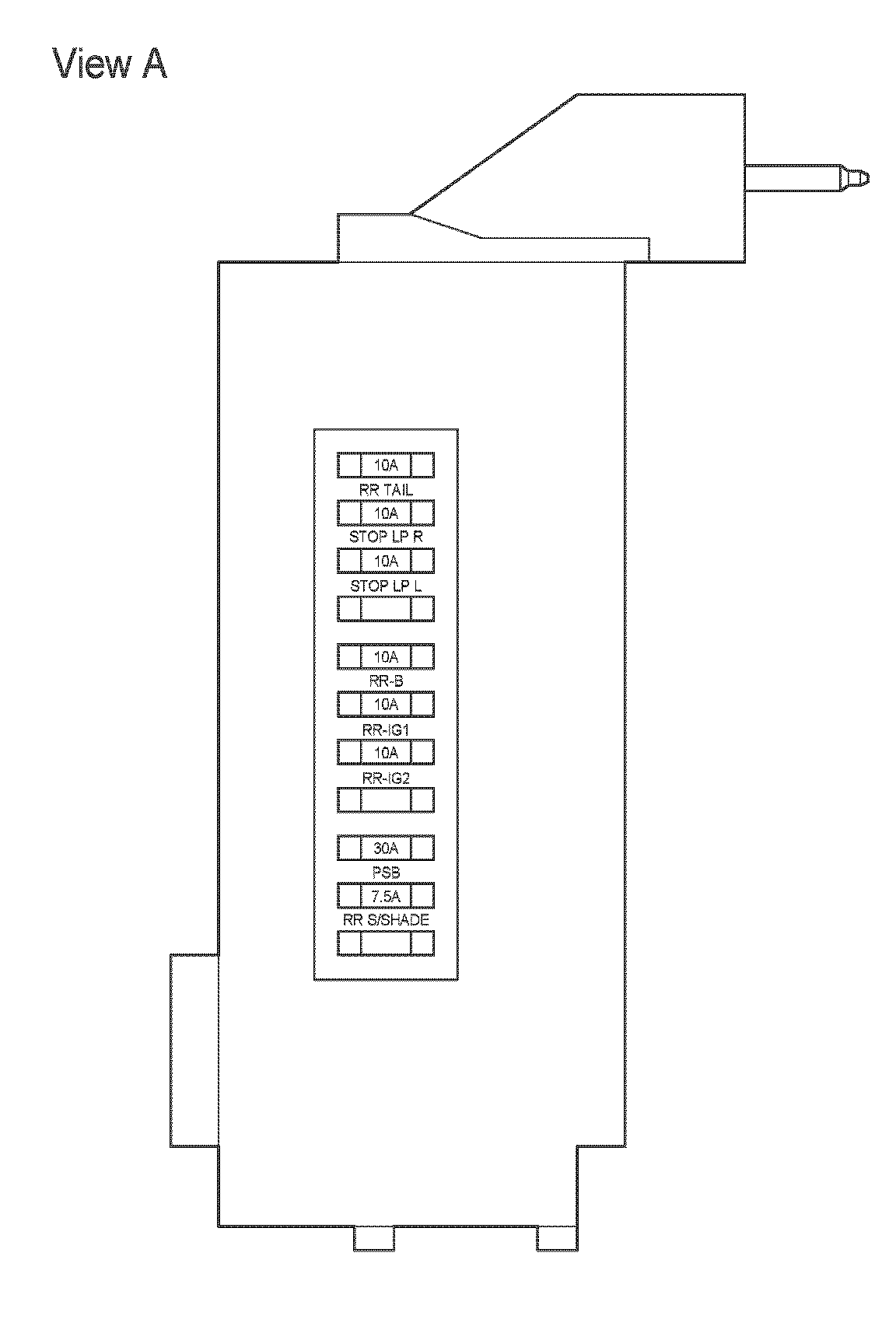

Luggage Room J/B - Left Side of the Quarter Panel:
