Multiple Junction Connector: Locations

AD1-tA1, A1-J1:

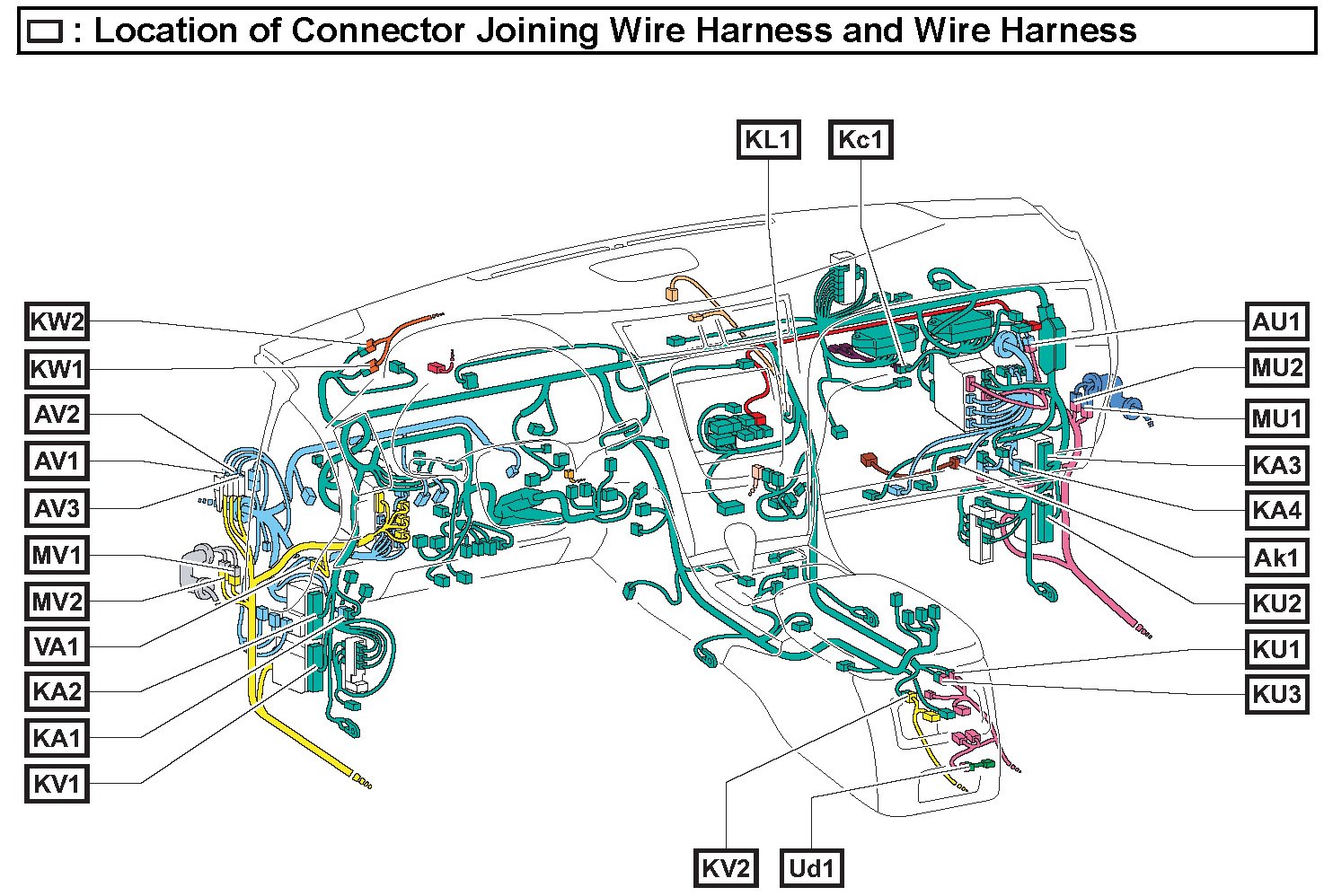

Ak1-Ud1:




eV1-ZX1:




Ua1-Vb1:




Pz1-VN1:
