Crankshaft Main Bearing

Crankshaft oil clearance

Standard 0.014 to 0.036 mm (0.0005 to 0.0014 in)
Minimum 0.060 mm (0.0023 in)

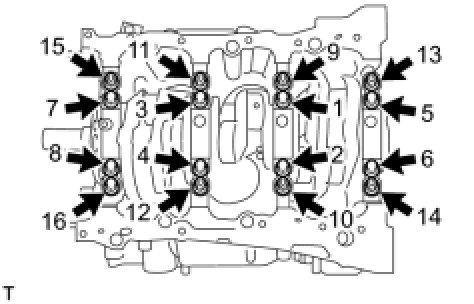

Step 1 61 Nm (622 kgf-cm, 45 ft-lbf)
Step 2 90°

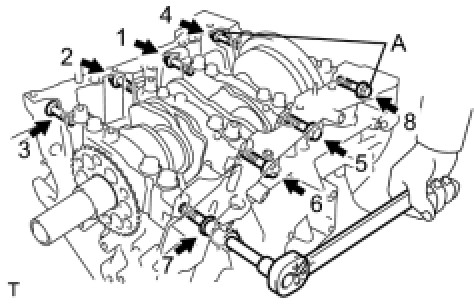

Torque 26 Nm (265 kgf-cm, 19 ft-lbf)
