Rear View Monitor System (w/ Wide View Front Monitor System)

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM (w/ Wide View Front Monitor System): SYSTEM DIAGRAM





Communication Table









SYSTEM DESCRIPTION

1. GENERAL

(a) To assist the driver with parking the vehicle by displaying an image of the area behind the vehicle, this system has a television camera mounted on the luggage compartment door. The system displays the image on the multi-display.

(b) This system consists of the following components:

(1) Rear television camera assembly

(2) Parking assist ECU

(3) Multi-display

(4) Display and navigation module display

(5) Hybrid vehicle control ECU

(c) This system is equipped with a self-diagnosis system, which is operated on a designated window that appears on the multi-display, just as in the navigation system.

2. FUNCTION OF COMPONENTS





3. OPERATION EXPLANATION

(a) The parking assist ECU receives the camera activation information from the display and navigation module display. Then, the parking assist ECU switches the display signal for the display and navigation module display from the navigation system to the rear view monitor system.

4. DIAGNOSTIC FUNCTION OUTLINE

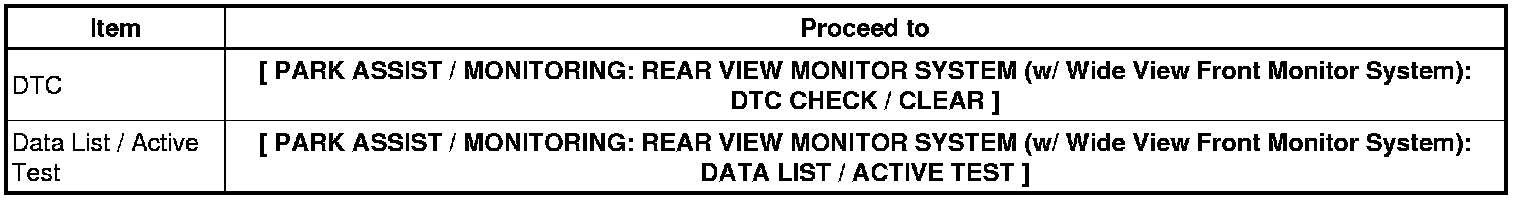

(a) The rear view monitor system can check the following items by using the Techstream.
