Lane Departure System

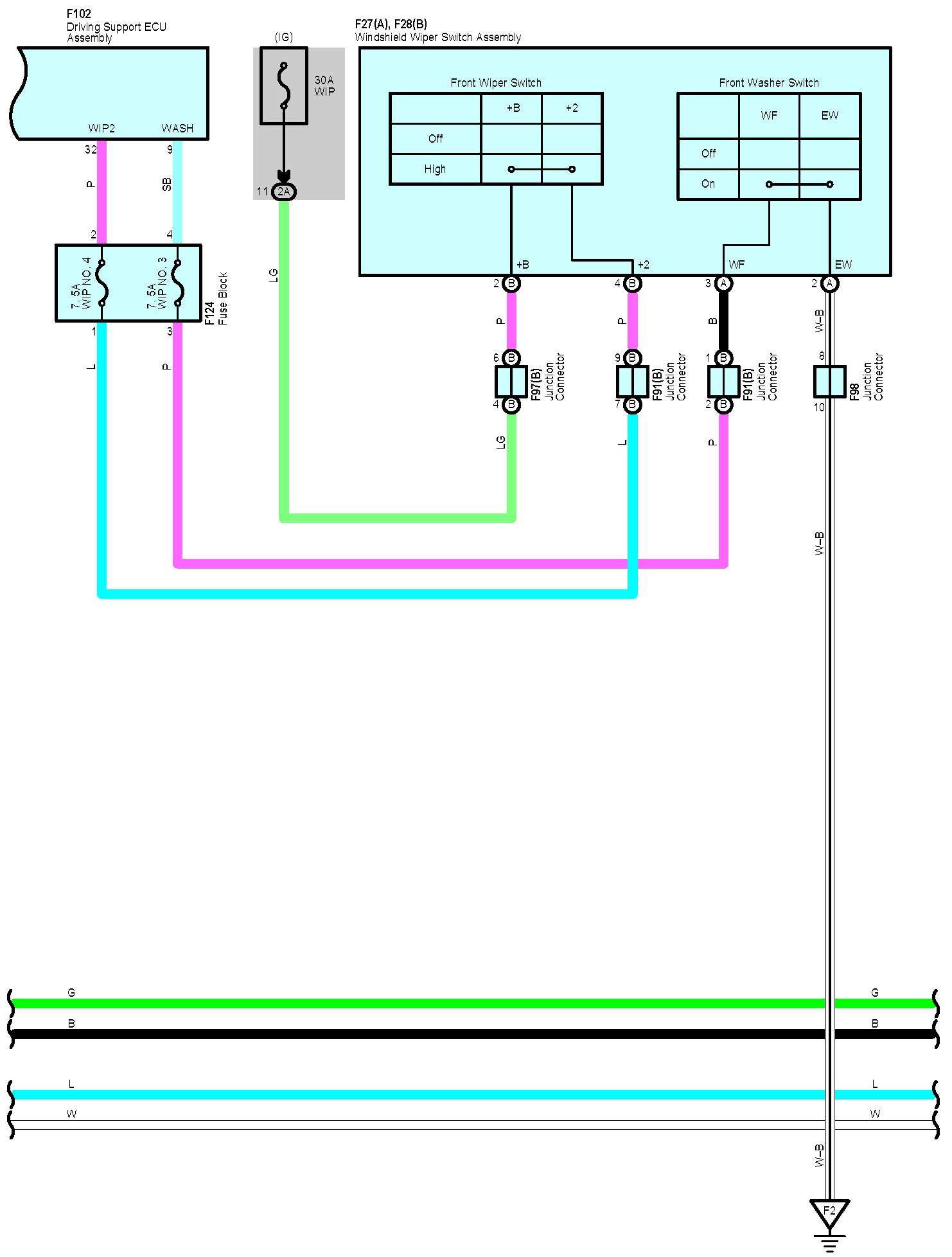

Lane Keep Assist Part 1:

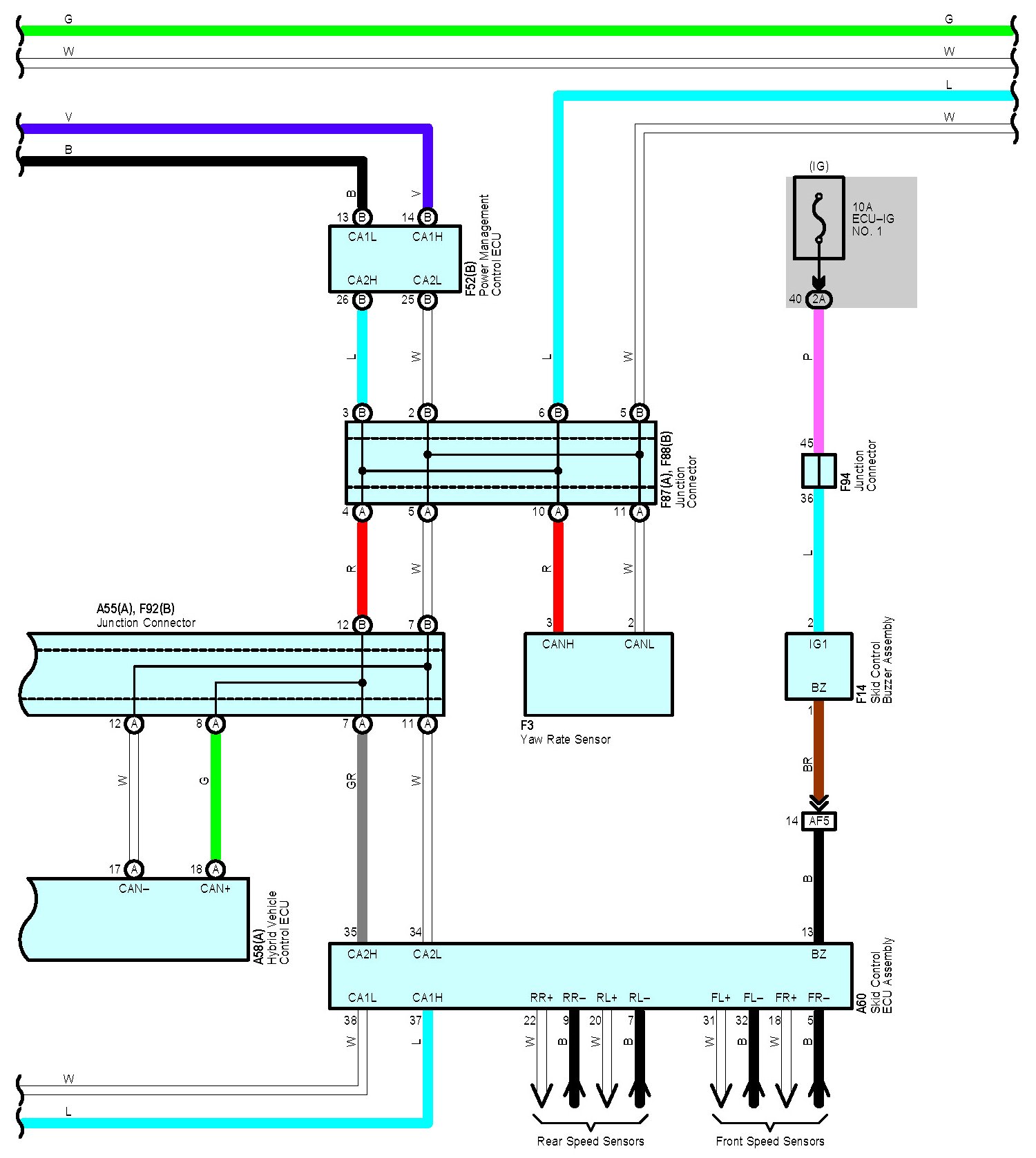

Lane Keep Assist Part 2:

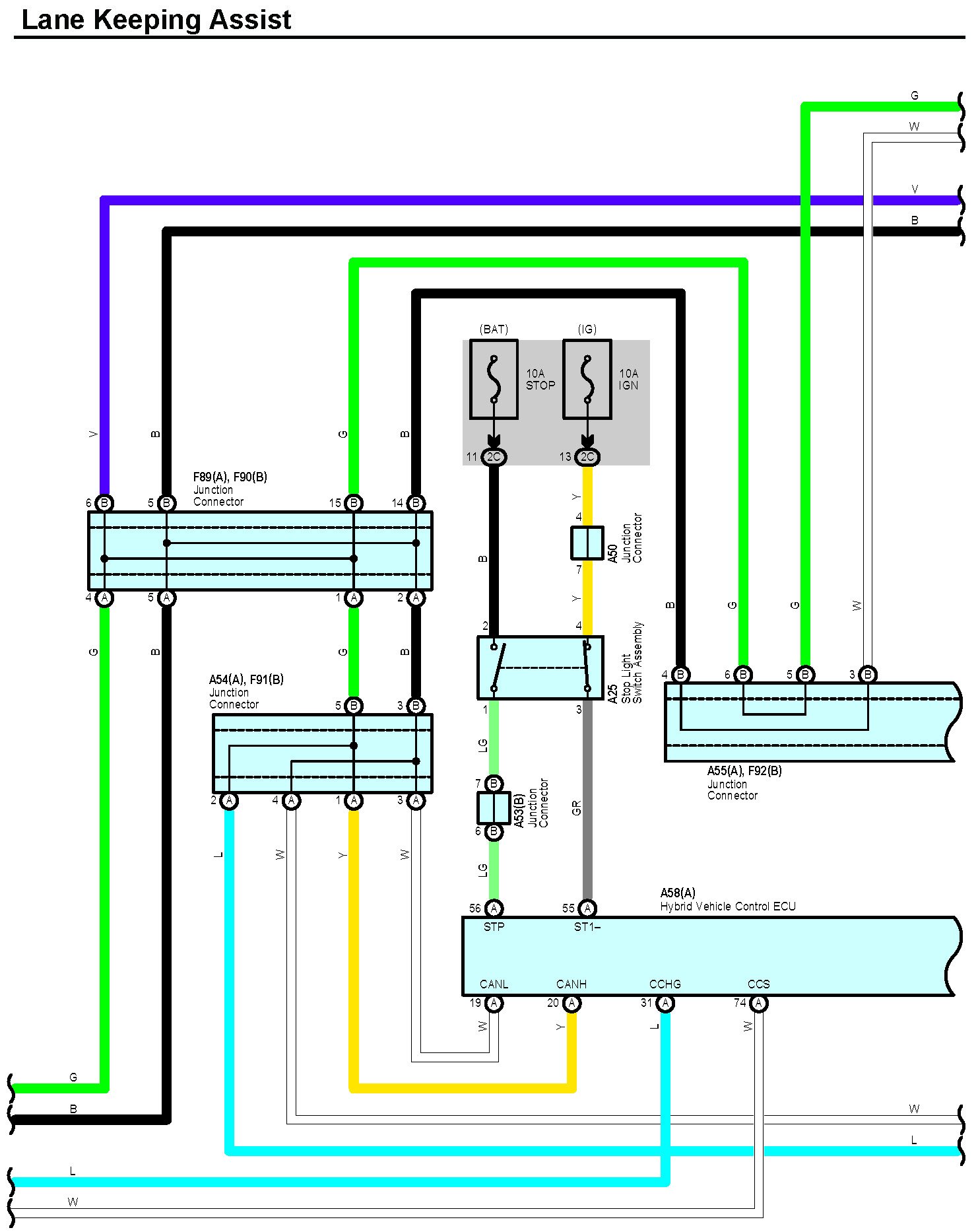

Lane Keep Assist Part 3:

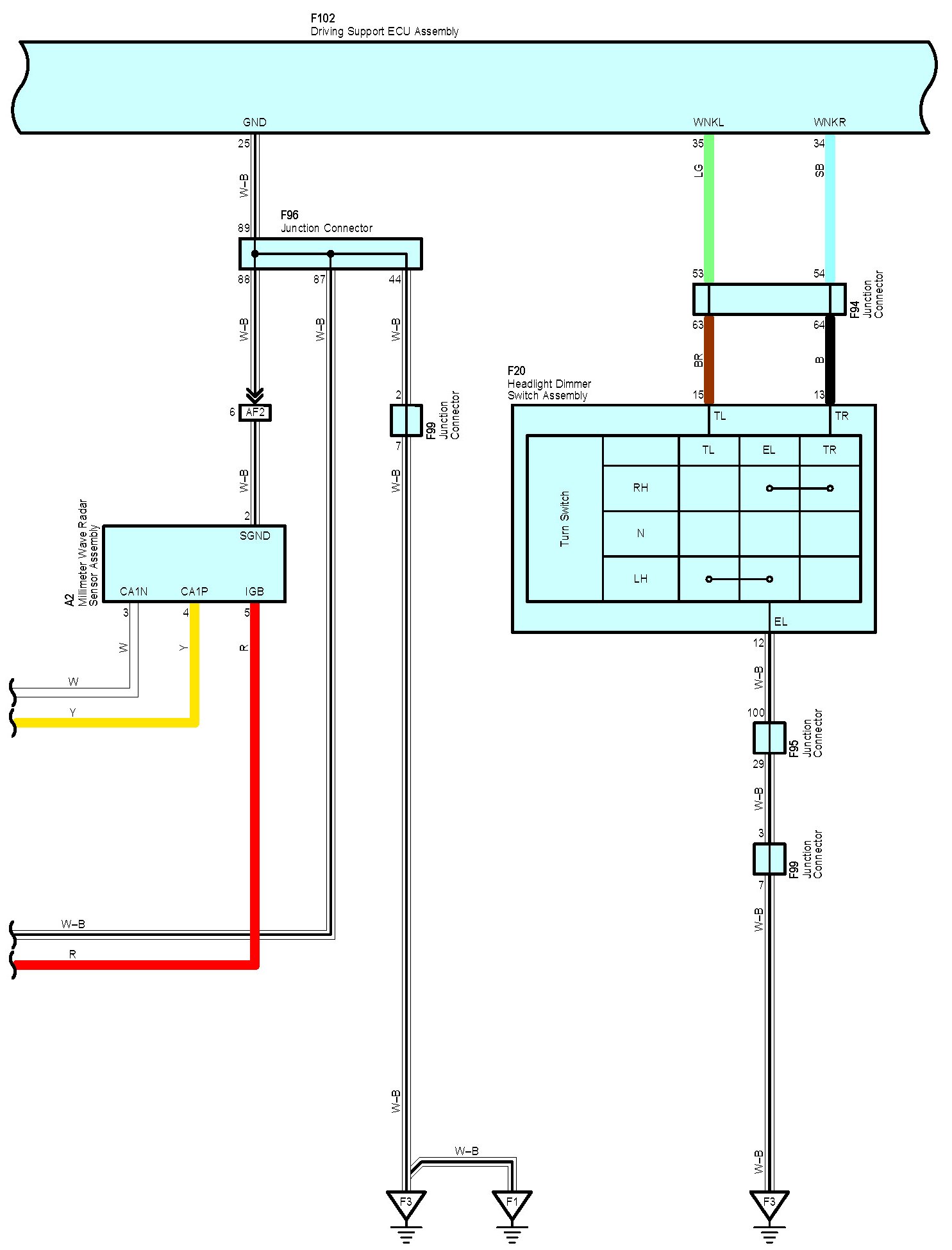

Lane Keep Assist Part 4:

Lane Keep Assist Part 5:

Lane Keep Assist Part 6:

Lane Keep Assist Part 7:

Lane Keep Assist Part 8:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
