Power Locks: Description and Operation

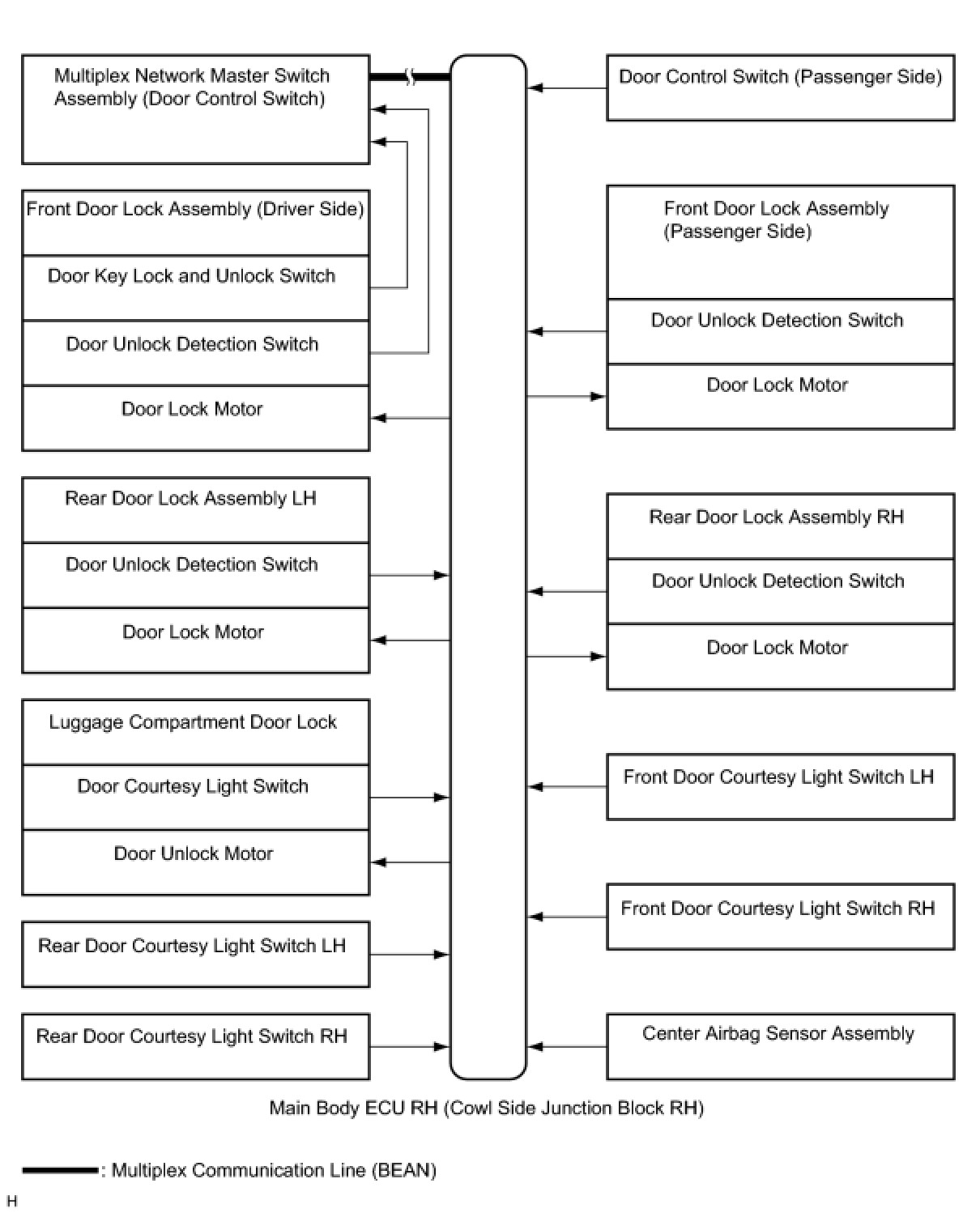

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DIAGRAM













SYSTEM DESCRIPTION

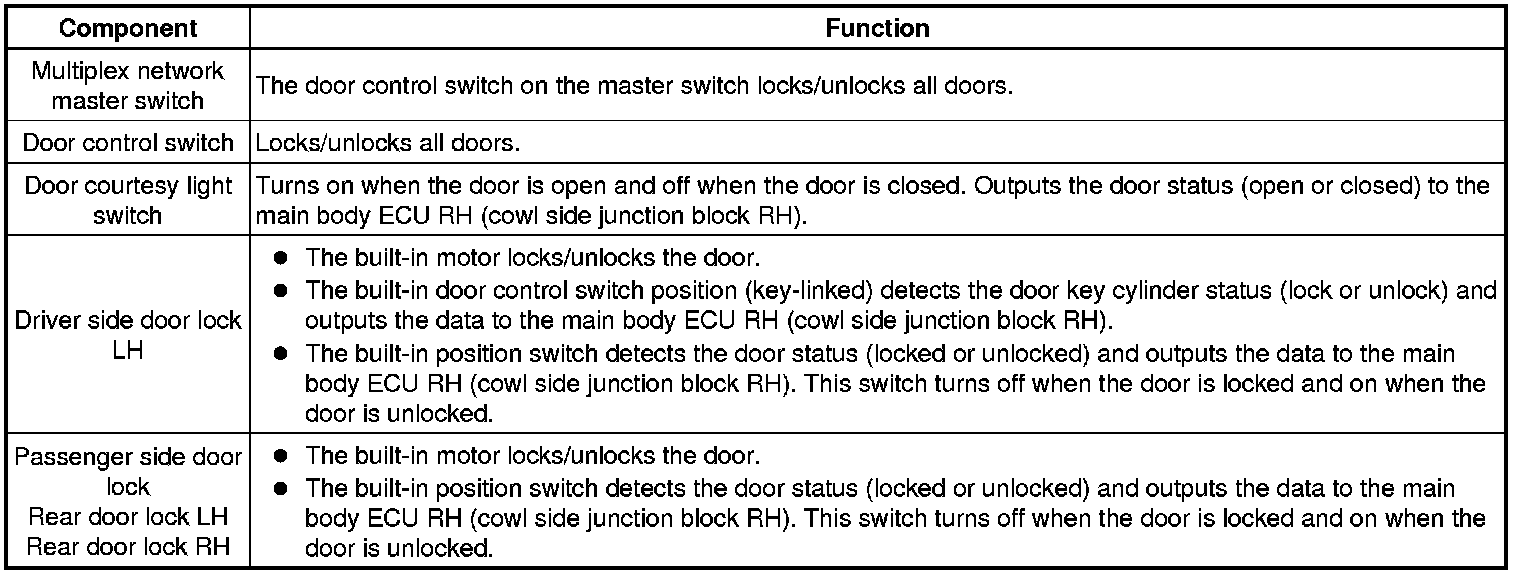

1. FUNCTION OF MAIN COMPONENTS





2. SYSTEM DESCRIPTION

(a) The power door lock control system locks/unlocks all doors.

The door control switch of the master switch uses the BEAN line to send lock/unlock request signals to the main body ECU RH (cowl side junction block RH).

The driver door key cylinder lock/unlock request signals are sent to the main body ECU RH (cowl side junction block RH) from the front door lock LH.

The passenger door control switch lock/unlock request signals are sent to the main body ECU RH (cowl side junction block RH).

The main body ECU RH (cowl side junction block RH) receives the request signals and locks/unlocks each door.

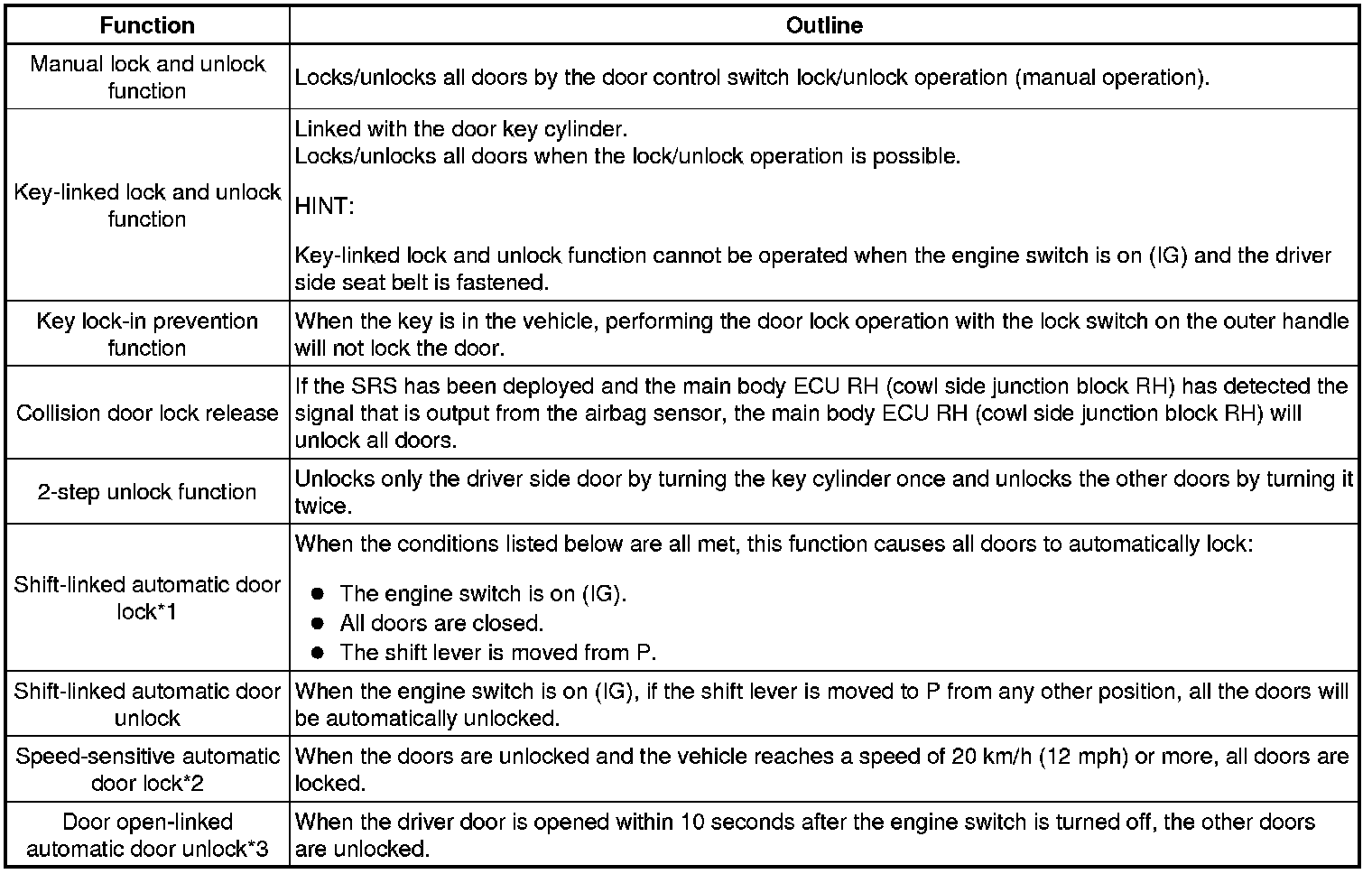

The door control system has the following functions:





*1: The default setting for models without the occupant classification system is off.

*2: The default setting for models with the occupant classification system is off.

*3: This function is set through the customize function, as it is off by default.
