Clock: Description and Operation

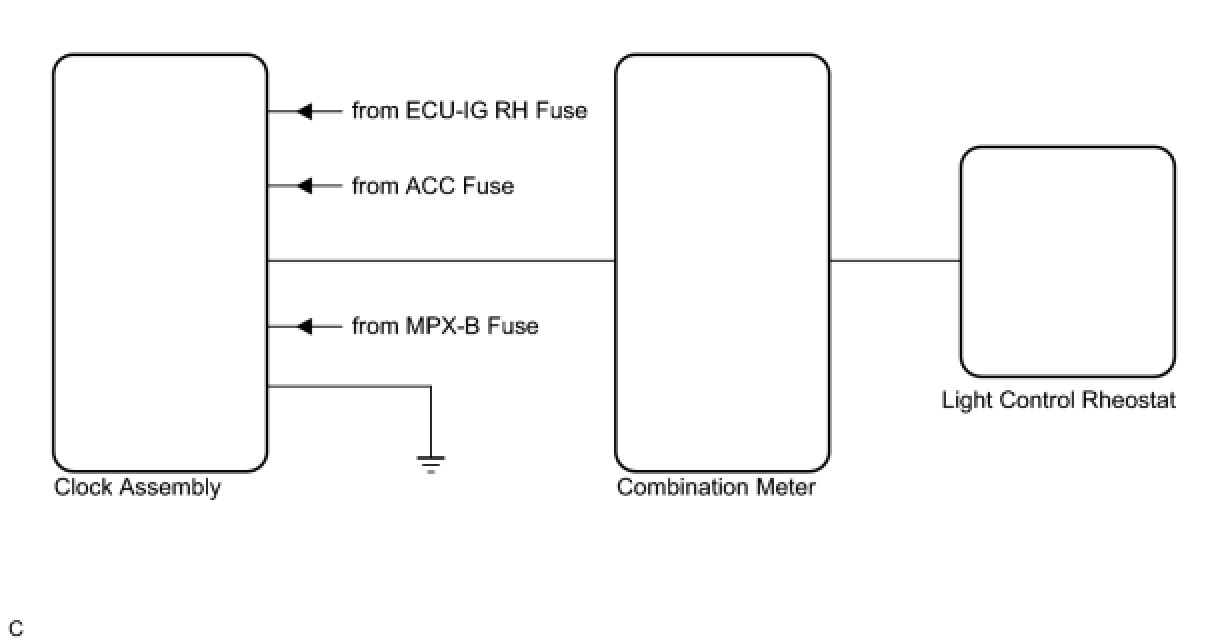

METER / GAUGE / DISPLAY: CLOCK SYSTEM: SYSTEM DIAGRAM

1. DIRECT LINE SIGNAL





2. INPUT AND OUTPUT SIGNALS OF THE CLOCK ASSEMBLY









SYSTEM DESCRIPTION

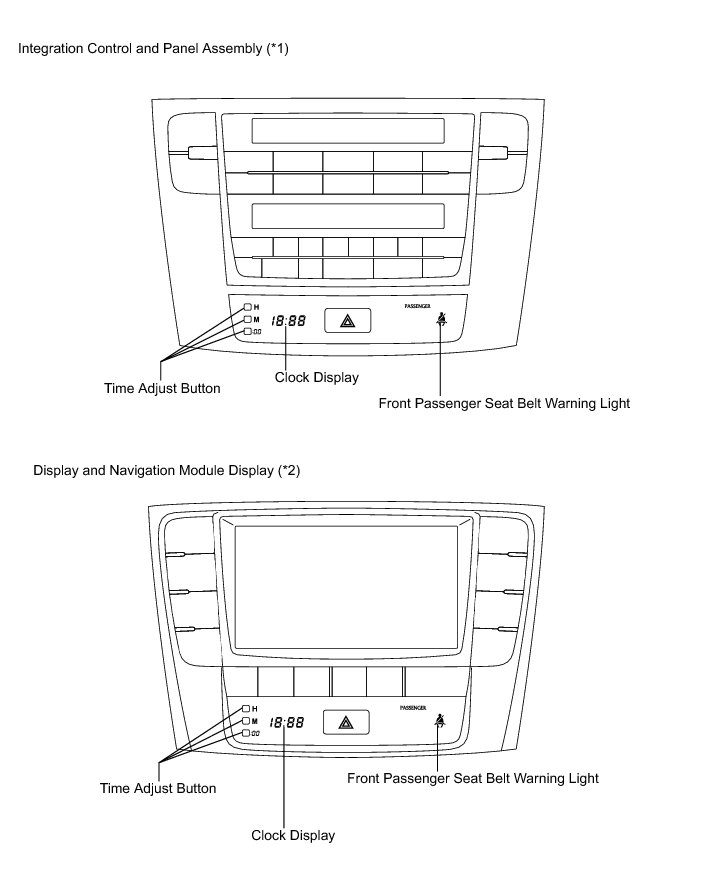

1. INTEGRATION CONTROL AND PANEL ASSEMBLY*1 OR MULTI-DISPLAY*2 (CLOCK)





HINT

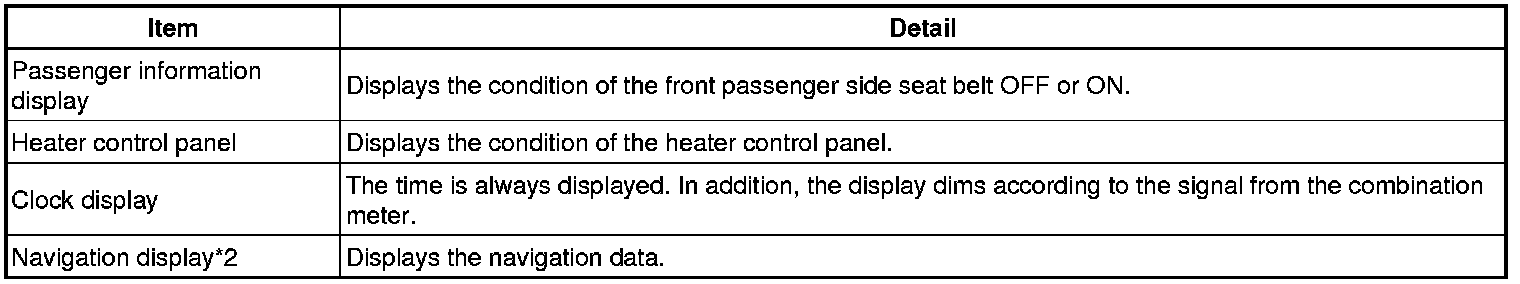

* Integration control and panel assembly*1 consists of three parts (passenger information display, clock display and heater control panel). These areas display the contents given in the table below.
* Multi-display*2 consists of four parts (navigation display, passenger information display, clock display, and heater control panel). These areas display the contents given in the table below.





*1: w/o Navigation System

*2: w/ Navigation System
