Torque Specifications

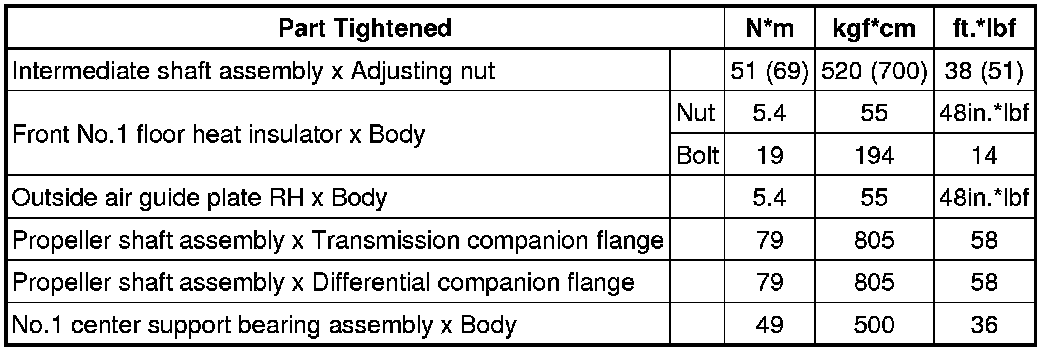

SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: TORQUE SPECIFICATIONS

Propeller Shaft





( ): For use without SST
