Cylinder Head Assembly: Specifications

Cylinder head bolts

Standard outside diameter

10.85 to 11.00 mm (0.427 to 0.433 in.)

Minimum outside diameter

10.6 mm (0.417 in.)

If the diameter is less than the minimum, replace the cylinder head set bolt.

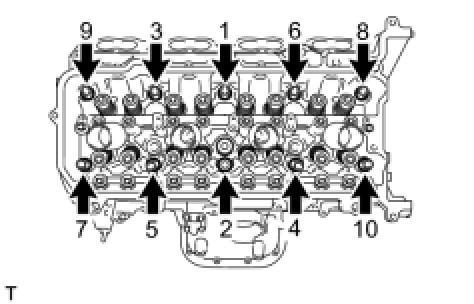

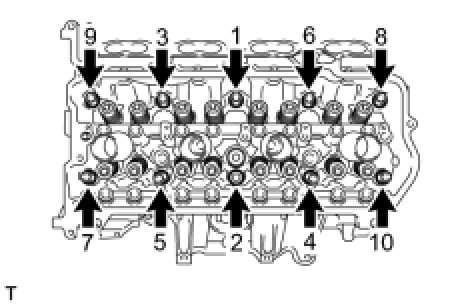

Step 1 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2 90°
Step 3 another 90°





Left side





Right side

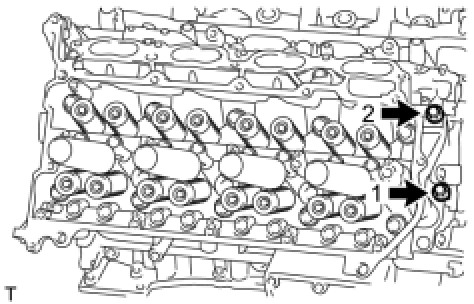

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)





Left side





Right side

Standard warpage





Maximum warpage 0.10 mm (0.00394 in.)

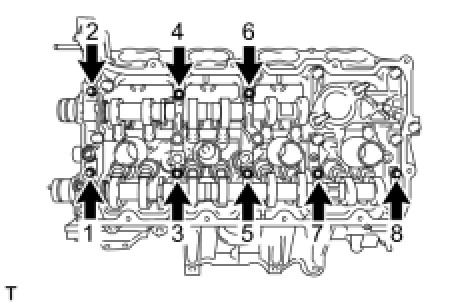

Camshaft





Left side

RH:

Right side

Torque 16 Nm (163 kgf-cm, 12 ft lb)

LH:

Left hand

RH:

Right hand

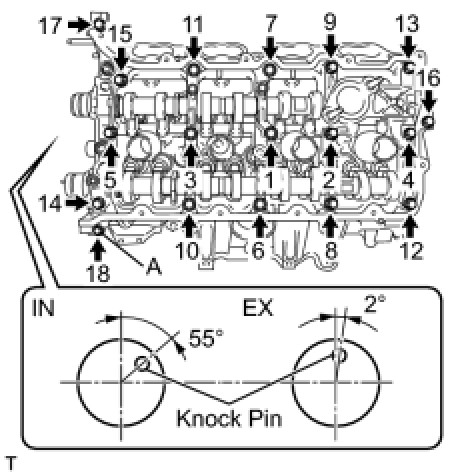

Bolt A 10 Nm (102 kgf-cm, 7 ft-lbf)
Except bolt A 30 Nm (306 kgf-cm, 22 ft-lbf)
