Engine Hood / Door

SERVICE SPECIFICATIONS: ENGINE HOOD / DOOR: TORQUE SPECIFICATIONS

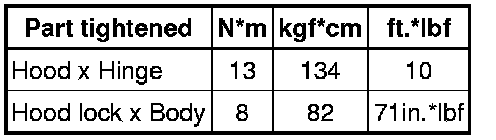

HOOD

HOOD SUPPORT ROD

HOOD LOCK CONTROL CABLE ASSEMBLY

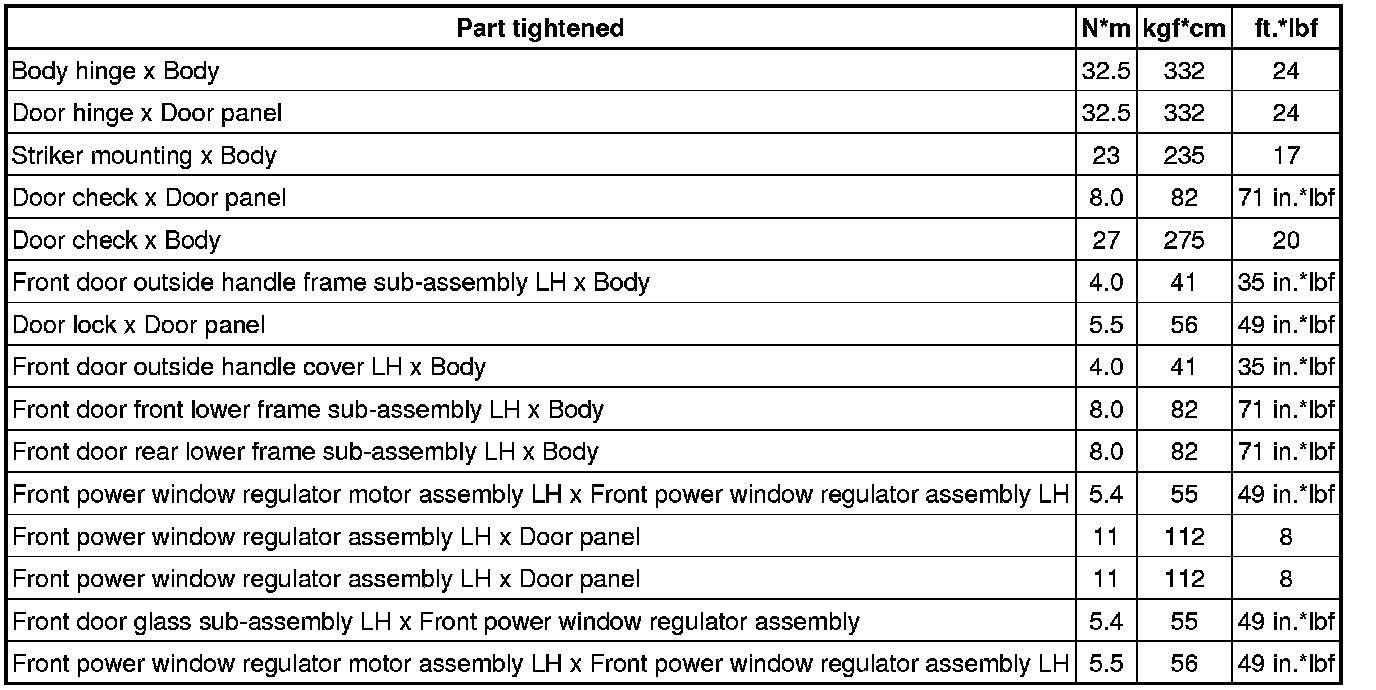

FRONT DOOR

REAR DOOR

LUGGAGE COMPARTMENT DOOR

TRUNK LID ACTUATOR

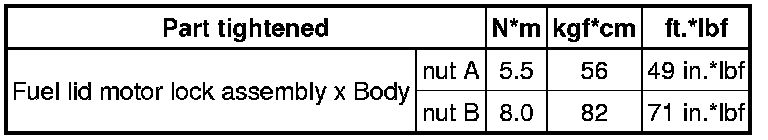

FUEL LID OPENER MOTOR ASSEMBLY
