Service Data





SERVICE SPECIFICATIONS: DIFFERENTIAL: SERVICE DATA

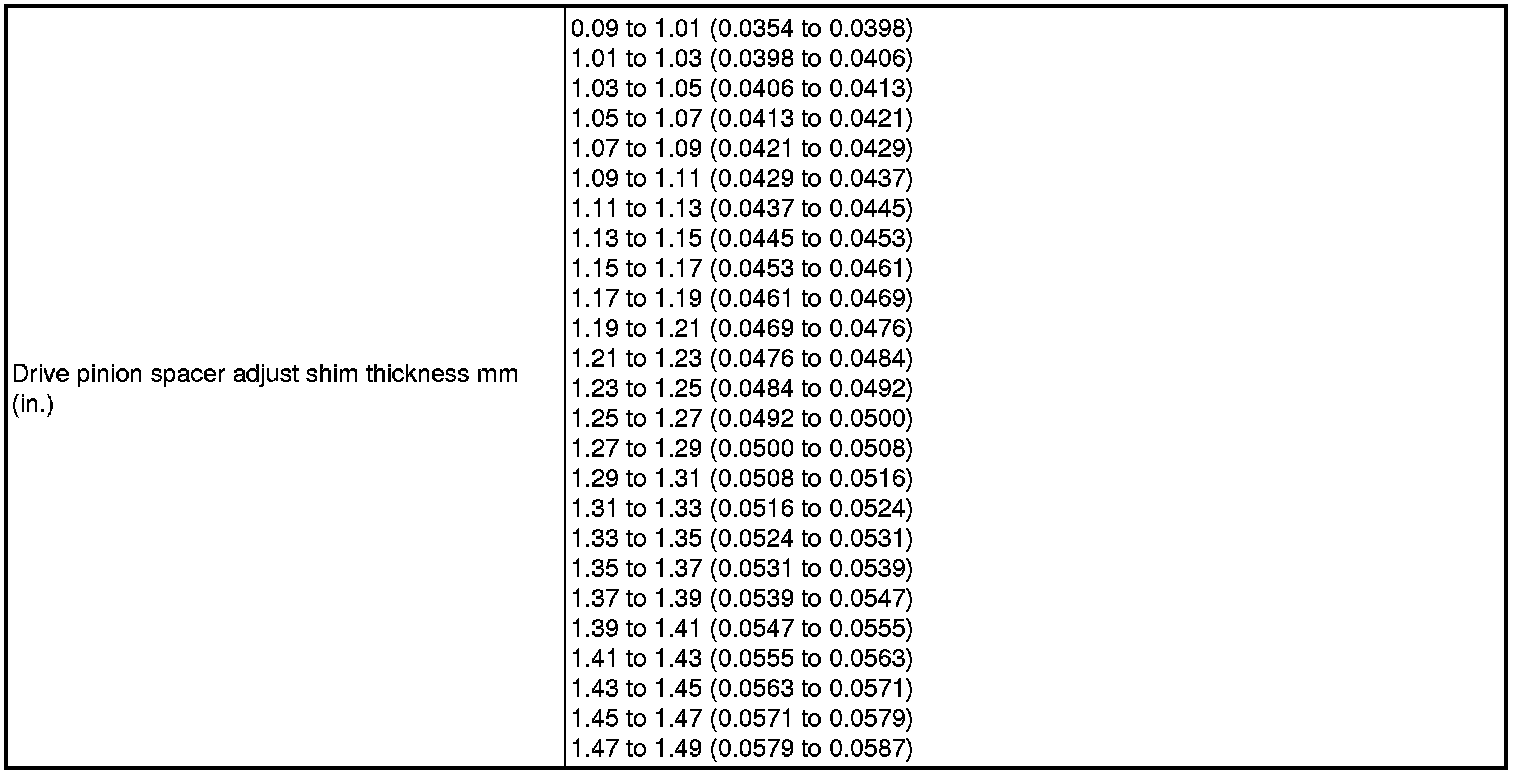

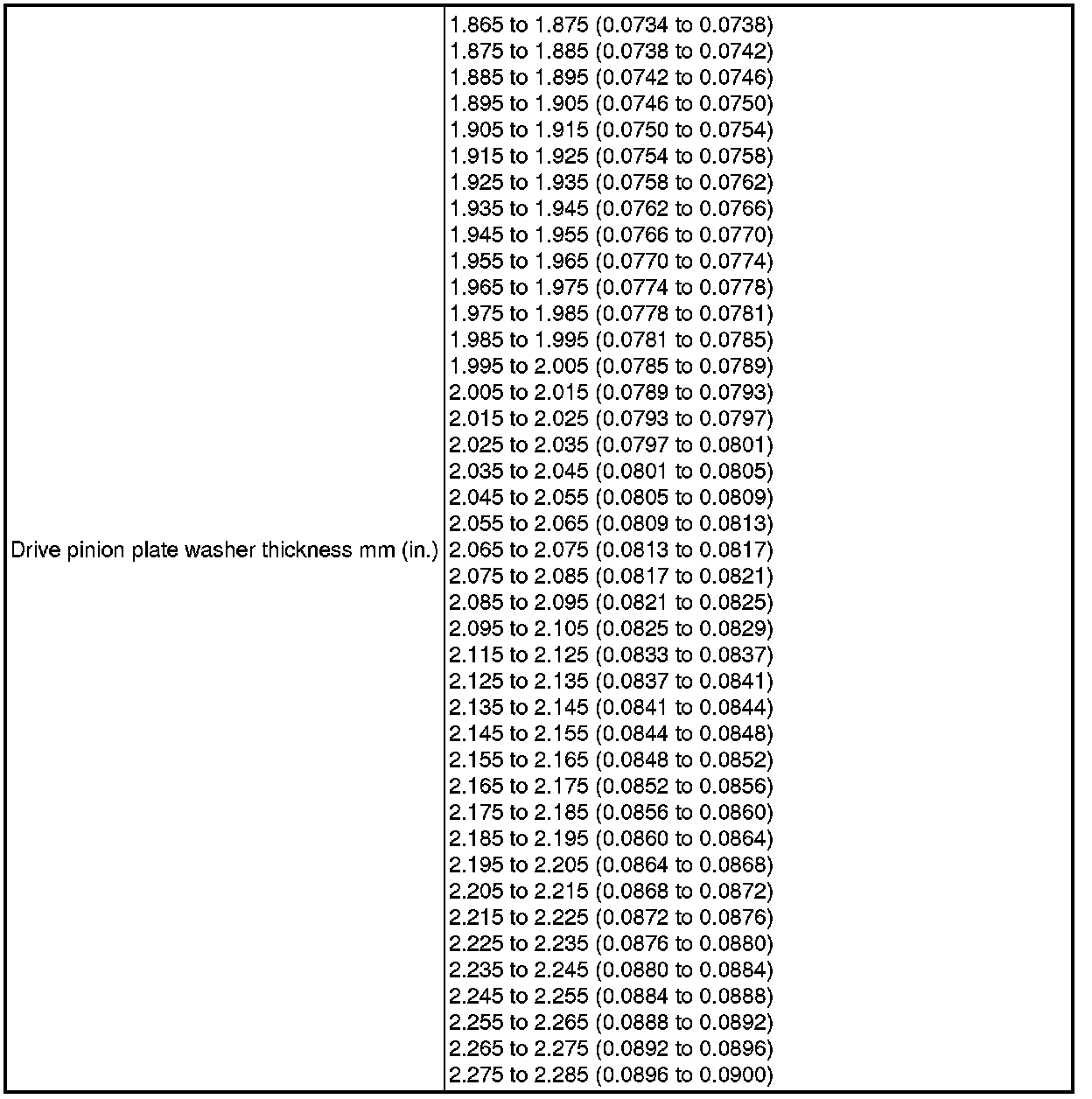

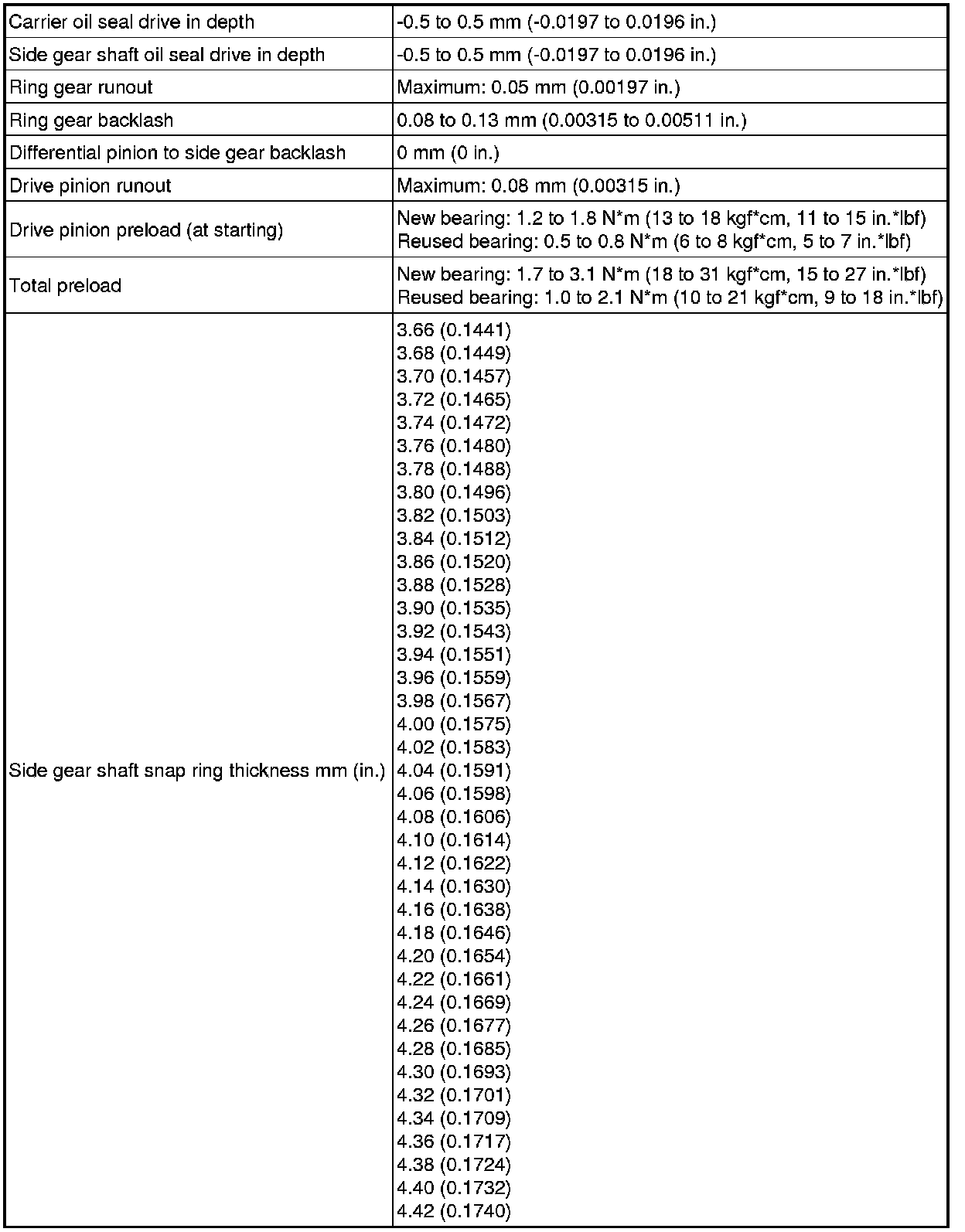

Front differential













Rear differential
