Pressure, Vacuum and Temperature Specifications

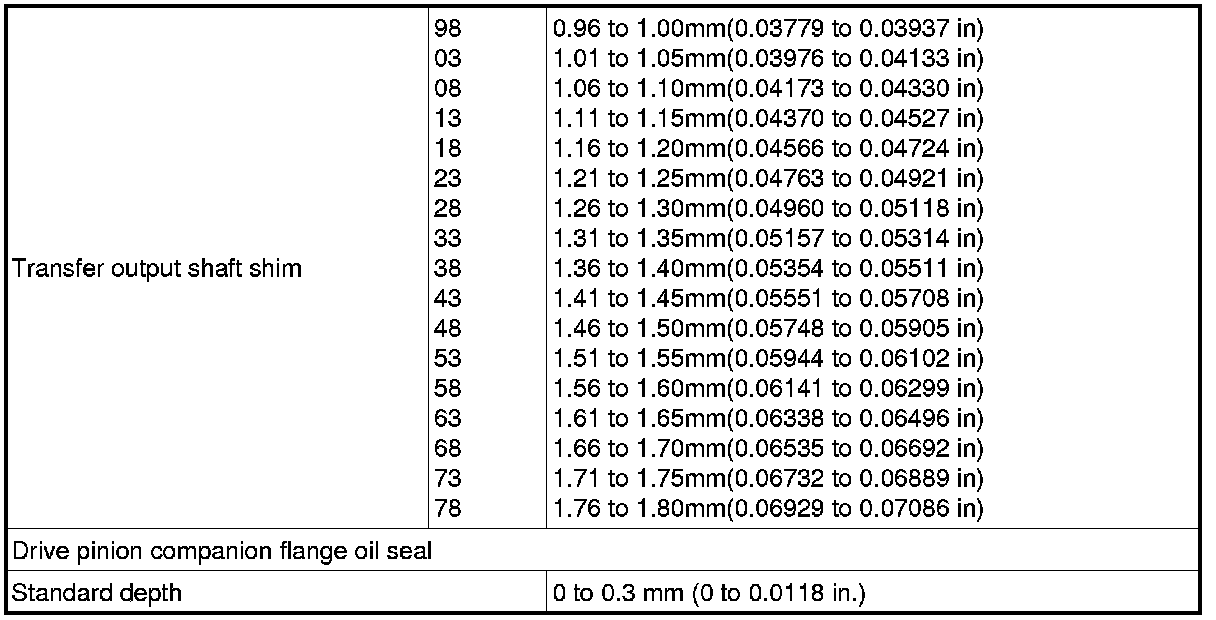

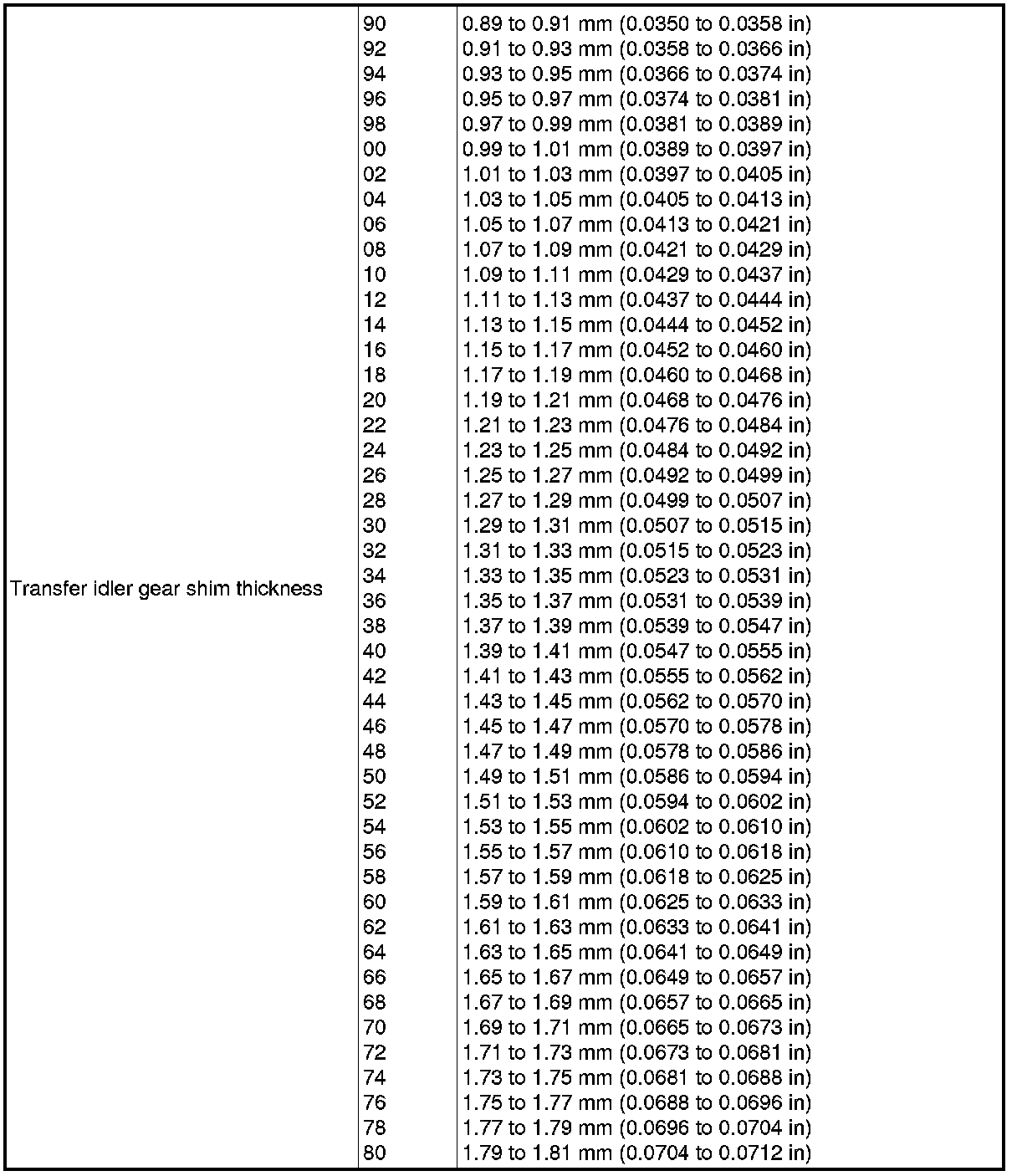

SERVICE SPECIFICATIONS: LF1A TRANSFER: SERVICE DATA

Transfer Case Front Oil Seal





Transfer Case Rear Oil Seal





Transfer Assembly
