Windshield Deicer System

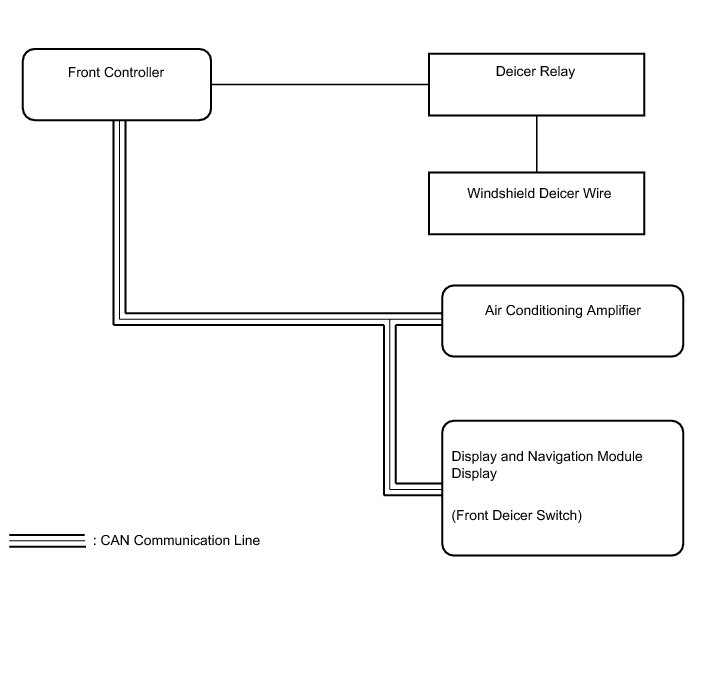

WINDSHIELD / WINDOW GLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DIAGRAM





Communication table









SYSTEM: SYSTEM DESCRIPTION

1. GENERAL

The windshield deicer system's thin heater wires are attached to the inside of the windshield glass and deice the front window surface quickly. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes.

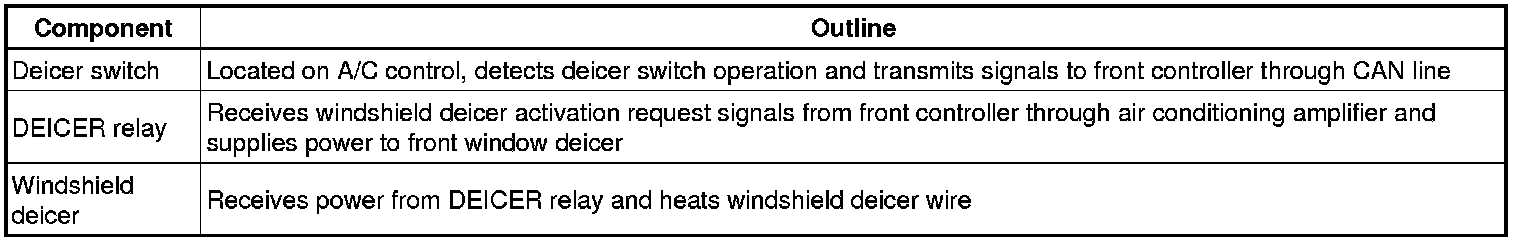

2. FUNCTION OF MAIN COMPONENT

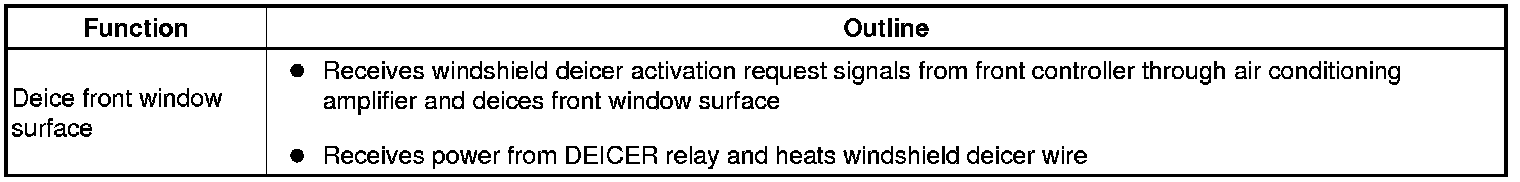

3. DESCRIPTION
