Torque Specifications
Torque Specifications

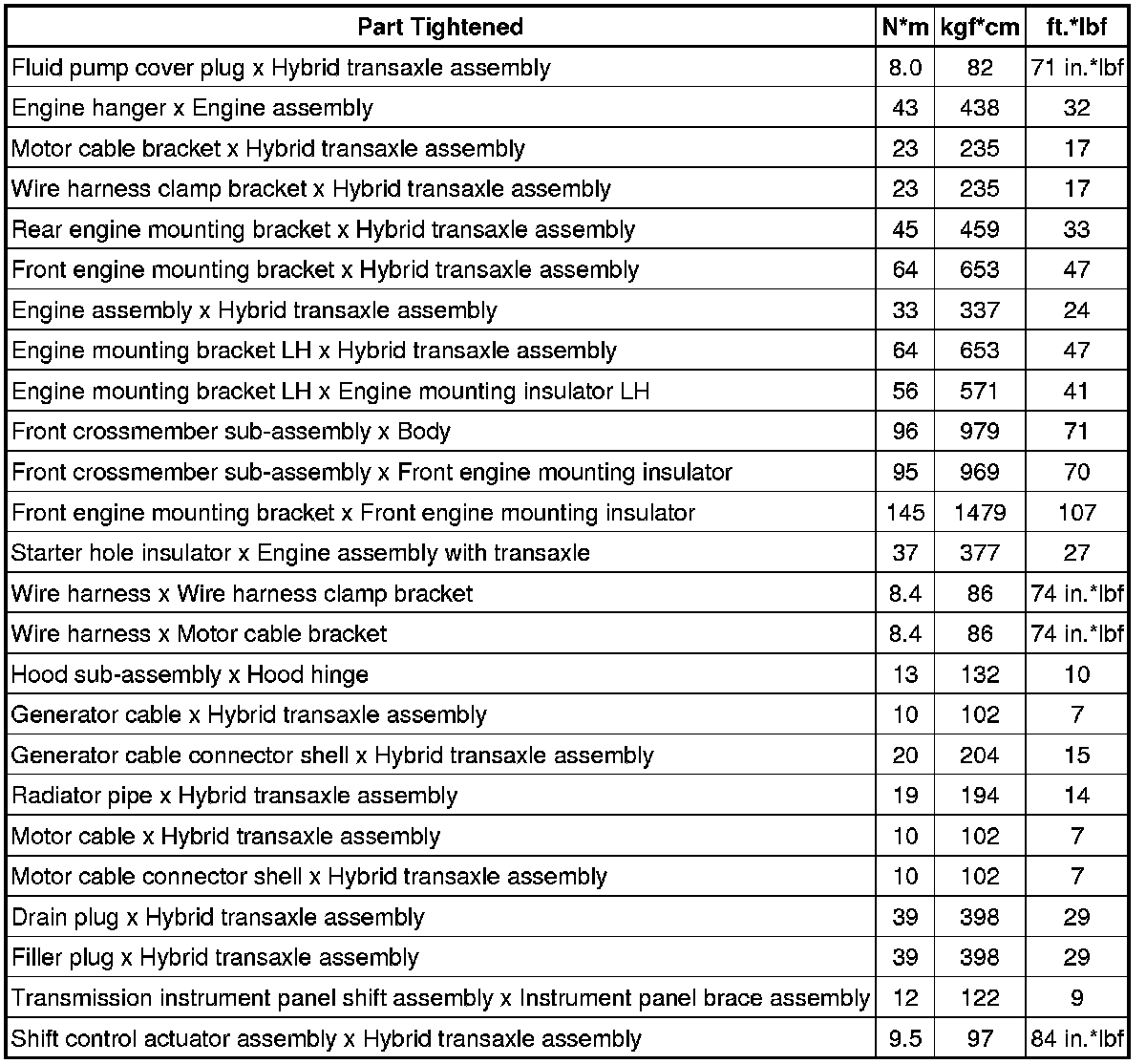

SPECIFICATIONS: P410 HYBRID TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS
