56 - 60 - Position of Parts in Body
56 - 60 - Position of Parts in Body

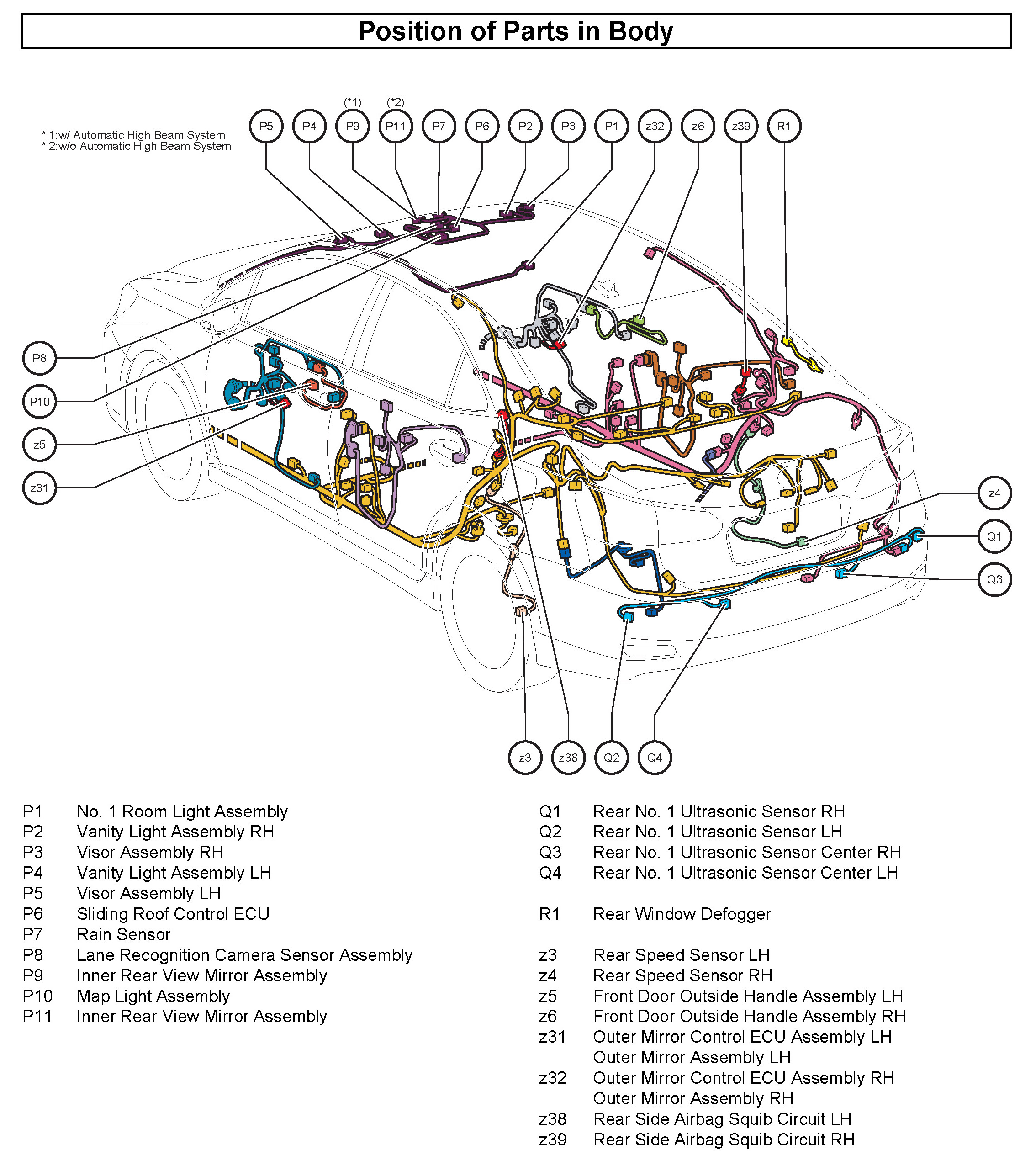

56 - Position of Parts in Body:

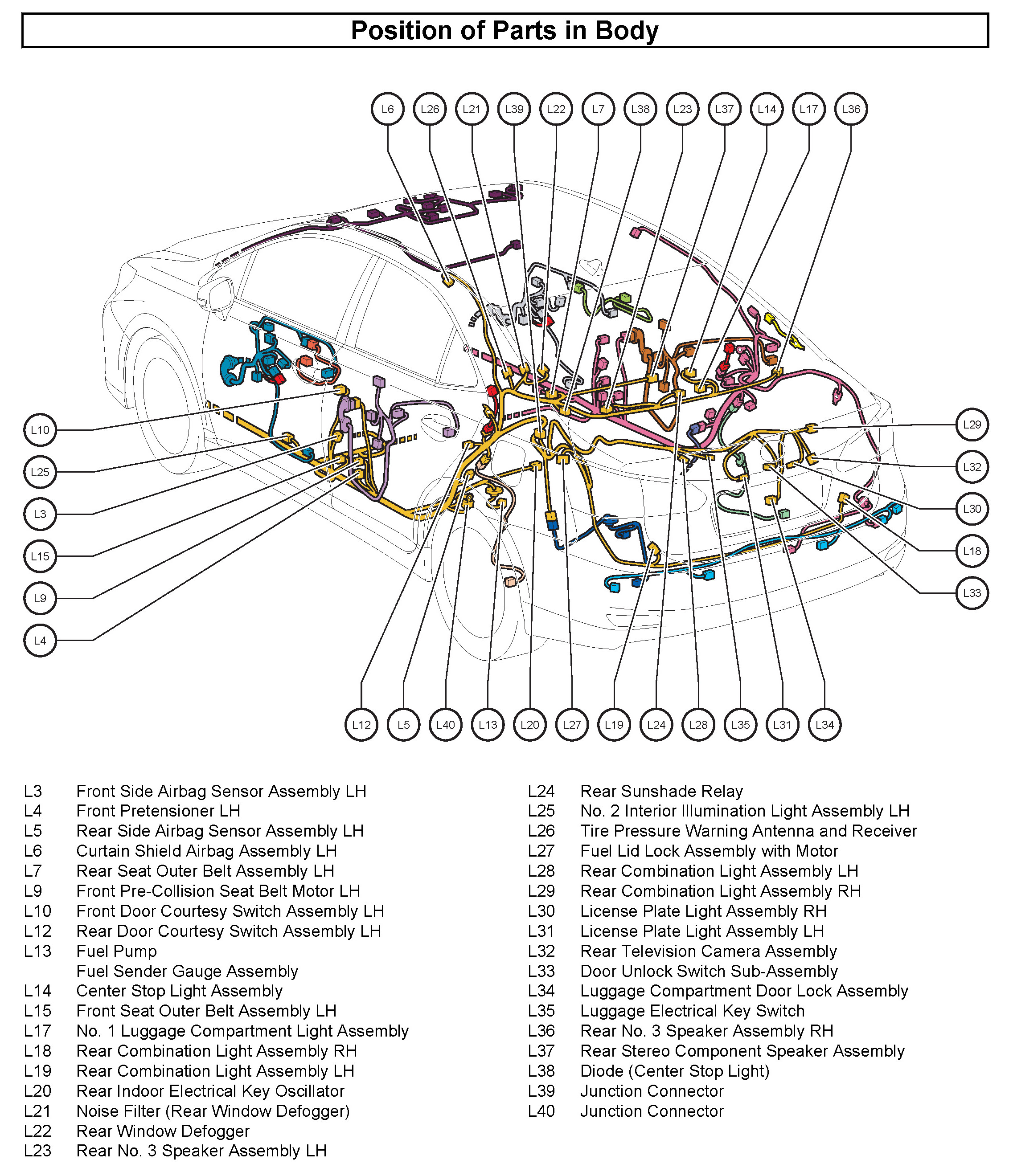

57 - Position of Parts in Body:
58 - Position of Parts in Body:
59 - Position of Parts in Body:
60 - Position of Parts in Body:
