Removal





BRAKE CONTROL: BRAKE CONTROL POWER SUPPLY: REMOVAL

NOTICE:
While the battery is connected, even if the power switch is OFF, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal or open/close the doors while the battery is connected.

1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Removal

2. REMOVE BATTERY SERVICE HOLE COVER LH Removal

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
* w/ Navigation System (for HDD):
After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

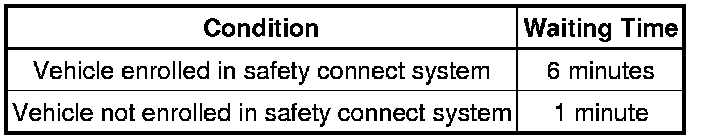

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. REMOVE ROPE HOOK Removal

5. REMOVE ROPE HOOK ASSEMBLY Removal

6. REMOVE DECK TRIM SIDE BOARD RH Removal

7. REMOVE NO. 1 COOLER COVER (w/ Air Conditioning System) Removal

8. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Removal

9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal

10. REMOVE DECK TRIM SIDE BOARD LH (w/o Spare Tire) Removal

11. REMOVE DECK BOARD ASSEMBLY (w/o Spare Tire)

12. REMOVE TOOL BOX (w/o Spare Tire)

13. REMOVE REAR FLOOR FINISH PLATE Removal

14. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Removal

15. REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY

CAUTION:
Immediately after removing the brake control power supply from the vehicle, there may be an electrical charge left in the internal capacitor. If planning to inspect the inside of the brake control power supply, leave it as is for more than 24 hours (to discharge it) after removing it from the vehicle. Then perform the inspection.

(a) Disconnect the connector.





(b) Remove the 2 nuts and brake control power supply.

16. REMOVE NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

(a) Remove the 4 bolts and 2 brackets.





NOTICE:
Do not drop the brake control power supply. If the brake control power supply has been dropped replace the brake control power supply with a new one.
