System Diagram

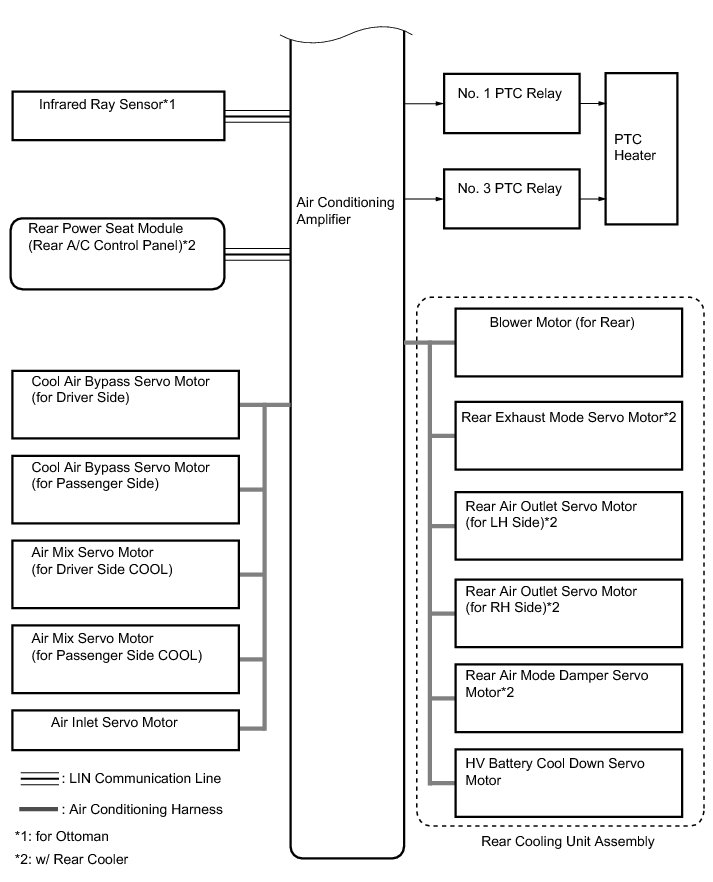

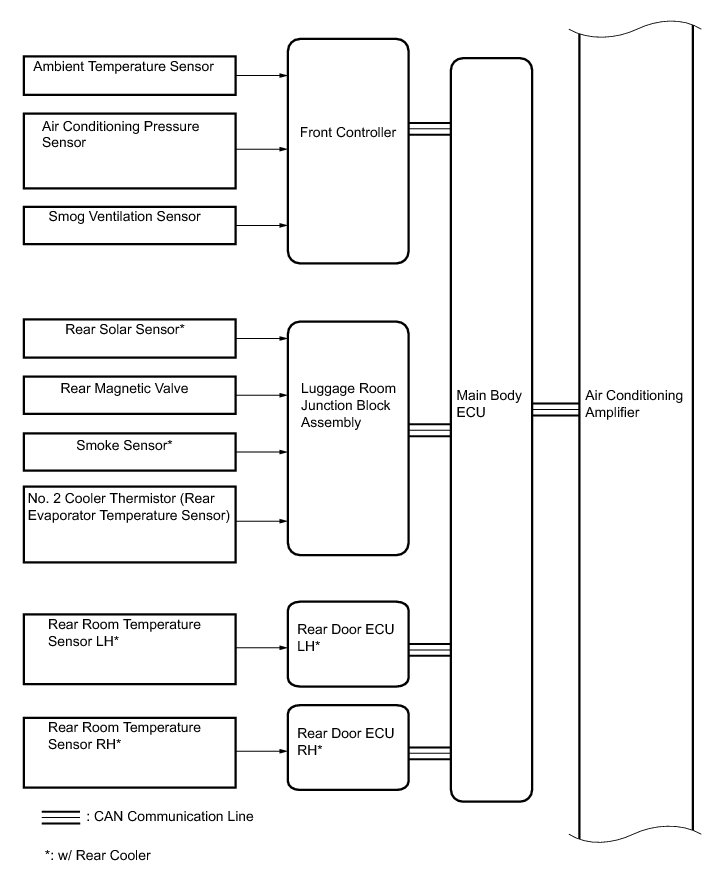

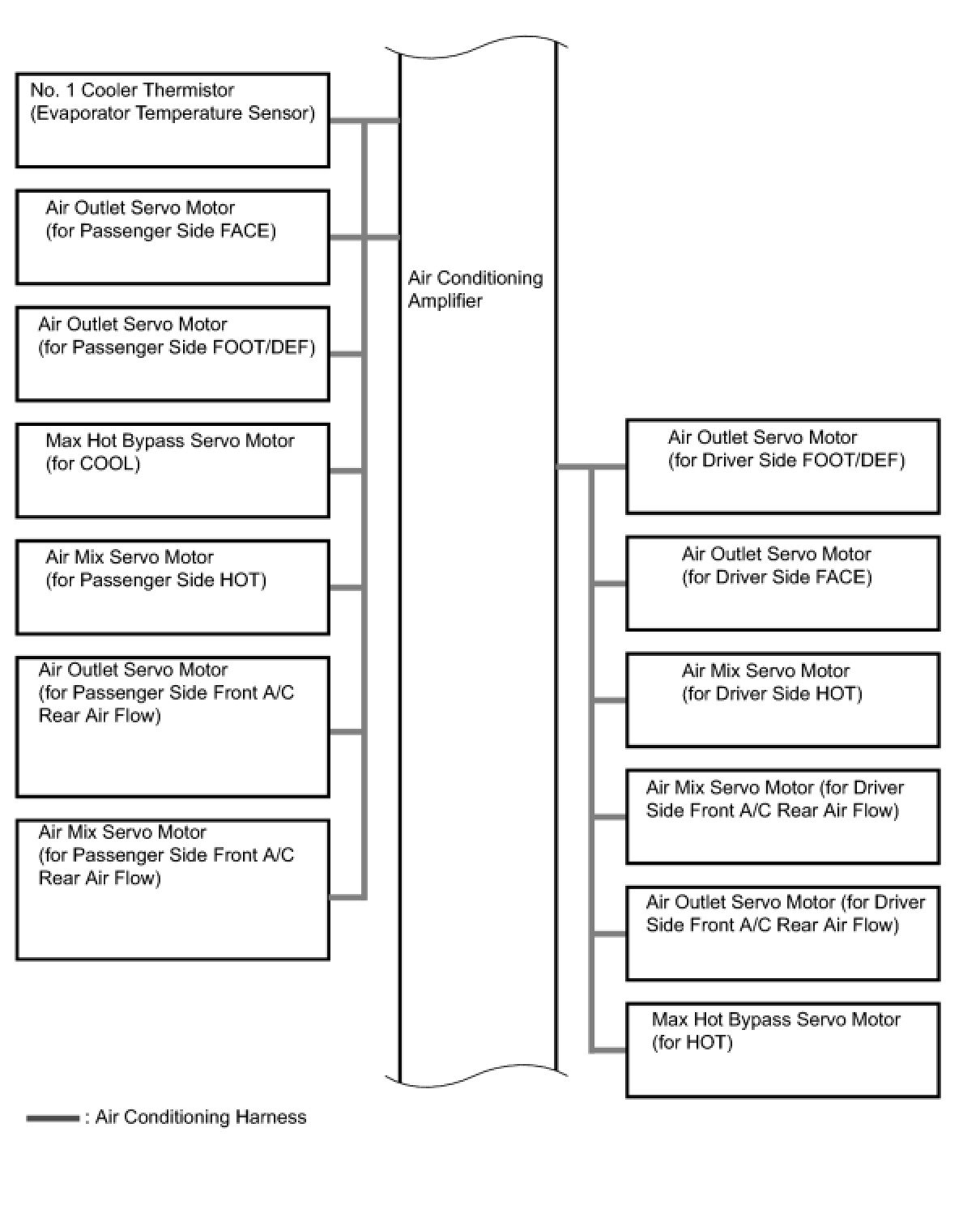

AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DIAGRAM

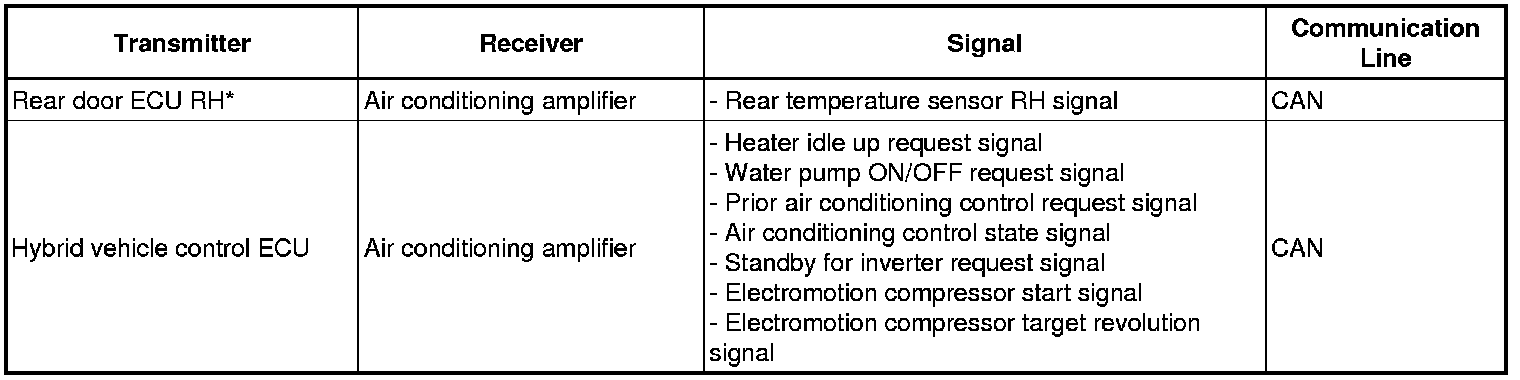

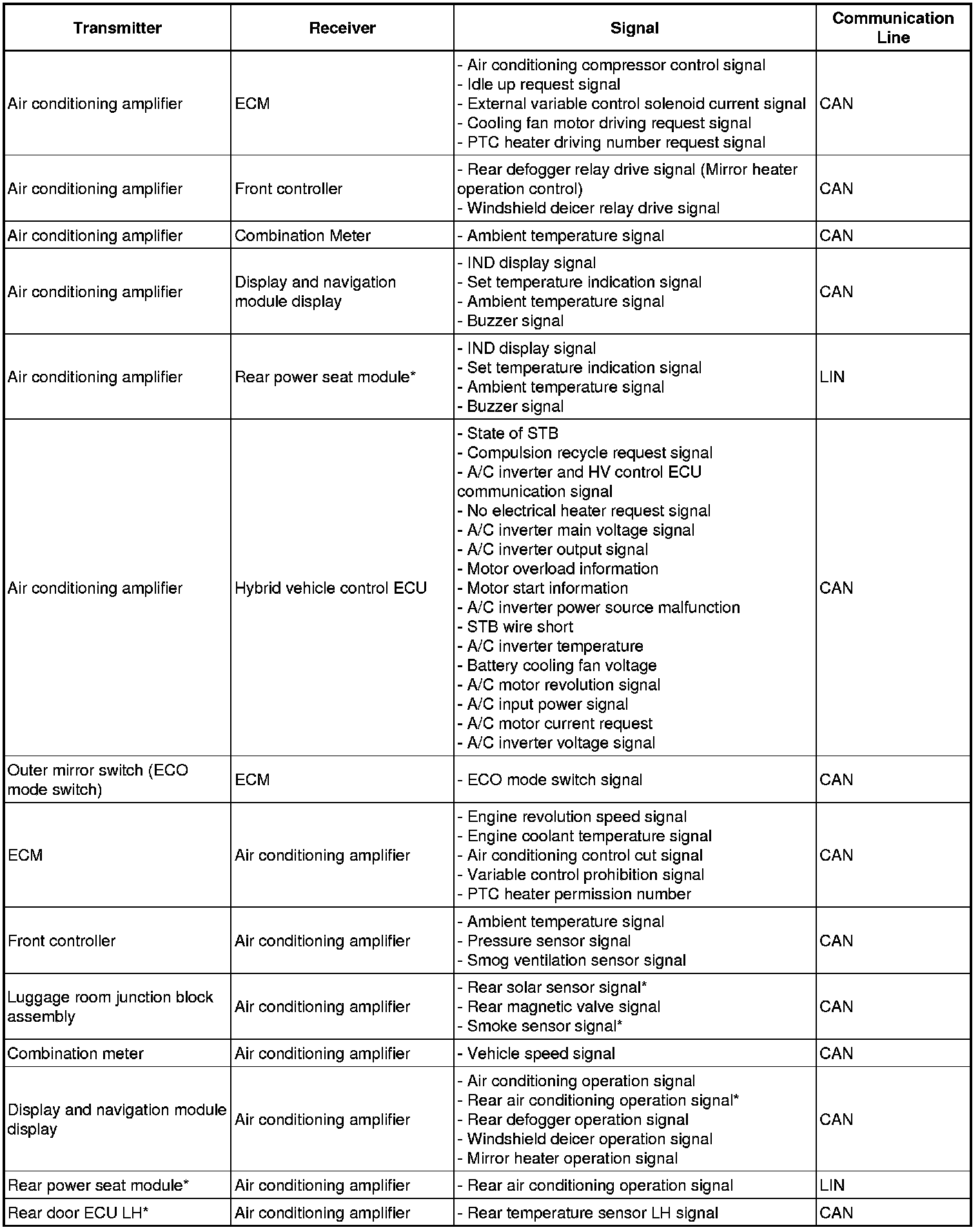

Communication table









* *: w/ Rear Cooler
