Driver / Vehicle Information Display Switch: Testing and Inspection

METER: TRIP SWITCH: INSPECTION

1. INSPECT TRIP SWITCH

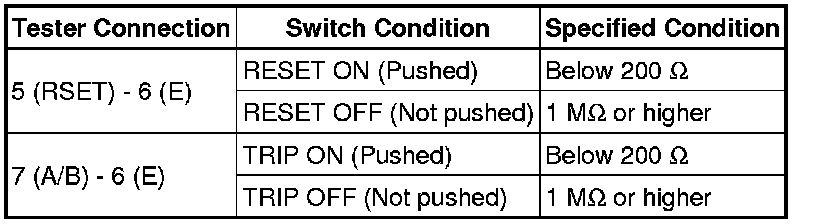

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the switch.

(b) Inspect the switch illumination.

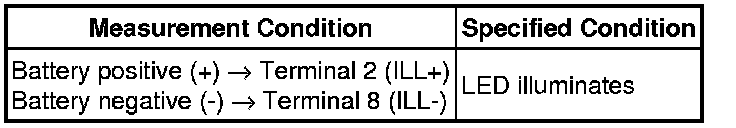

(1) Apply battery voltage between the terminals of the light, and check the operation of the switch.

OK:





NOTICE:
* If the positive (+) lead and the negative (-) lead are incorrectly connected, the LED will not illuminate.
* If the voltage is too low, the LED will not illuminate.

If the result is not as specified, replace the switch.
