SERVICE SPECIFICATIONS: 2UR-FSE EXHAUST: TORQUE SPECIFICATIONS

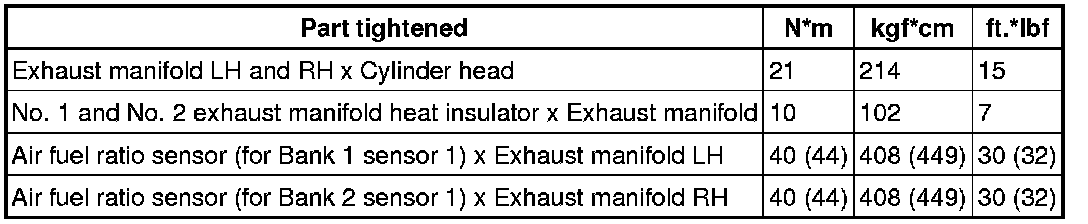

Exhaust manifold
( ): For use without SST

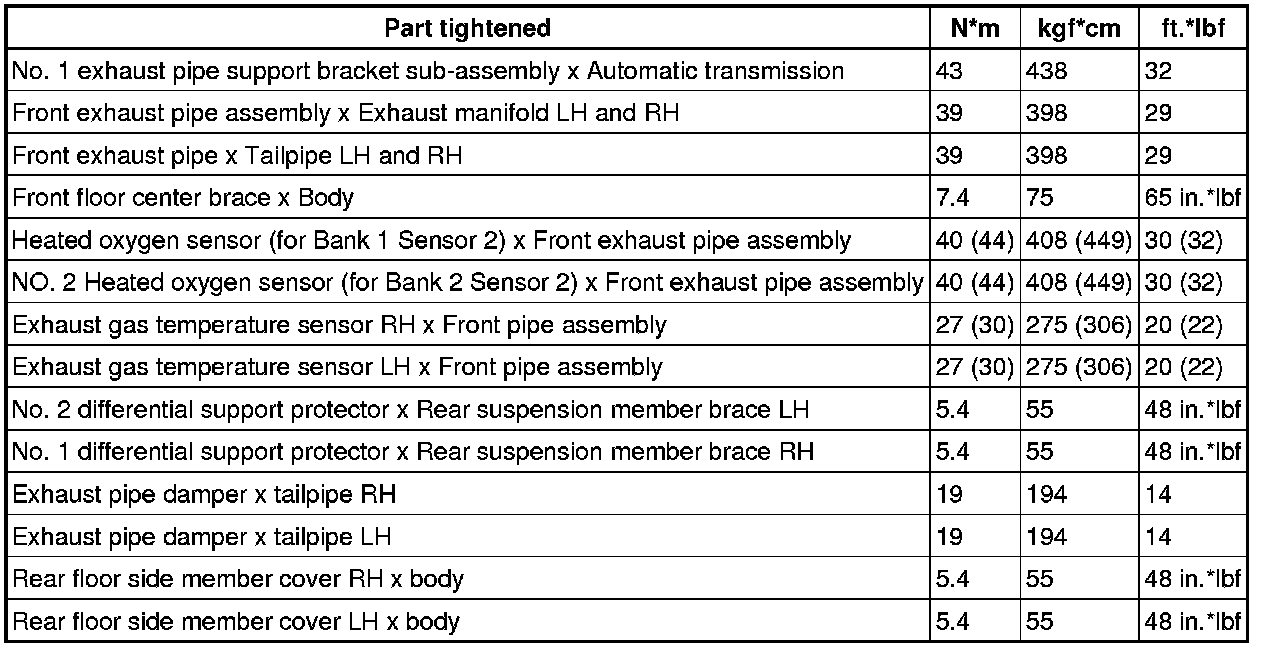

Exhaust pipe
( ): For use without SST
