Washer Fluid Level Warning Switch Circuit

WIPER AND WASHER: WIPER AND WASHER SYSTEM: Washer Fluid Level Warning Switch Circuit
- Washer Fluid Level Warning Switch Circuit

DESCRIPTION

The Front Controller receives washer fluid level warning switch information, and sends it through CAN line to the combination meter. The combination meter receives this information, and turns on the washer fluid level warning switch when the washer fluid becomes low.

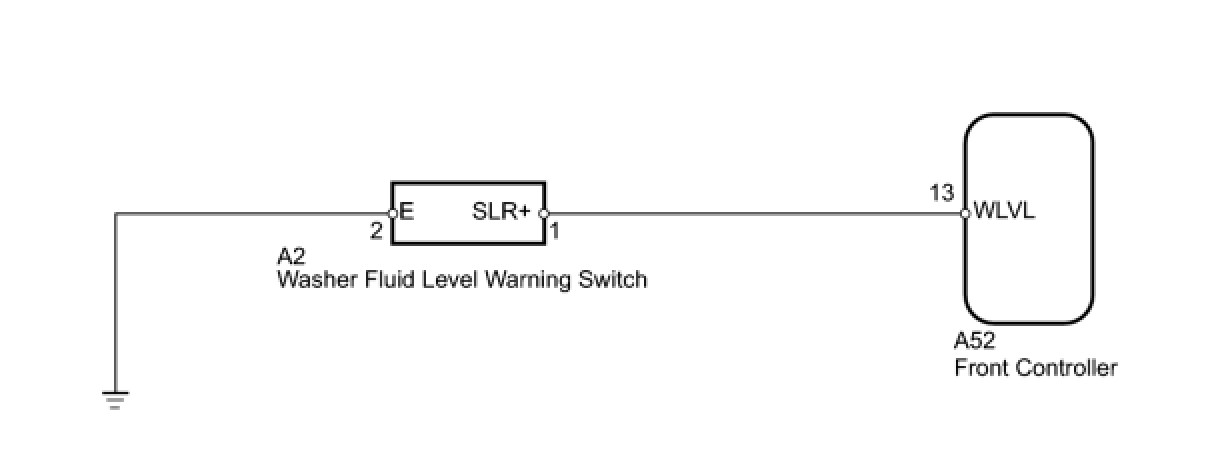

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (WASHER FLUID LEVEL WARNING SWITCH)

(a) Check the Data List for proper functioning of the washer fluid level warning switch.

Body No. 5:





OK:

The display is as specified in the normal condition.

NG -- INSPECT WASHER FLUID LEVEL WARNING SWITCH

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

2. INSPECT WASHER FLUID LEVEL WARNING SWITCH

(a) Remove the warning switch.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





HINT
When the fluid volume is between 600 and 800 cc (36.6 cu.in. and 48.8 cu.in.) the level warning switch may be on or off.

NG -- REPLACE WASHER FLUID LEVEL WARNING SWITCH
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (WARNING SWITCH - FRONT CONTROLLER AND BODY GROUND)

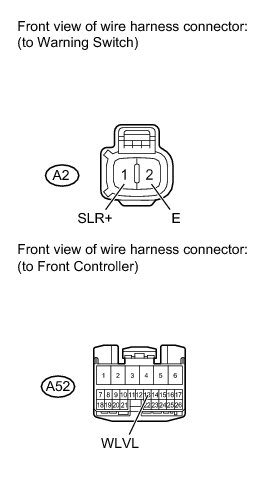

(a) Disconnect the A2 switch connector.





(b) Disconnect the A52 front controller connector.

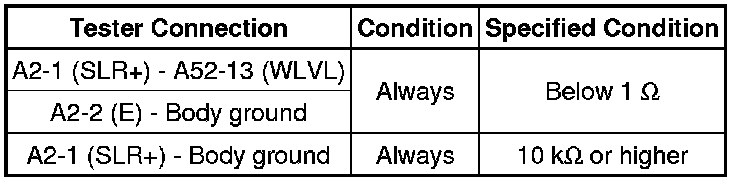

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE FRONT CONTROLLER
