Windshield Washer Motor: Testing and Inspection

WIPER AND WASHER: WASHER MOTOR: INSPECTION

1. INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

HINT
This check should be performed with the front washer motor and pump installed to the washer jar.

(a) Fill the washer jar with washer fluid.





(b) Apply battery voltage to the washer motor and check the operation of the windshield washer motor and pump assembly.

OK:





If the result is not as specified, replace the windshield washer motor and pump assembly.

2. INSPECT HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY

HINT
This check should be performed with the headlight cleaner motor and pump installed to the washer jar.

(a) Fill the washer jar with washer fluid.

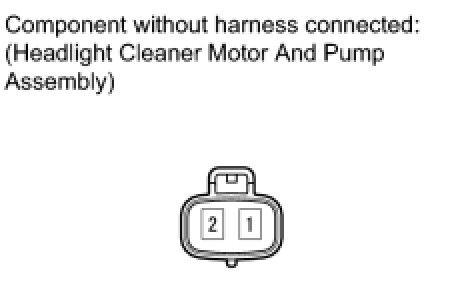

(b) Apply battery voltage to the headlight cleaner motor and pump and check the operation of the headlight cleaner motor and pump assembly.

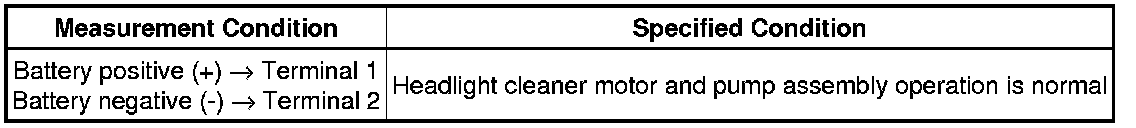

OK:





If the result is not as specified, replace the headlight cleaner motor and pump assembly.
