Instrument Cluster (IC) Lens
INSTRUMENT CLUSTER LENSRemoval and Installation
1. Remove the instrument cluster.

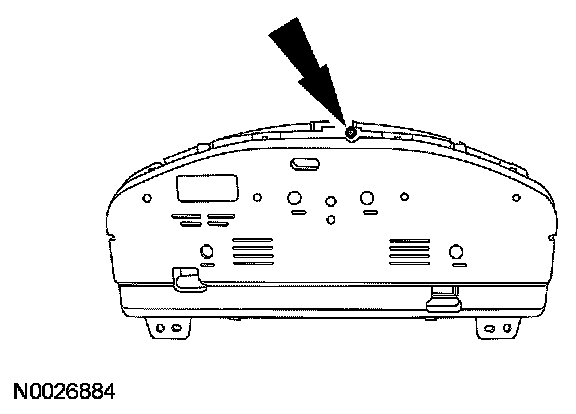

2. Remove the screw.
3. Release the 8 tabs and remove the lens.
4. To install, reverse the removal procedure.
Removal and Installation
1. Remove the instrument cluster.
2. Remove the screw.
3. Release the 8 tabs and remove the lens.
4. To install, reverse the removal procedure.
