Control Assembly: Service and Repair

CLIMATE CONTROL ASSEMBLY

Removal and Installation
1. Remove the instrument cluster finish panel.

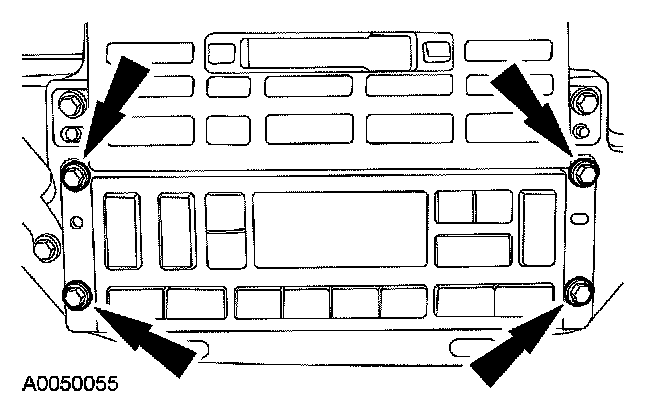

2. Remove 4 climate control assembly screws.

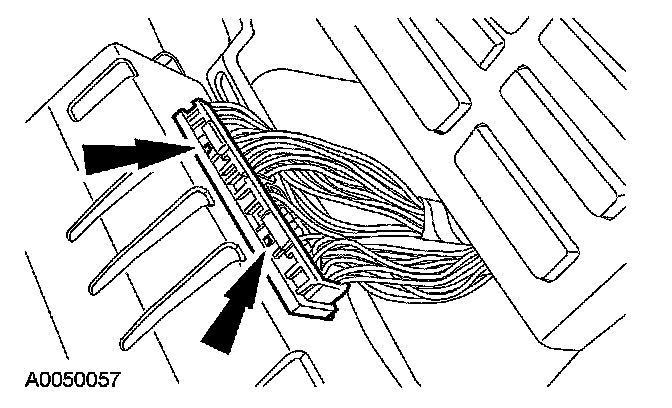

3. Disconnect the 2 climate control assembly electrical connectors and remove the climate control assembly.
4. To install, reverse the removal procedure.
