Instrument Cluster Finish Panel

INSTRUMENT CLUSTER FINISH PANEL







Removal and Installation
1. Position the shifter lever in the 1st gear position.

2. NOTE: Ignition switch must be in OFF position if disconnecting the passenger airbag deactivation (PAD) indicator electrical connector. Otherwise, a diagnostic trouble code (DTC) will be set in the restraints control module (RCM) memory and must be erased before releasing the vehicle.

Position the ignition switch in the OFF position.

3. Position the steering column to the full down position.

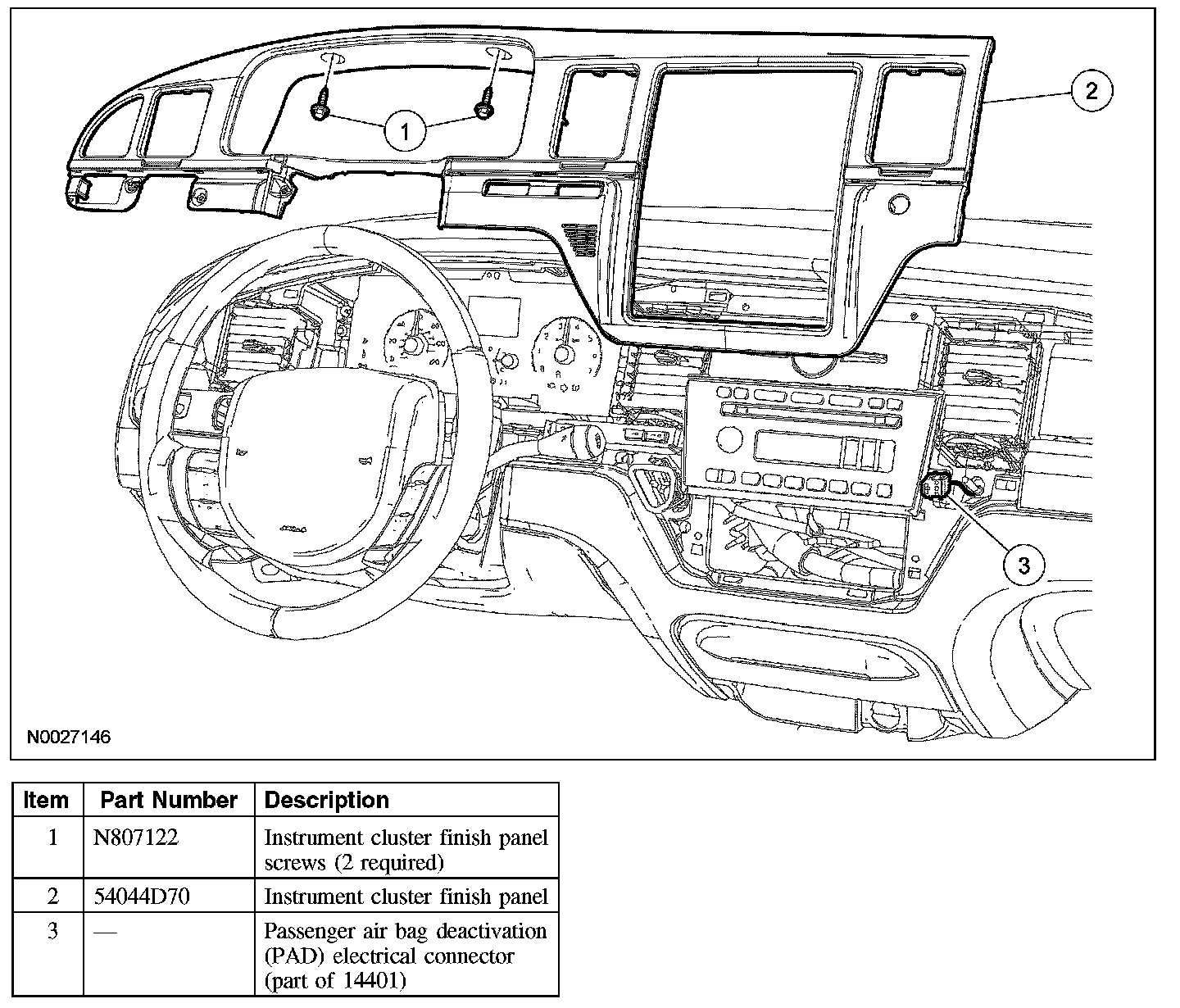

4. Remove the instrument cluster finish panel screws.
5. Release the retainers and position the instrument cluster finish panel aside.
6. Remove the instrument cluster finish panel and disconnect the electrical connector.
7. To install, reverse the removal procedure.
