Connectors

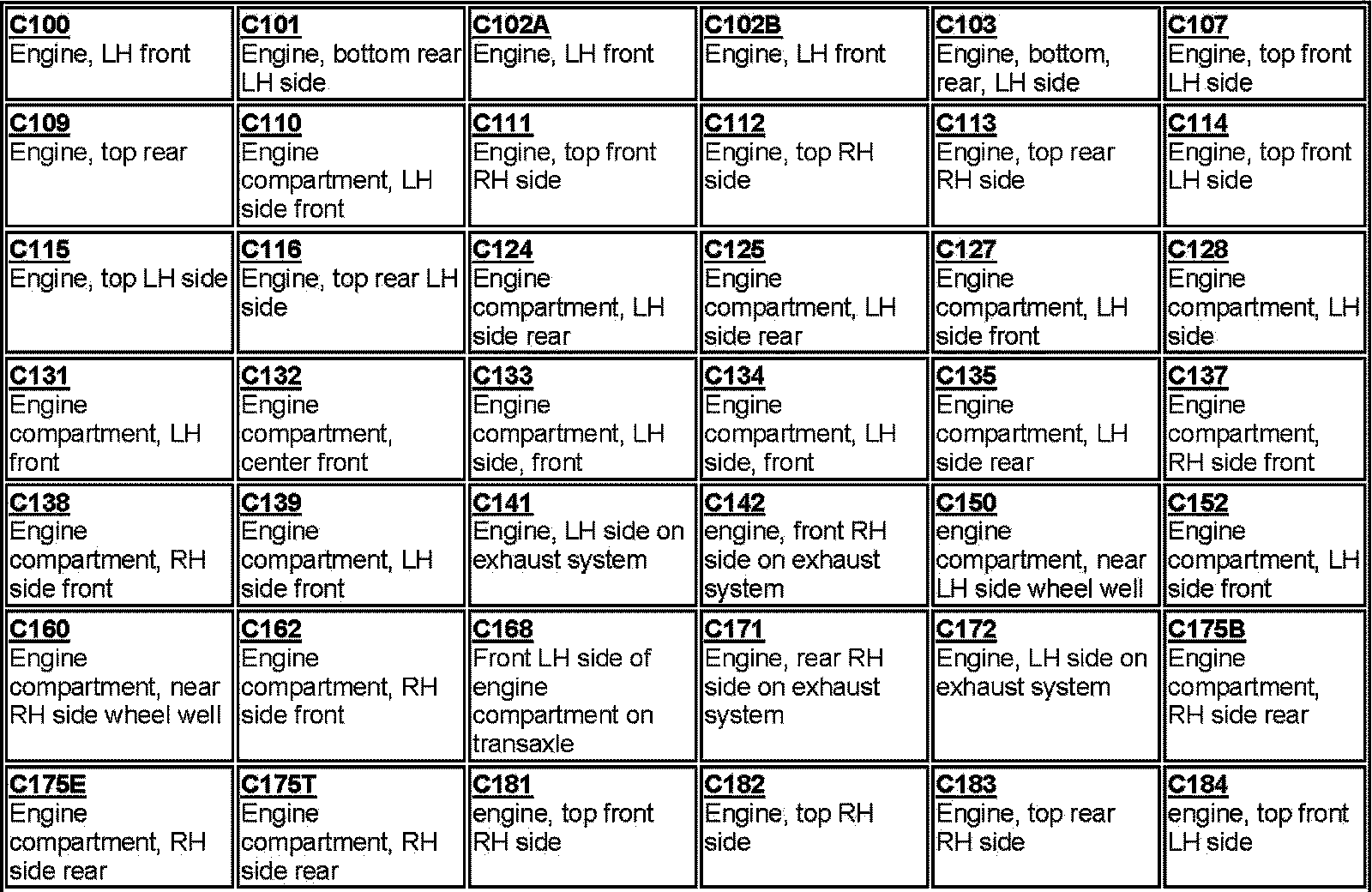

C100-C184:

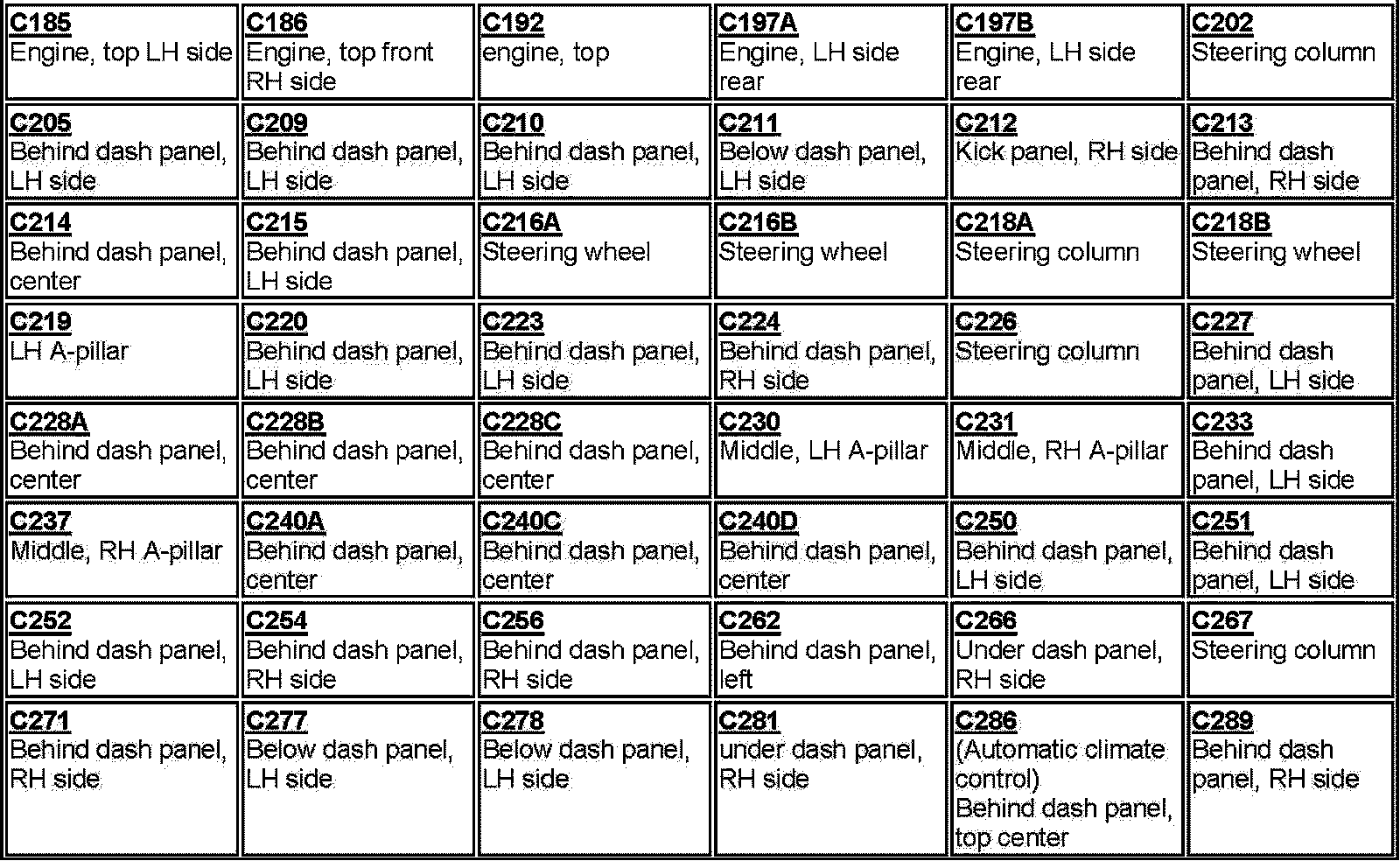

C185-C289:

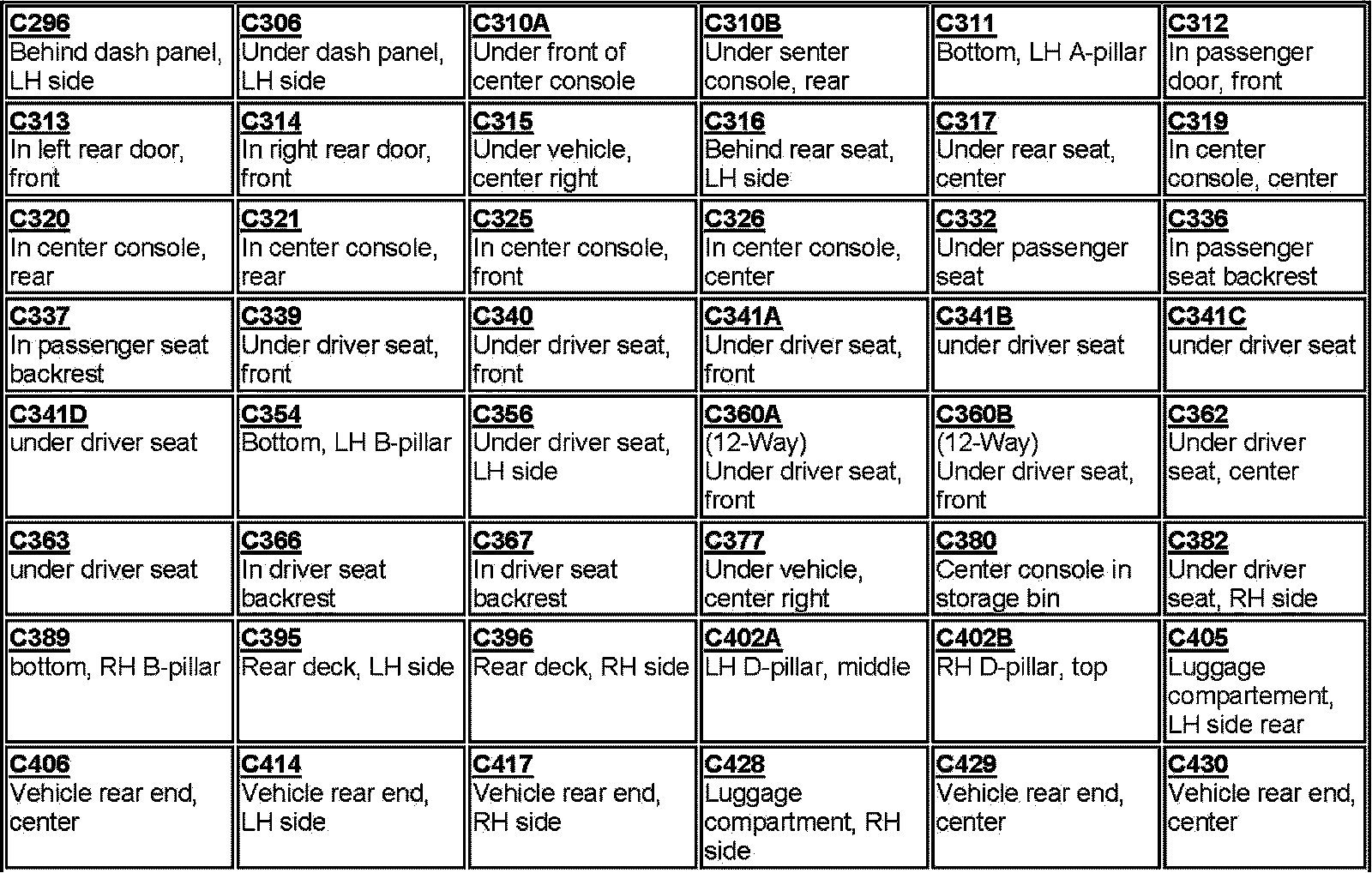

C296-C430:





C452-C803:





C804-C2123:

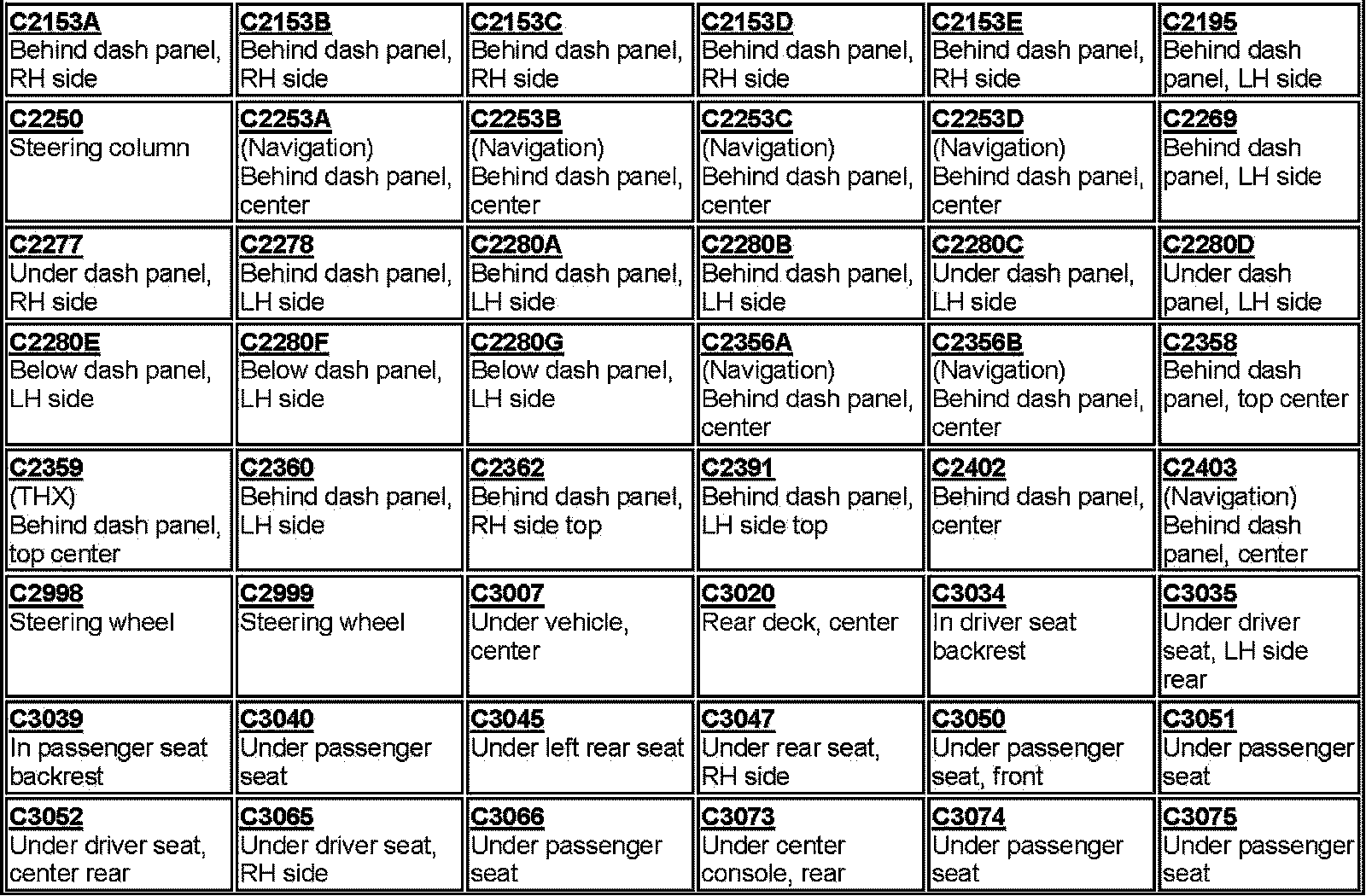

C2153A-C3075:

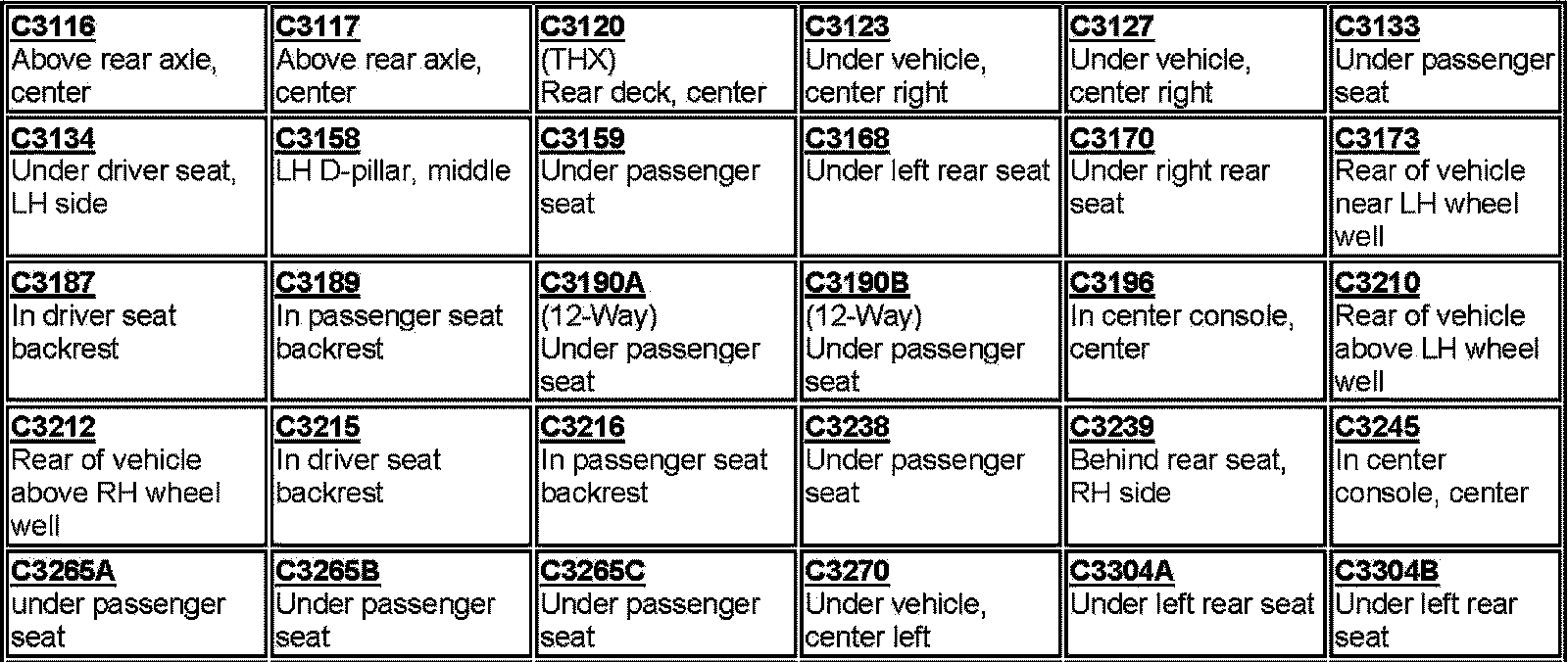

C3116-C3304B:

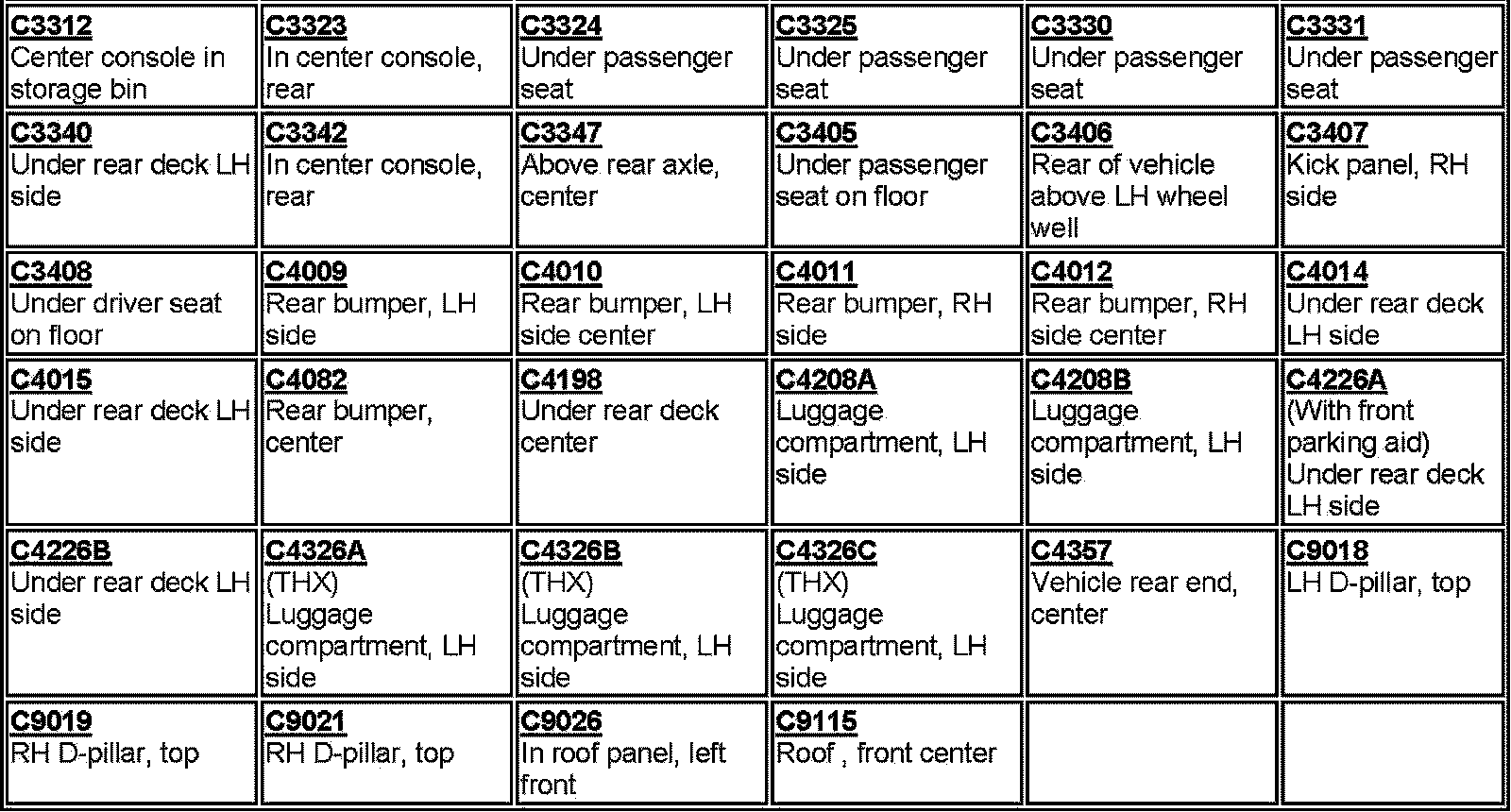

C3312-C9115:
