Cabin Air Filter / Purifier: Service and Repair

Cabin Air Filter









Removal and Installation

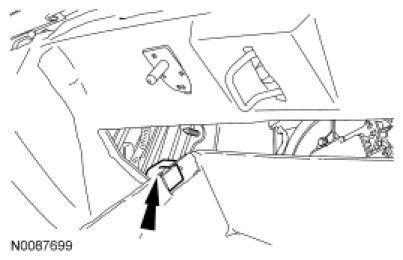

1. Remove the 2 glove compartment bumpers and lower the glove compartment.

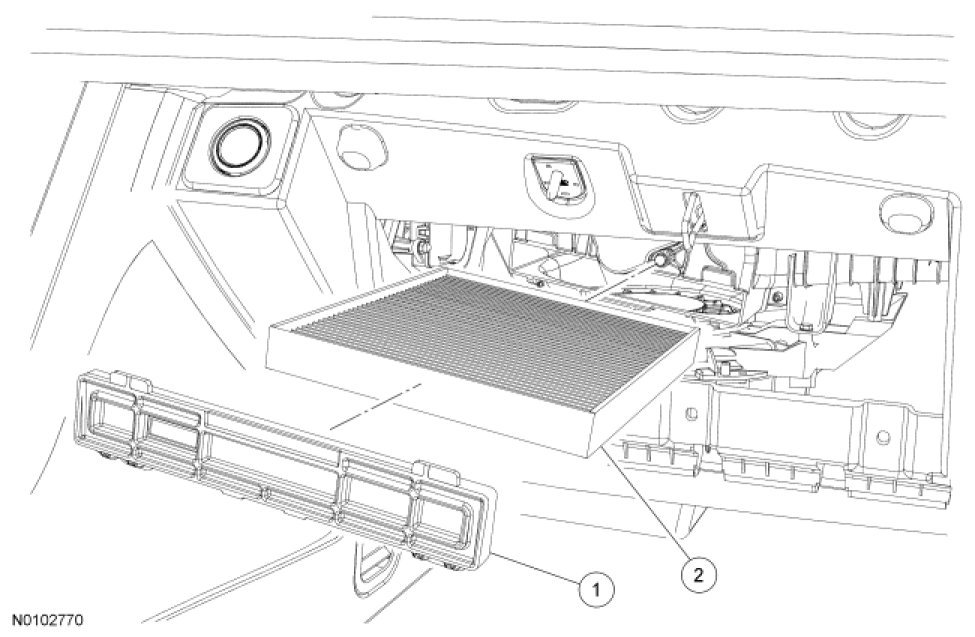

2. Remove the cabin air filter access door.

3. Remove the cabin air filter.

4. To install, reverse the removal procedure.
