Home >> Lincoln >> 2011 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor >> C4261 Wheel Speed Sensor, Left Rear (With Active Park Assist)

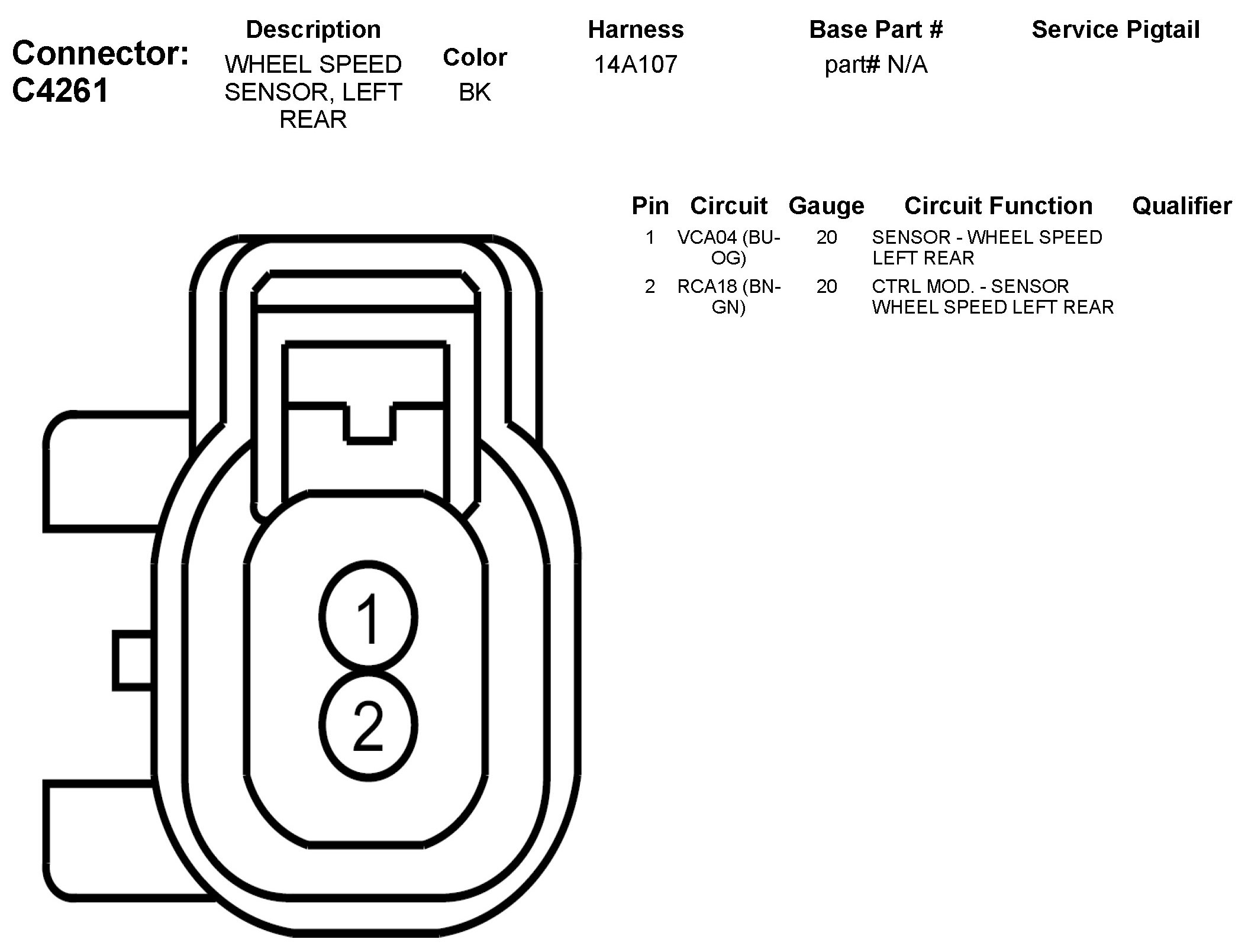

C4261 Wheel Speed Sensor, Left Rear (With Active Park Assist)
