Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2011
>>
MKZ FWD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Canister Purge Control Valve
>>

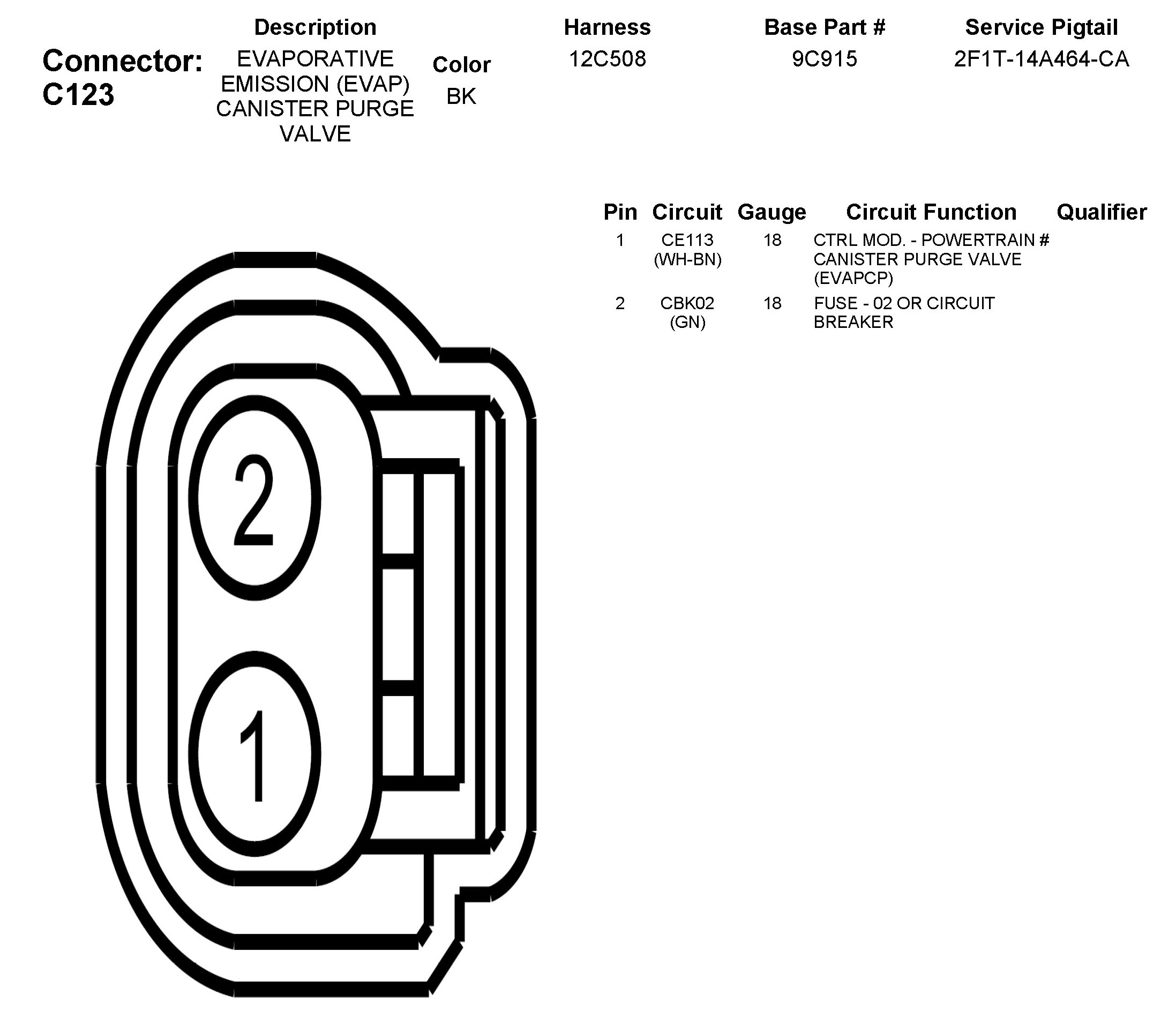

C123 Evaporative Emission (EVAP) Canister Purge Valve
C123 Evaporative Emission (EVAP) Canister Purge Valve
