Home >> Lincoln >> 2011 >> Town Car V8-4.6L Flex Fuel >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Locations

Instrument Cluster / Carrier: Locations

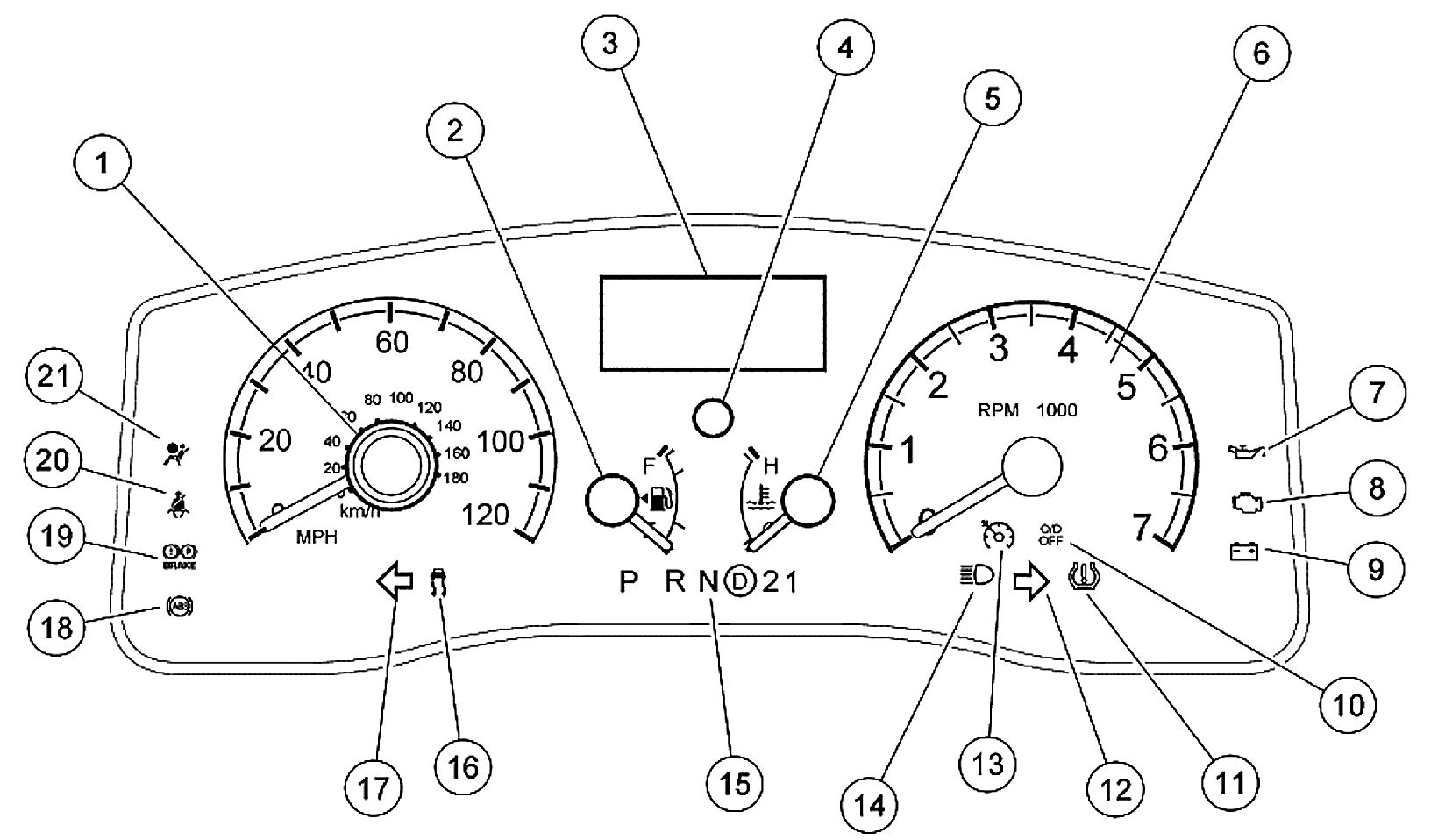

Instrument Cluster:

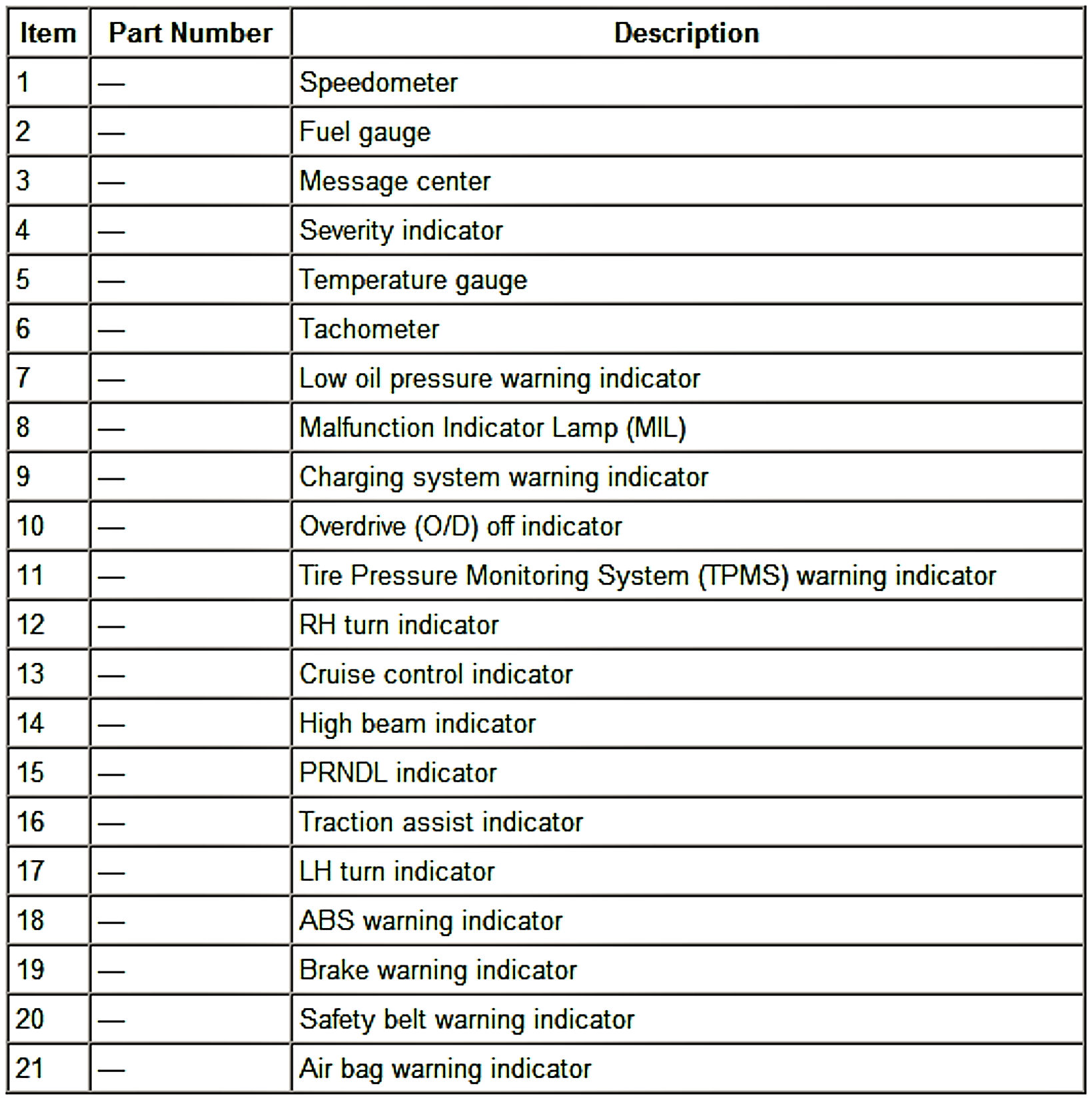

1 - 21:

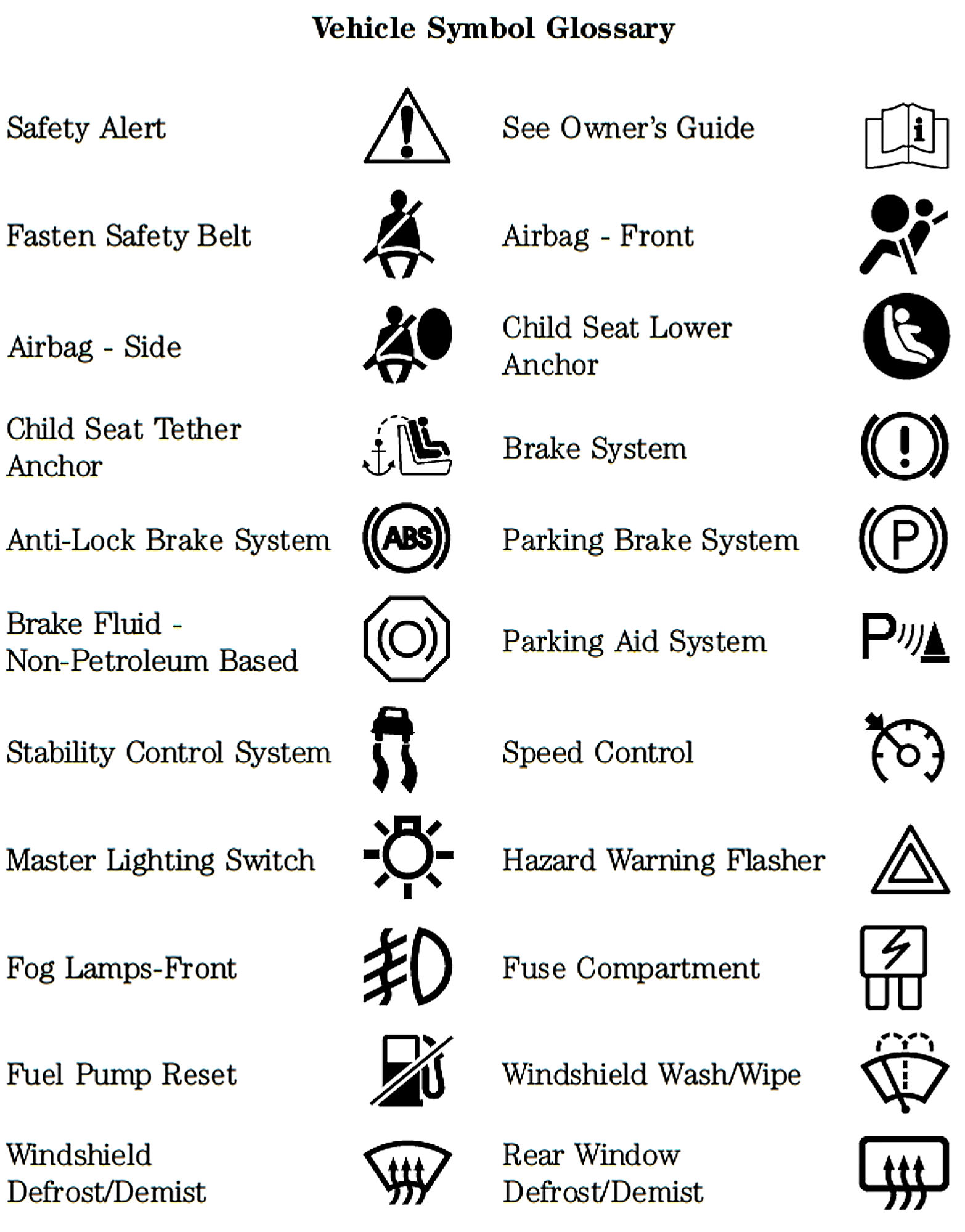

Vehicle Symbol Glossary 1:





Vehicle Symbol Glossary 2:





Instrument Cluster:
