Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2012
>>
MKS FWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
>>

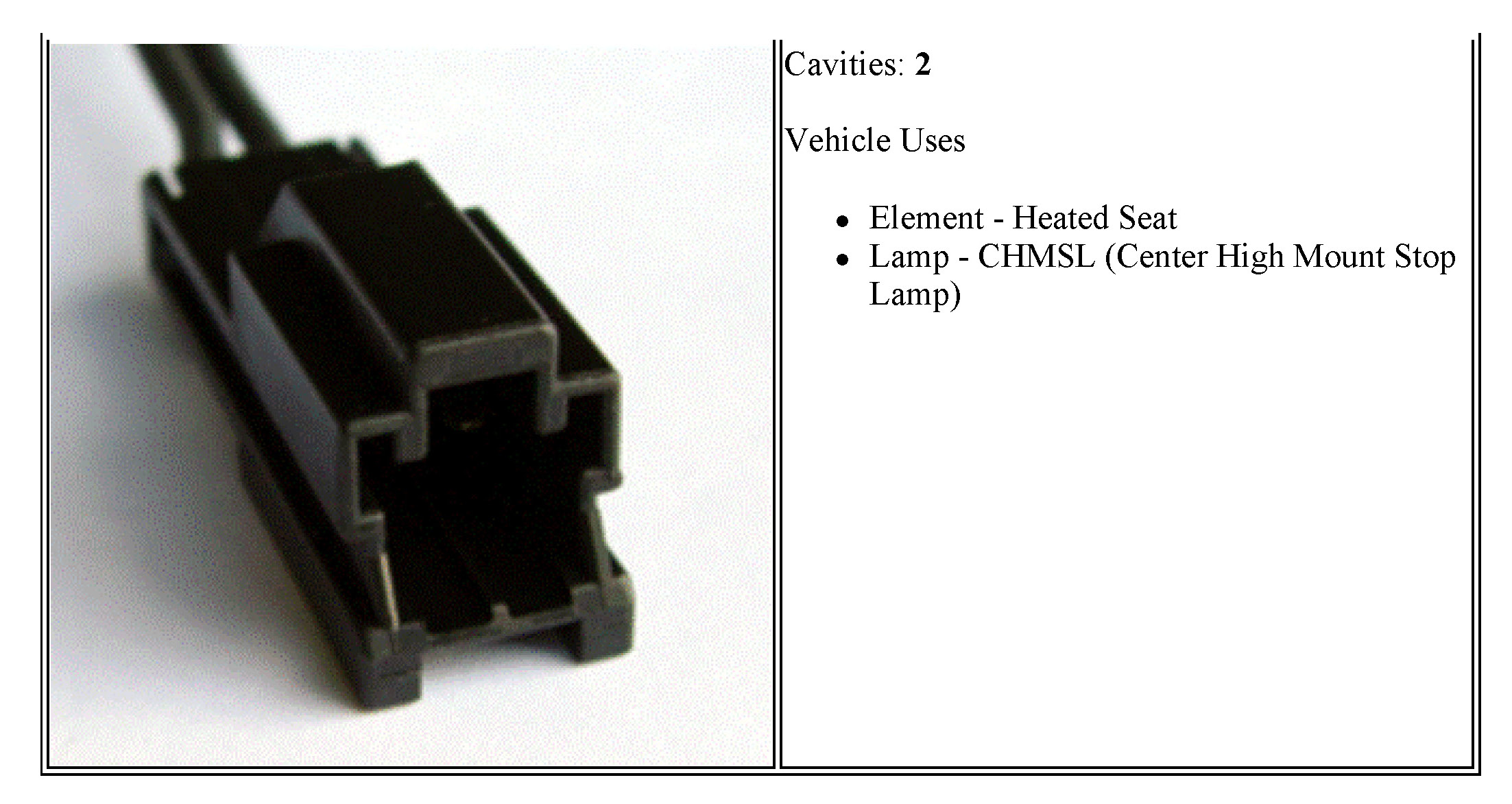

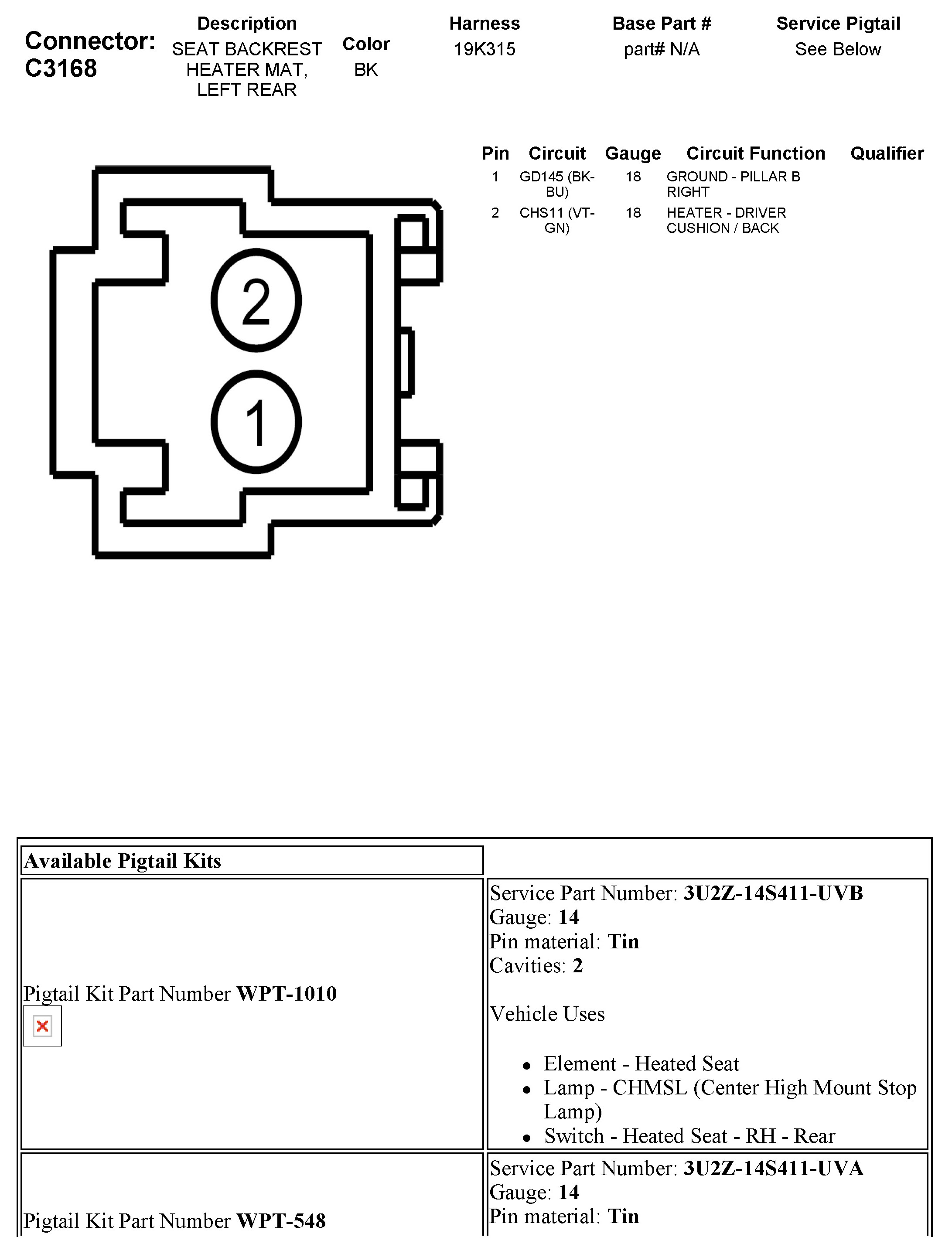

C3168 Seat Backrest Heater Mat, Left Rear
C3168 Seat Backrest Heater Mat, Left Rear
