Home >> Mazda Truck >> 2008 >> CX-7 AWD L4-2.3L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1194

C1194

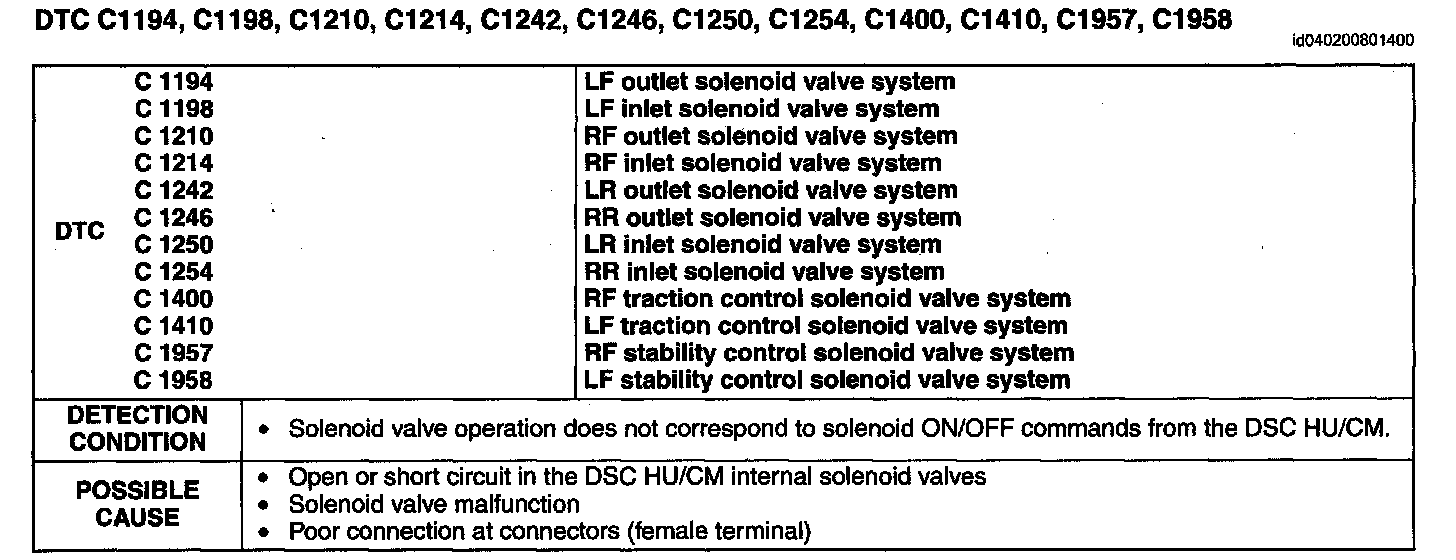

DTC C1194, C1198, C1210, C1214, C1242, C1246, C1250, C1254, C1400, C1410, C1957, C1958

C1194 / C1198 / C1210 / C1214 / C1242 / C1246 / C1250 / C1254 / C1400 / C1410 / C1957 / C1958:





Diagnostic procedure

Step 1-Step 3:
