C1306

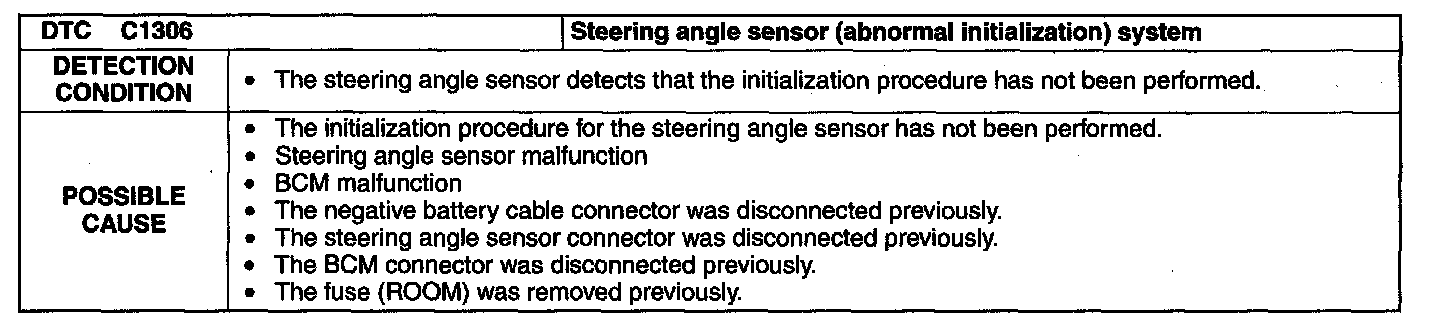

DTC C1306

Note
^ The steering angle initialization value of the BCM is stored using the battery power supply Therefore, the battery power supply of the BCM is cut and the stored steering angle initialization value is cleared when any of the following items are performed. DTC C1306 is stored in the memory
- Negative battery cable disconnection
- BCM connector disconnection
- Fuse (ROOM) removal
- Wiring harness disconnection between battery and steering angle sensor connector
- Wiring harness disconnection between battery, BCM connector, steering angle sensor connector

C1306:

Diagnostic procedure

Step 1-Step 4:
