A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
On-Board Diagnostic [IMMOBILIZER SYSTEM (ADVANCED KEYLESS SYSTEM)]
On-Board Diagnostic [IMMOBILIZER SYSTEM (ADVANCED KEYLESS SYSTEM)]

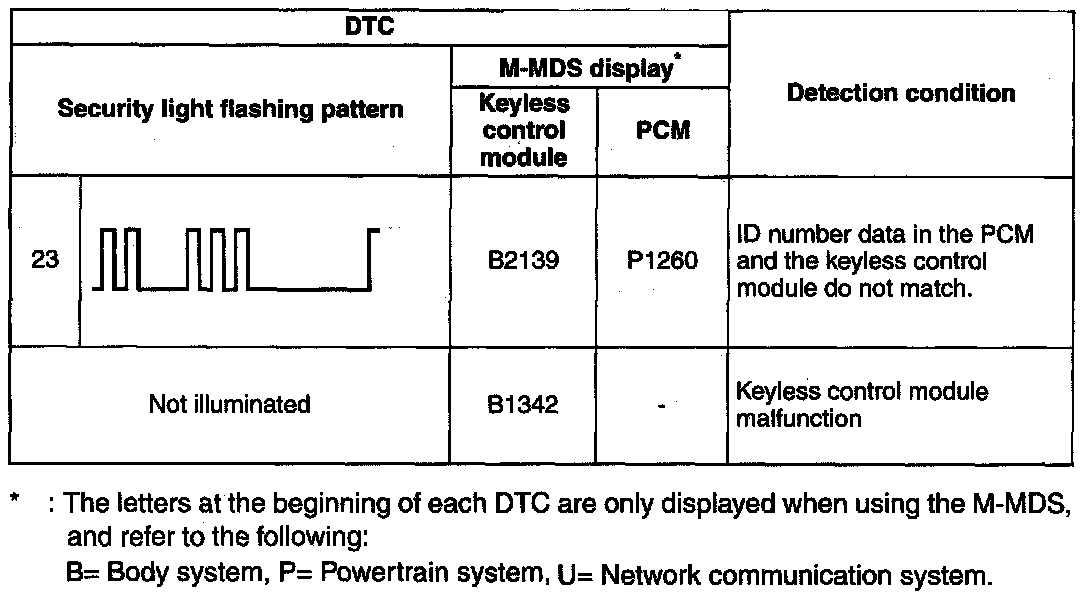

B1342-U2023:

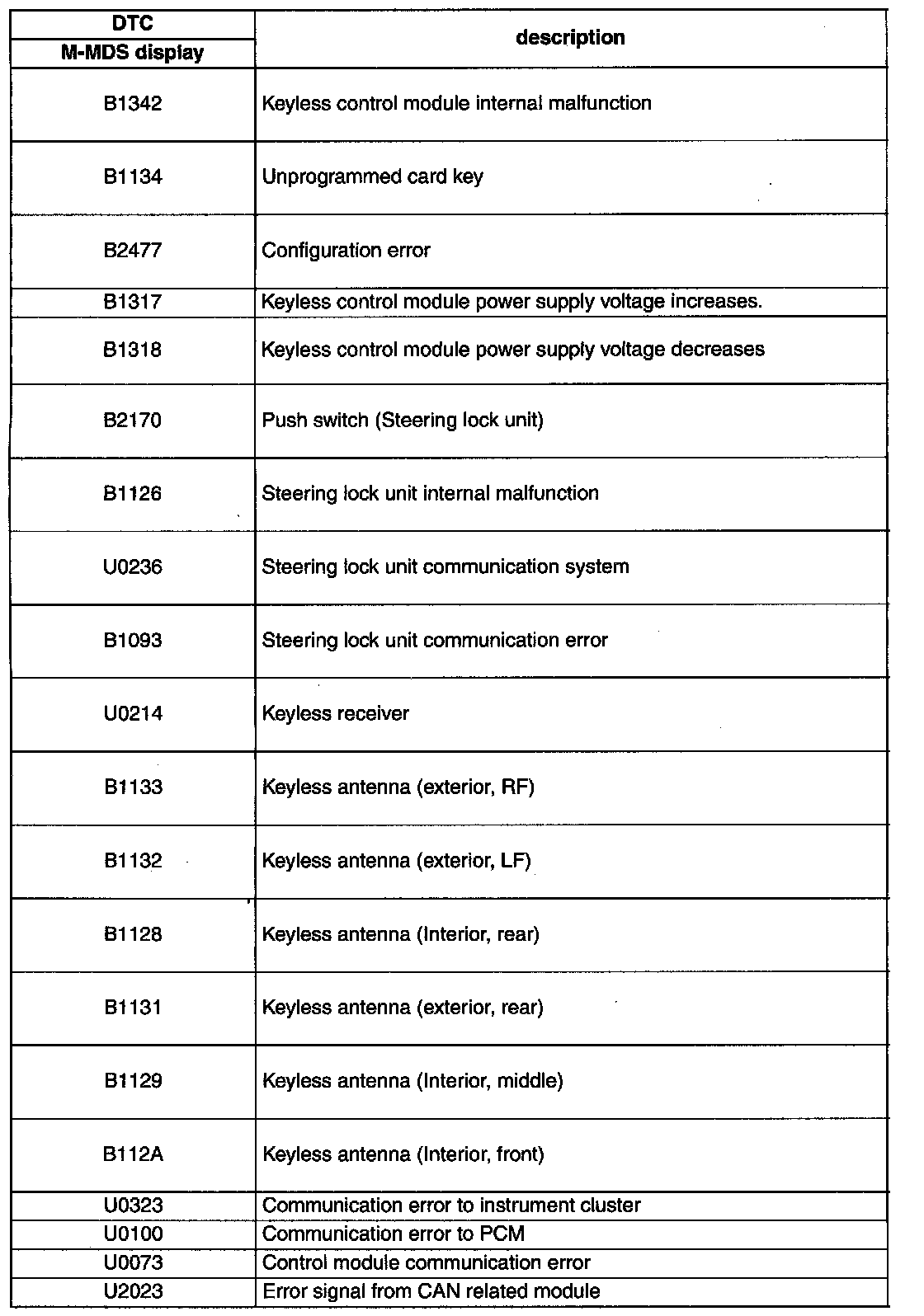

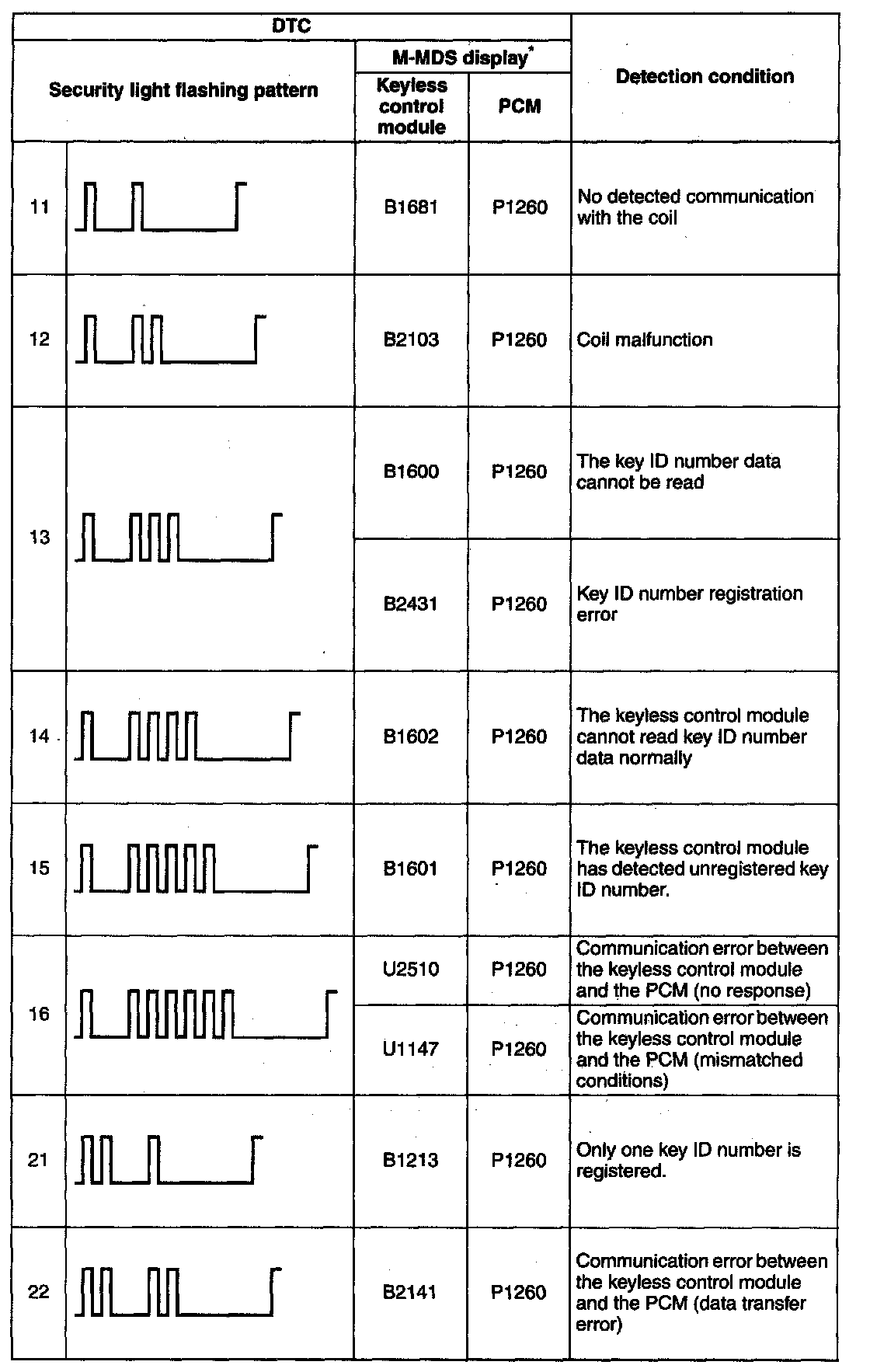

DTC Table(Immobilizer System(Advanced Keyless And Start System)):
