Auxiliary Step / Running Board: Service and Repair
SIDE STEP MOLDING REMOVAL/INSTALLATIONRemoval
1. Remove the fastener.
2. Pull the side step molding front and remove clip A from the vehicle body.
3. Slide the side step molding front to the vehicle front and remove clip B from the side step molding front.
4. Remove the side step molding front.
5. Remove clips B from the body, then install it to the side step molding front.

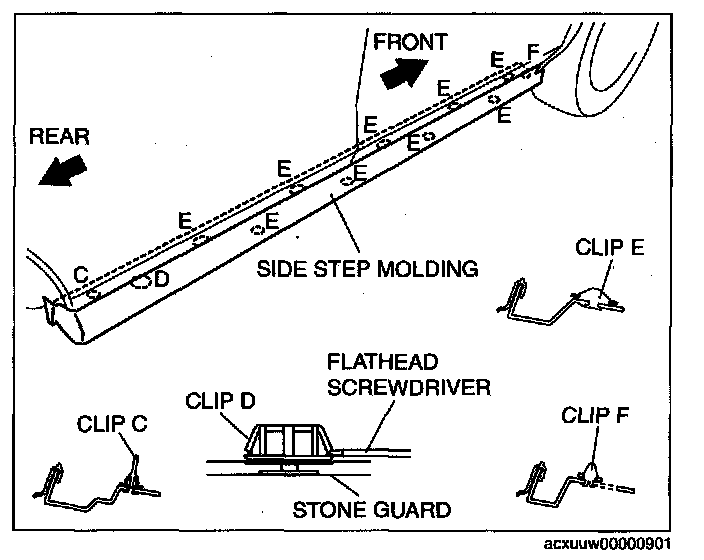

6. Pull the side step molding front and remove clip C and F from the vehicle body.
7. Detach clip D using a tape-wrapped flathead screwdriver as shown in the figure.
8. Slide the side step molding to the vehicle rear and remove clips E from the side step molding.
9. Remove the side step molding.
10. Remove clips E from the body, then install it to the side step molding.

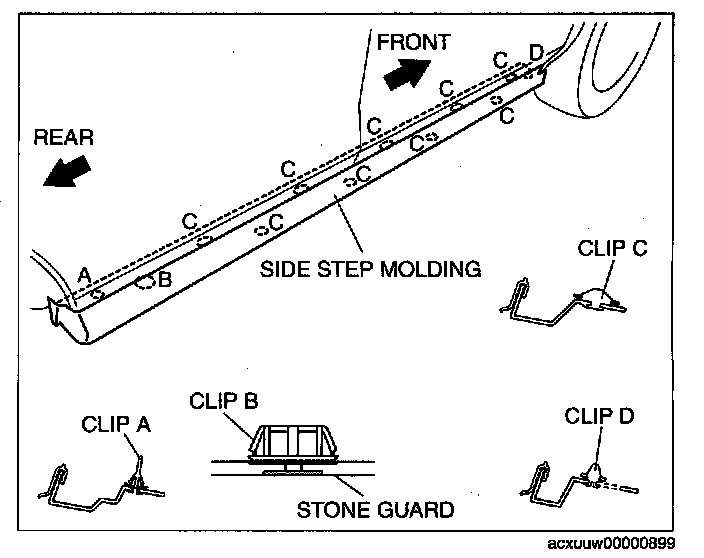

Installation
1. Install the clip A, D
2. Install the clip B.
3. Install the clips C.
4. Install the side step molding.
5. Install the fastener.
6. Install the clip F
7. Install the clip E.
8. Install the front side step molding.
