Air Duct: Service and Repair

REAR HEAT DUCT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Front seat
2. Car-navigation unit (With car-navigation system)
3. Front scuff plate inner
4. Front side trim
5. Console panel
6. Console

3. Turn over the floor covering.

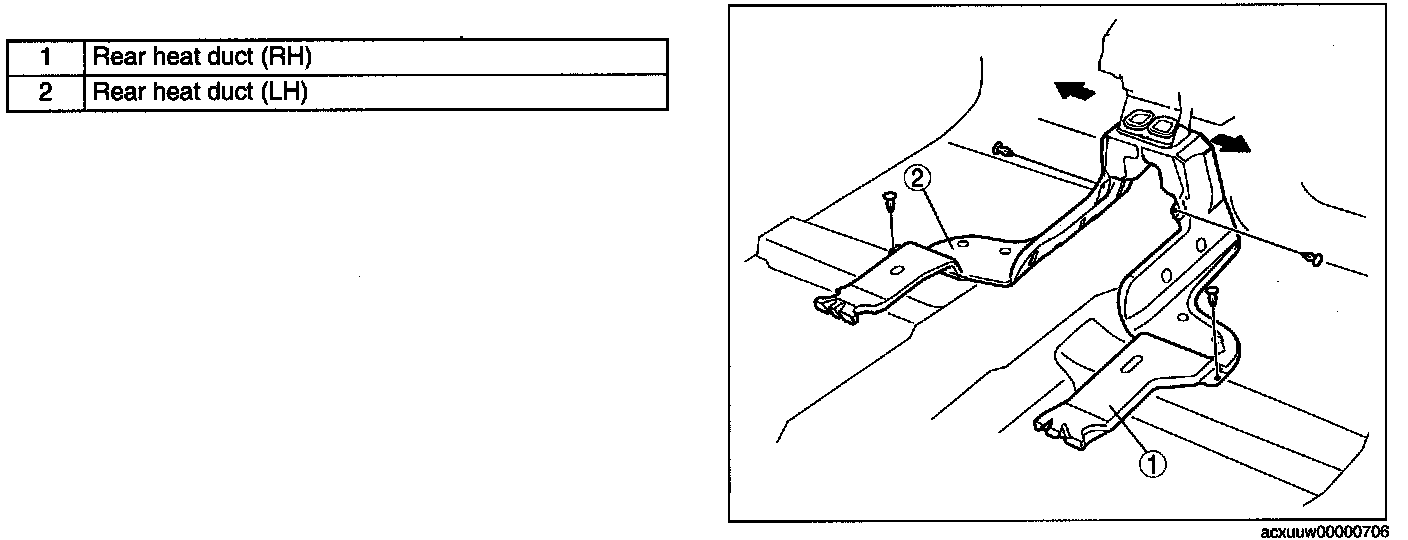

4. Remove in the order indicated in the table.






5. Install in the reverse order of removal.
