Windshield Washer Reservoir: Service and Repair

WASHER TANK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

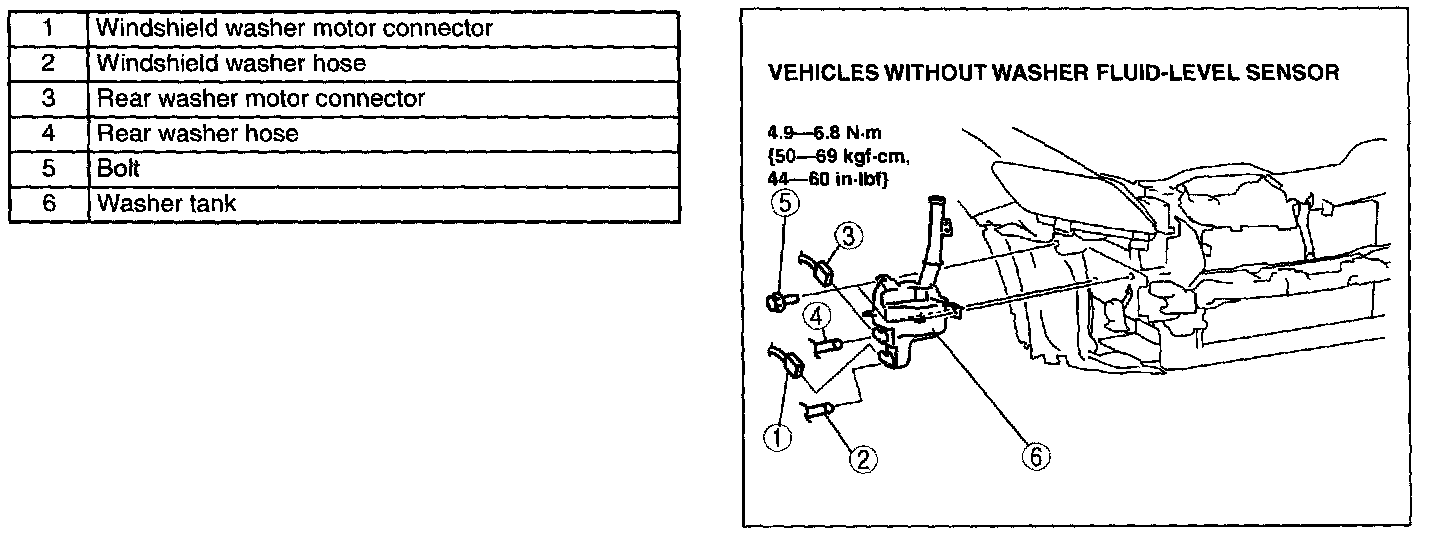

2. Remove the mudguard (RH). (Vehicles without washer fluid-level sensor)

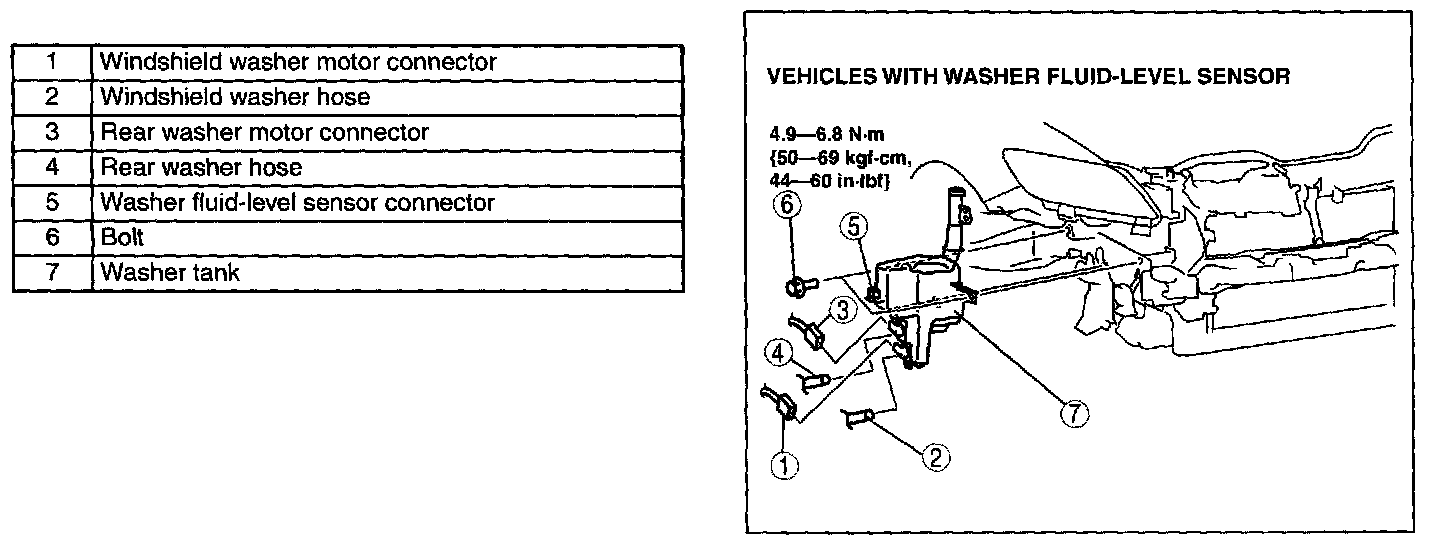

3. Remove the front bumper. (Vehicles with washer fluid-level sensor)







4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
