Supplier Identification Procedure [Audio (Standard Audio)]

SUPPLIER IDENTIFICATION PROCEDURE [AUDIO (STANDARD AUDIO)]

NOTE:
- The supplier can vary with the module. When asking the supplier (service center) for repair or replacement, identify the supplier and fill in the Audio Repair Order Form with the following procedures.

Identification Using the Label or Inscribed Lettering

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate inner Front Scuff Plate Removal/Installation

b. Front side trim Front Side Trim Removal/Installation

c. Console panel Console Panel Removal/Installation

d. Console Console Removal/Installation

e. Hood release lever Service and Repair

f. Lower panel Lower Panel Removal/Installation

g. Center panel Center Panel Removal/Installation

h. Audio unit Audio Unit Removal/Installation

3. Verify the supplier by referring to the label attached to each unit.

Identification Using the On-board Diagnostic Test Mode

1. Turn the ignition switch to the ACC or ON position.

2. Turn the audio unit power to ON.

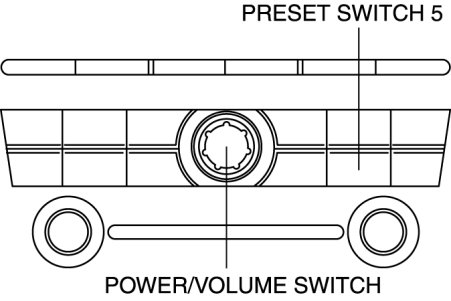

3. While pressing the POWER/VOLUME switch, simultaneously press the Preset switch 5 for 3 s or more.

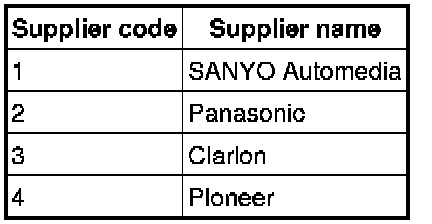

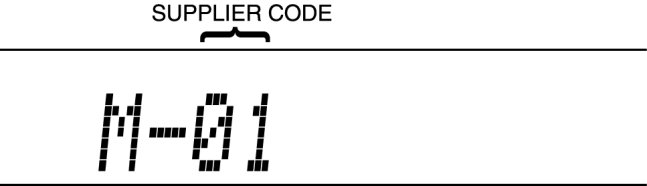

4. Identify the supplier code by referring to the information display.










NOTE:

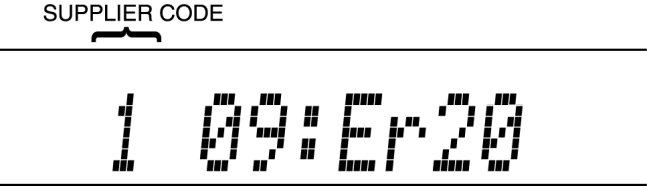

- The supplier code can also be identified from the DTC displays screen.






5. Cancel the diagnostic assist function by either turning OFF the audio unit power or by ignition to the switched OFF
