Pinout Values and Diagnostic Parameters
ON-BOARD DIAGNOSIS
PID/DATA Monitor Table

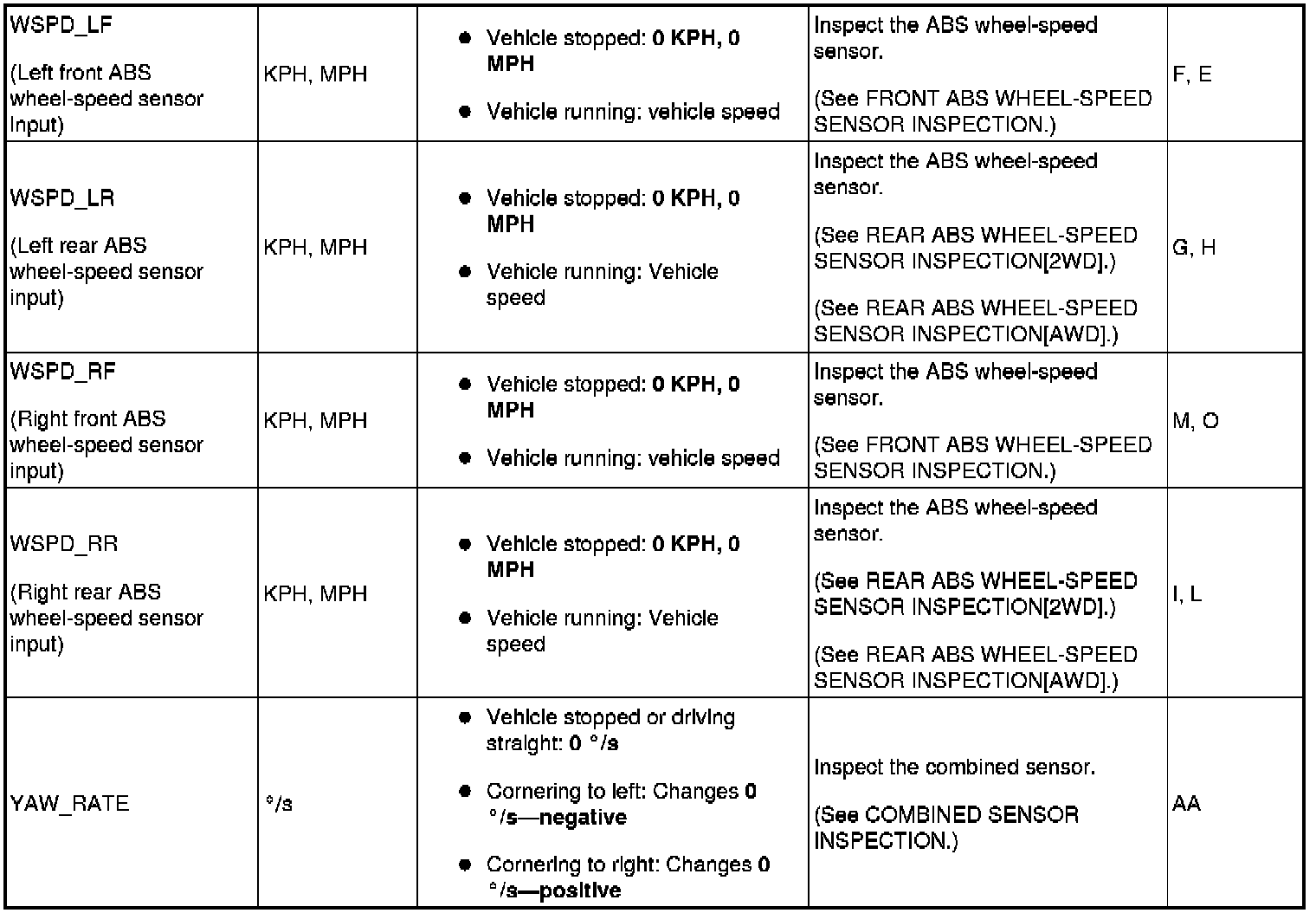

PID/DATA Monitor Table (Part 1):

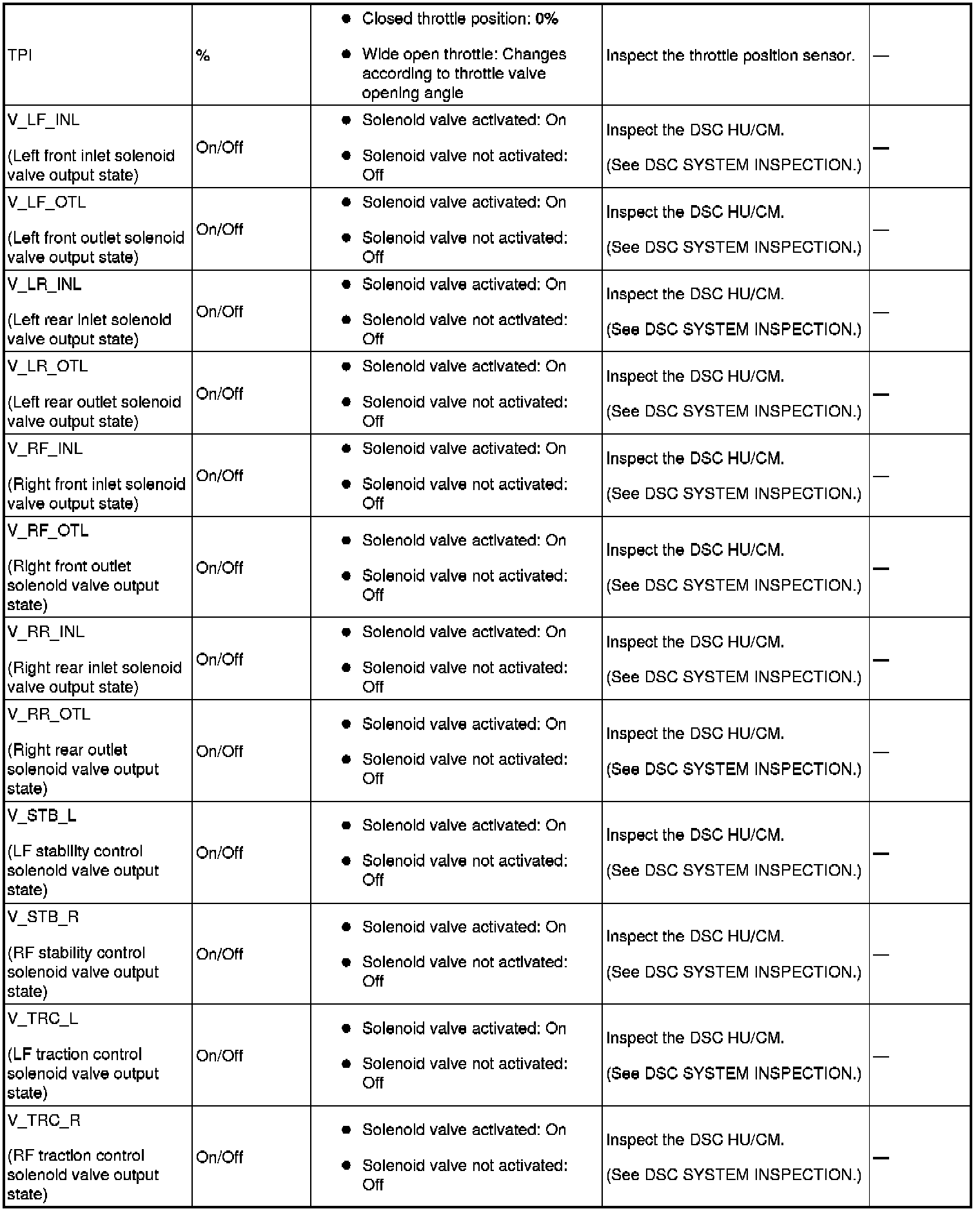

PID/DATA Monitor Table (Part 2):
PID/DATA Monitor Table (Part 3):
